Overview

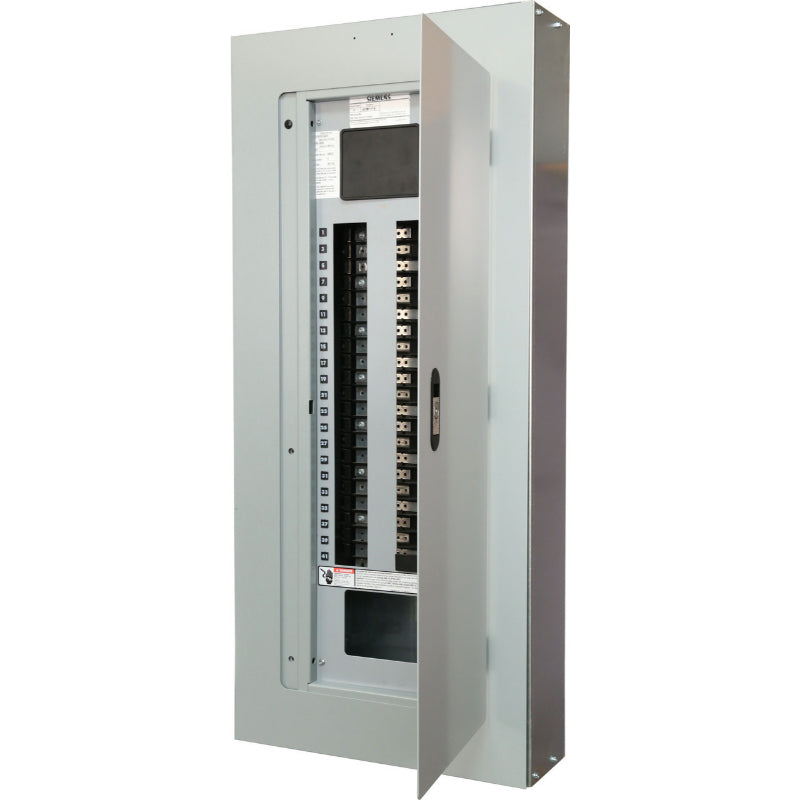

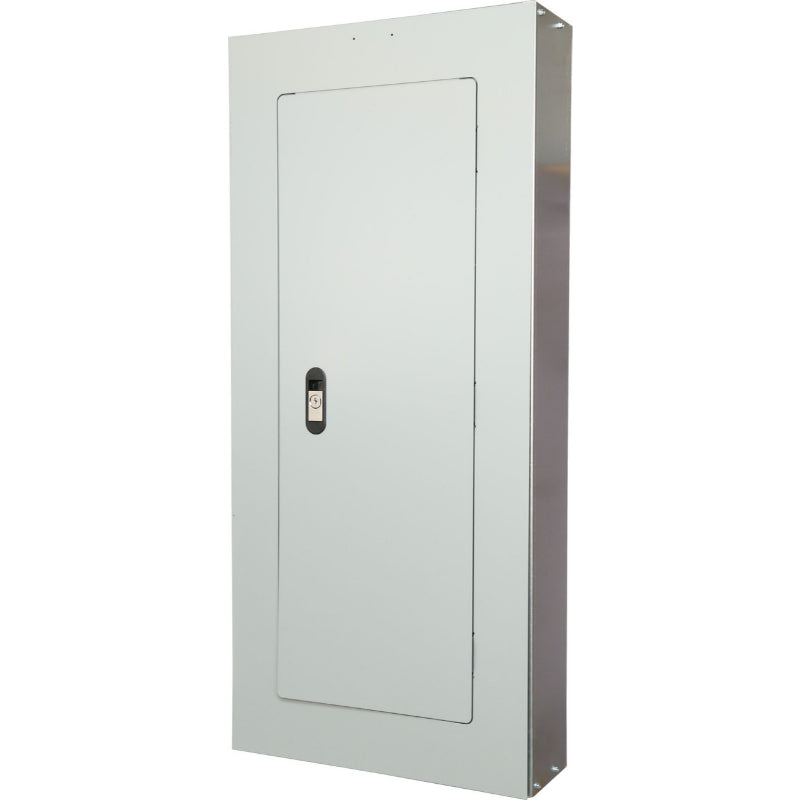

The Siemens P1E42FX250ATST is a 250A, 42-circuit P1 panelboard for 480Y/277V, 3-phase electrical distribution. This main-breaker configuration features a field-reversible interior that accommodates either top-feed or bottom-feed installation. Refer to the specifications for the listed enclosure, bus material, and included components.

Specifications

BrandSiemens
Product TypePanelboard
Voltage Rating480Y/277 V
Current Rating250 A
Phase3-Phase
Number of Wires4
Number of Circuits42
Cover Attachment StyleHinge
Cover Closure MethodScrew; Latch
NEMA RatingNEMA 1
Enclosure MaterialSteel
Bus Bar MaterialTin Plated Aluminum
ColorLight Gray
FinishGalvanized
Depth5.75 in
Width20 in
Wire Size6 AWG to 350 kcmil
Panel TypeP1
Mounting TypeSurface
Terminal TypeScrew
IncludesP1E42MC250AT Interior Bus Unit; B44 Indoor Enclosure/Can 44 in; S44B Door/Cover; MBKFD3250A Main Breaker
CertificationsNEC: 2020; NEMA PB 1; ANSI/NEMA PB1.1; UL Listed; NFPA 70 Compliant; OSHPD Rated
Weight115 lb
Feed OrientationTop or Bottom (Field-Reversible Interior)
