P1E42ML250ATST Siemens P1 250A 480Y/277V 3-Phase 42-Circuit MLO Panelboard
P1E42ML250ATST Siemens P1 250A 480Y/277V 3-Phase 42-Circuit MLO Panelboard
Couldn't load pickup availability
Overview

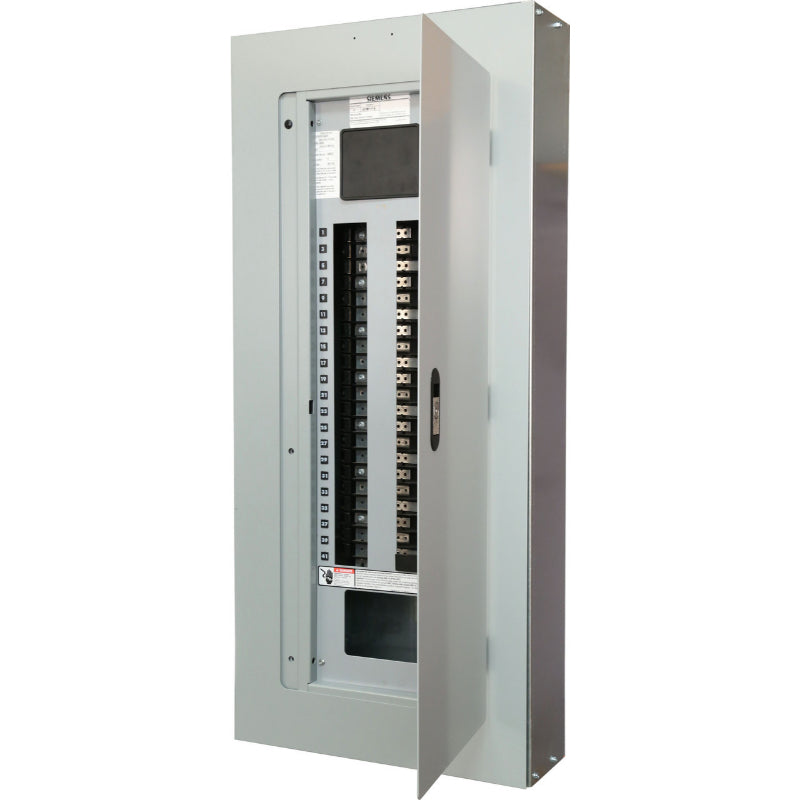

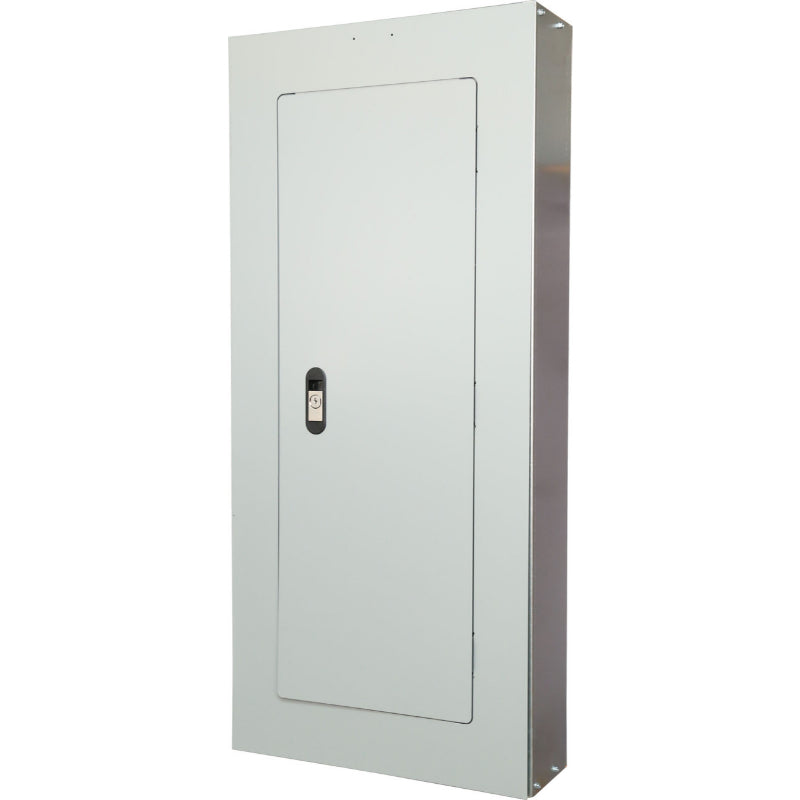

The Siemens P1E42ML250ATST is a 250 A, 42-circuit P1 main-lug panelboard for 480Y/277 V three-phase distribution. The assembly includes a surface-mounted Type 1 enclosure, trim, and a field-reversible interior for top or bottom feed.
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Panelboard |
| Voltage Rating | 480Y/277 V |
| Current Rating | 250 A |
| Phase | 3-Phase |
| Number of Wires | 4 |
| Number of Circuits | 42 |
| Main Configuration | Main Lug Only (MLO) |
| Feed Orientation | Top or Bottom (Field-Reversible Interior) |
| Cover Attachment Style | Hinge |
| Cover Closure Method | Screw; Latch |
| NEMA Rating | NEMA 1 |
| Enclosure Material | Steel |
| Enclosure Steel Gauge | 16-gauge (17-gauge endwalls) |
| Trim Steel Gauge | 14-gauge |
| Bus Bar Material | Tin Plated Aluminum |
| Color | Light Gray |
| Finish | Galvanized |
| Wire Size | 6 AWG to 350 kcmil |
| Panel Type | P1 |
| Mounting Type | Surface |
| Terminal Type | Screw |
| Includes | P1E42MC250AT Interior Bus Unit; B44 Indoor Enclosure/Can 44 in; S44B Door/Cover; MLKA3A Main Lug Kit |
| Certifications | NEC: 2020; NEMA PB 1; ANSI/NEMA PB1.1; UL Listed; NFPA 70 Compliant; OSHPD Rated |
| Manufacturer Part Number | P1E42ML250ATST |
| Dimensions | 44 × 20 × 5.75 in |
