P1E54JX400ATST Siemens P1 400A 480Y/277V 3-Phase 54-Circuit Panelboard with Main Breaker
P1E54JX400ATST Siemens P1 400A 480Y/277V 3-Phase 54-Circuit Panelboard with Main Breaker
Couldn't load pickup availability
Overview

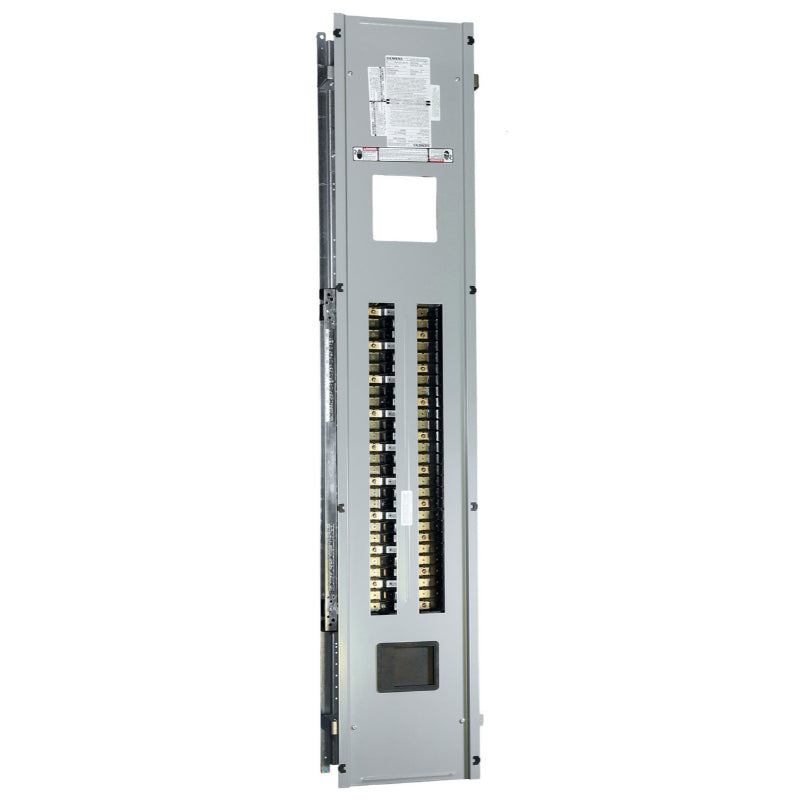

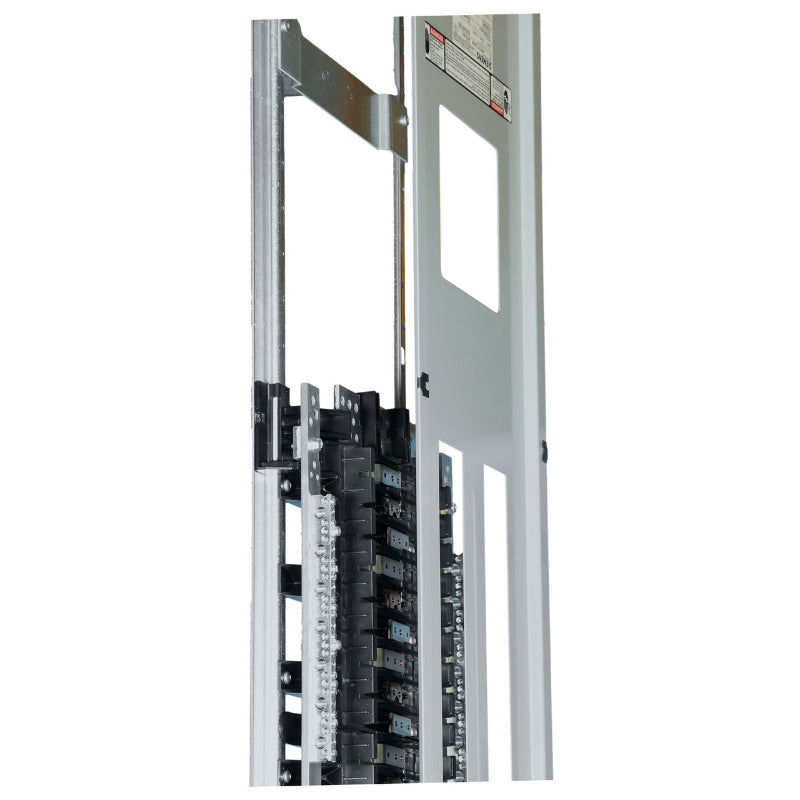

The Siemens P1E54JX400ATST is a 400A, 54-circuit P1 panelboard for 480Y/277V, 3-phase electrical distribution. This main-breaker configuration features a field-reversible interior that accommodates either top-feed or bottom-feed installation. Refer to the specifications for the listed enclosure, bus material, and included components.
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Panelboard |
| Voltage Rating | 480Y/277 V |
| Current Rating | 400 A |
| Phase | 3-Phase |
| Number of Wires | 4 |
| Number of Circuits | 54 |

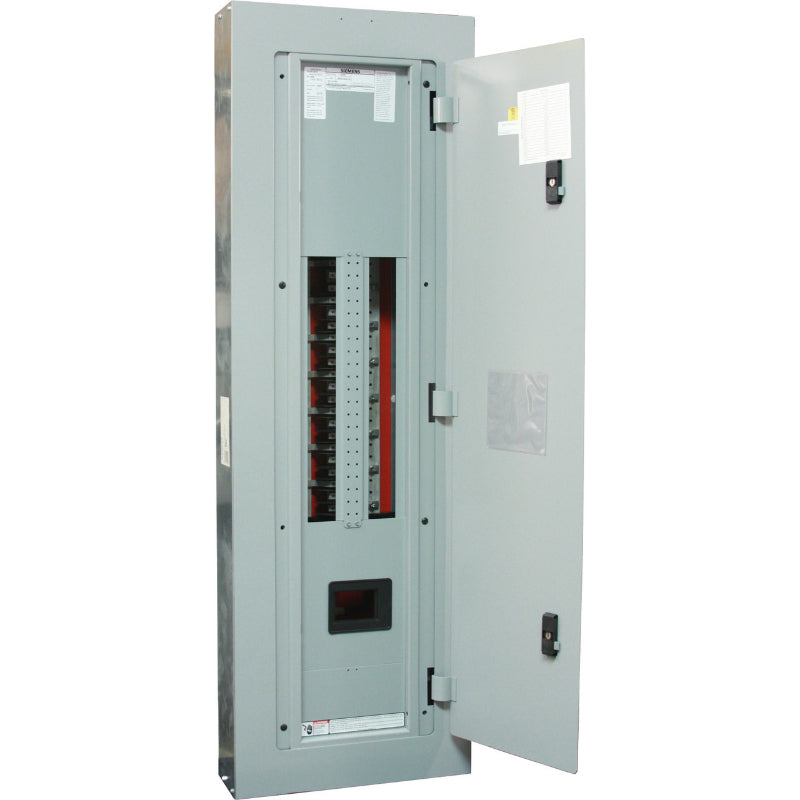

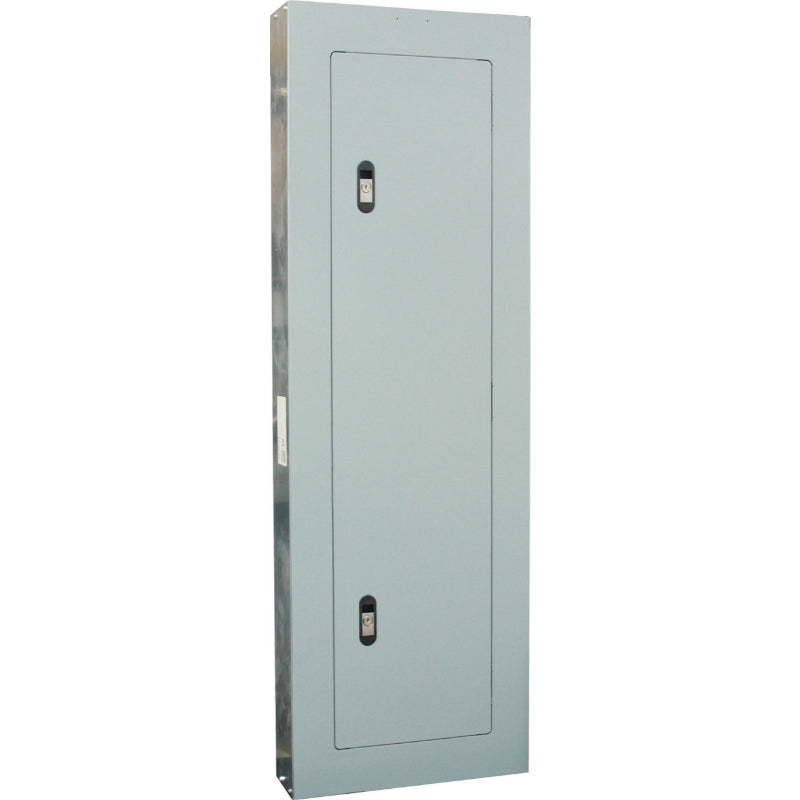

| Cover Attachment Style | Hinge |
| Cover Closure Method | Screw; Latch |
| NEMA Rating | NEMA 1 |
| Enclosure Material | Steel |
| Bus Bar Material | Tin Plated Aluminum |
| Color | Light Gray |
| Finish | Galvanized |
| Depth | 5.75 in |
| Width | 20 in |
| Height | 77 in |
| Wire Size | 1/0 AWG to 250 kcmil; 2 AWG to 600 kcmil |
| Panel Type | P1 |
| Mounting Type | Surface |
| Terminal Type | Screw |

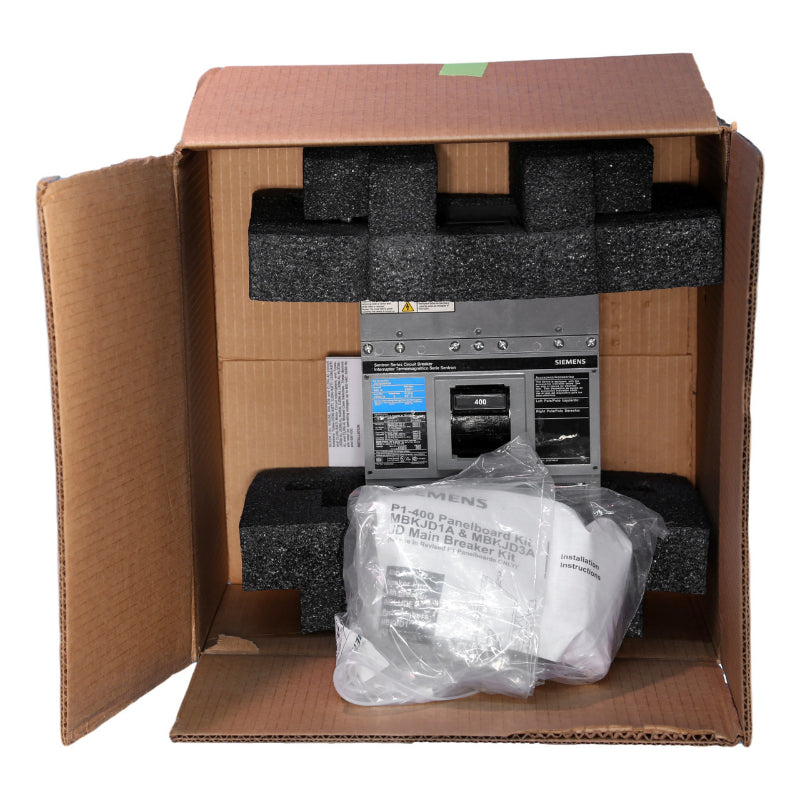

| Includes | JXD63B400 Breaker; 74 in Can; Cover/Door |
| Certifications | NEC: 2020; NEMA PB 1; ANSI/NEMA PB1.1; UL Listed; NFPA 70 Compliant; OSHPD Rated |
| Weight | 188 lb |
| Feed Orientation | Top or Bottom (Field-Reversible Interior) |
