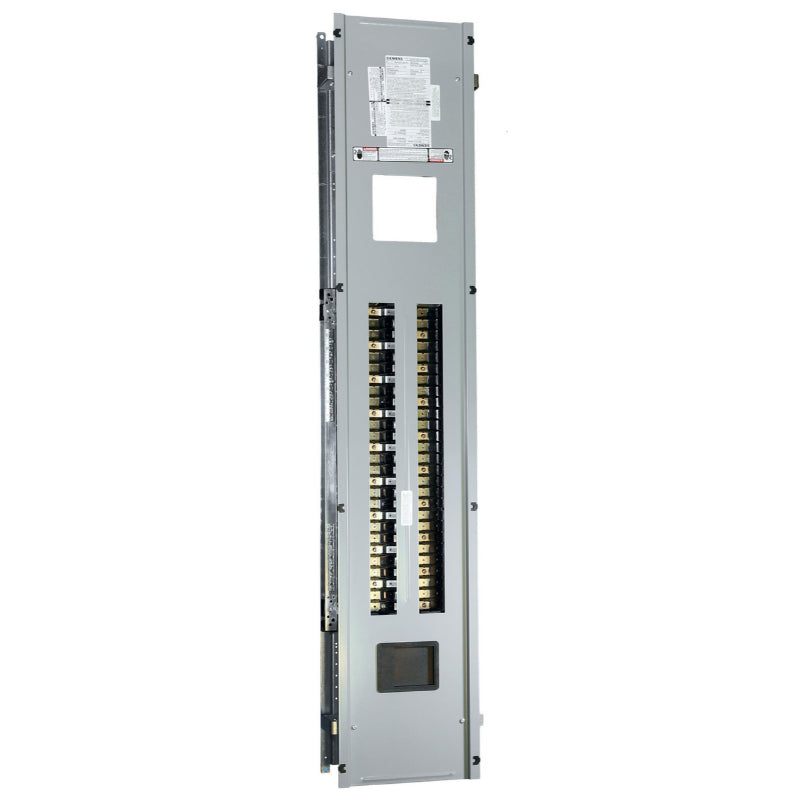

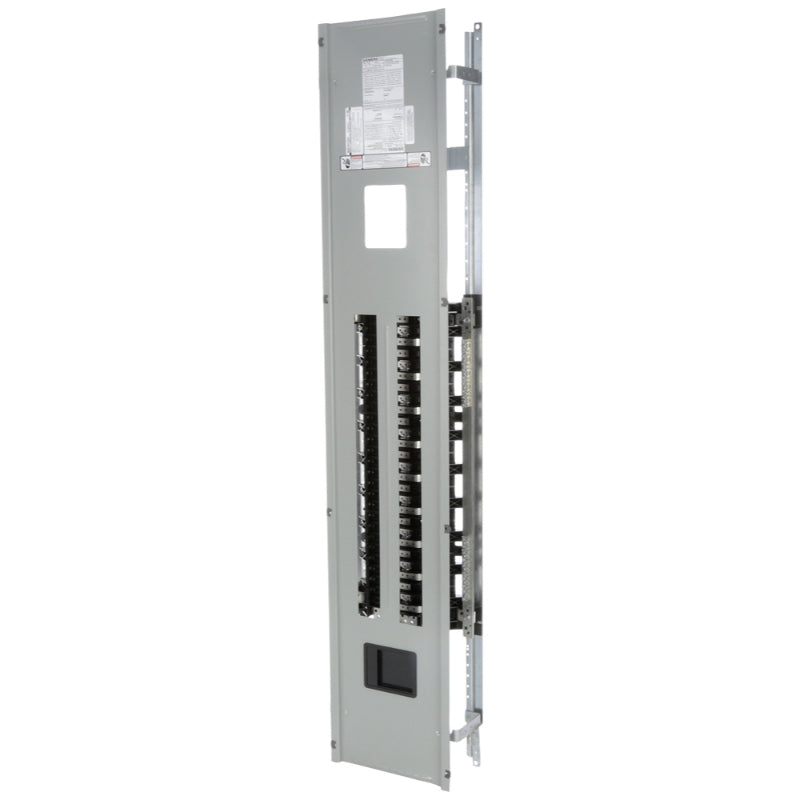

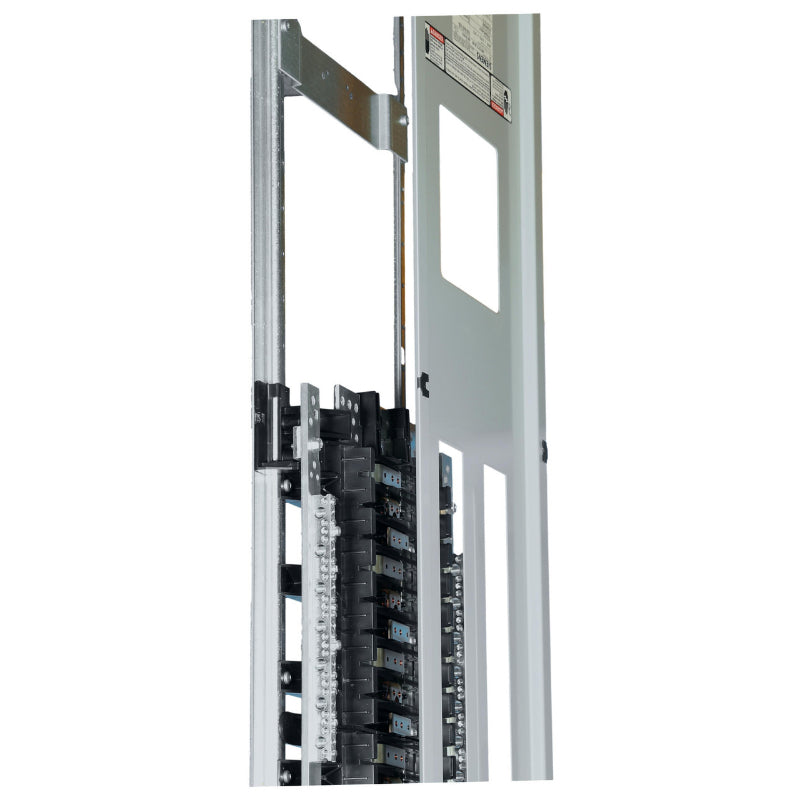

P1E54MC400AT Siemens RP1 400A 480Y/277V 3-Phase 54-Circuit Unassembled Lighting Panelboard
P1E54MC400AT Siemens RP1 400A 480Y/277V 3-Phase 54-Circuit Unassembled Lighting Panelboard
Couldn't load pickup availability
Overview
Siemens low voltage RP1 unassembled lighting panel. Dimensions (H x W x D) in: 74.0 x 20.0 x 5.75. 3-phase 4-wire allows 54 circuits user selects main device (lug/breaker). Rated 480Y/277V (400A). For proper enclosure use B74 can & S74B cover
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Unassembled Lighting Panel |
| Voltage Rating | 480/277 V |
| Current Rating | 400 A |
| Phase | Three |
| Number of Wires | 4 |
| Material | Aluminum (BUS) |
| Color | Gray |
| Depth | 5.75 in |
| Width | 20 in |
| Height | 74 in |
| For Use With | Revised P1 Panel Board |
| Includes | Subfeed Space; Tin-Plated Aluminum Main Bus |
| Certifications | PB1; UL67 |
| Weight | 40.08 lb |
| Package Quantity | 1 Piece |
| Country of Origin | USA |
