P1E54ML400ATST Siemens P1 400A 480Y/277V 3-Phase 54-Circuit MLO Panelboard
P1E54ML400ATST Siemens P1 400A 480Y/277V 3-Phase 54-Circuit MLO Panelboard
2 in stockReady to ship from our warehouses
Couldn't load pickup availability
Overview

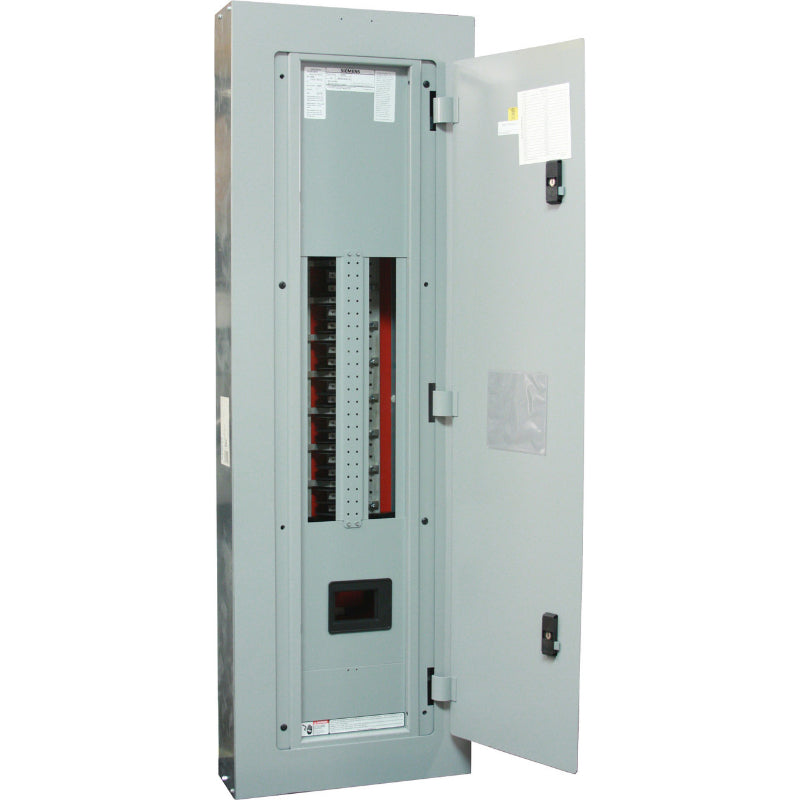

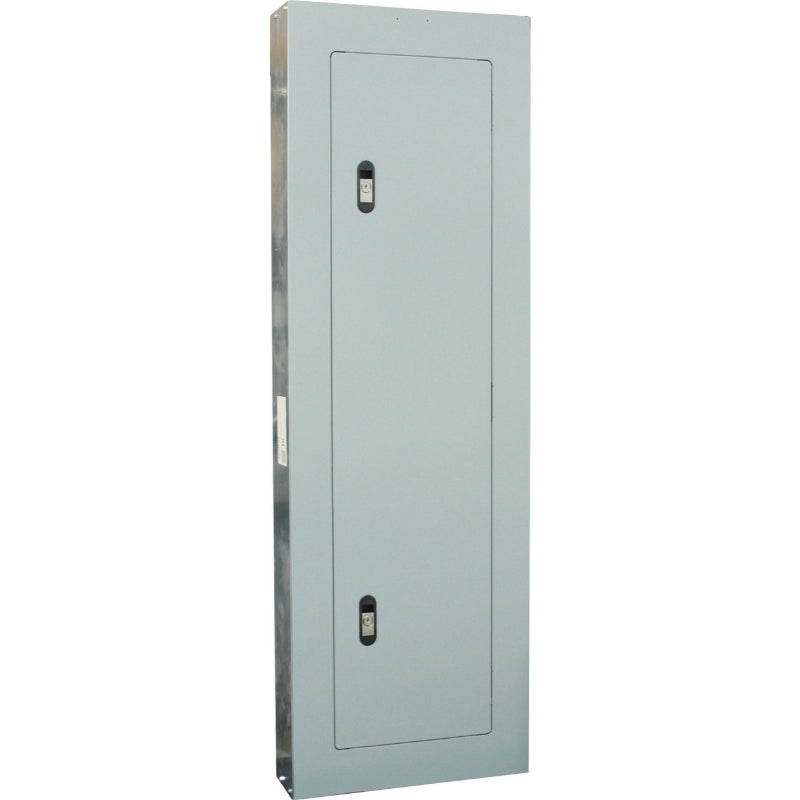

The Siemens P1E54ML400ATST is a 400 A, 54-circuit P1 main-lug panelboard for 480Y/277 V three-phase distribution. This configuration includes a Type 1 enclosure and surface trim with a field-reversible interior.
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Panelboard |
| Voltage Rating | 480Y/277 V |
| Current Rating | 400 A |
| Phase | 3-Phase |
| Number of Wires | 4 |
| Number of Circuits | 54 |
| Cover Attachment Style | Hinge |
| Cover Closure Method | Screw; Latch |
| NEMA Rating | NEMA 1 |
| Enclosure Material | Steel |
| Bus Bar Material | Tin Plated Aluminum |
| Color | Light Gray |
| Finish | Galvanized |
| Wire Size | 1/0 AWG to 250 kcmil; 2 AWG to 600 kcmil |
| Panel Type | P1 |
| Mounting Type | Surface |
| Terminal Type | Screw |
| For Use With | BQD Series Circuit Breakers in Branch Area |
| Includes | 400A Main Lug Kit; 74 in Can; Cover/Door |
| Certifications | NEC: 2020; NEMA PB 1; ANSI/NEMA PB1.1; UL Listed; NFPA 70 Compliant; OSHPD Rated |
| Feed Orientation | Top or Bottom (Field-Reversible Interior) |
| Manufacturer Part Number | P1E54ML400ATST |
| Dimensions | 74 × 20 × 5.75 in |
