Overview

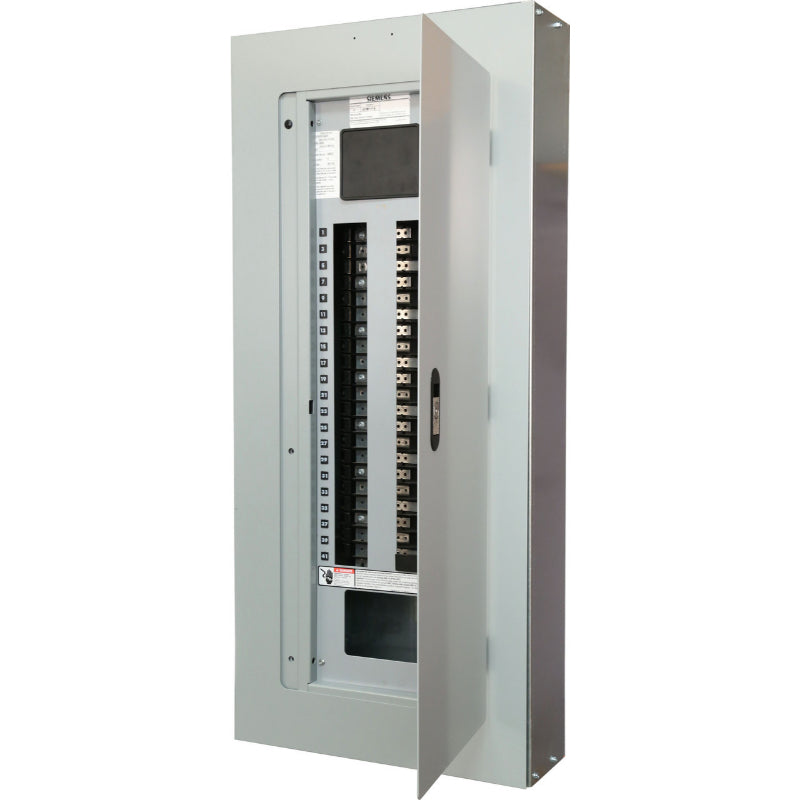

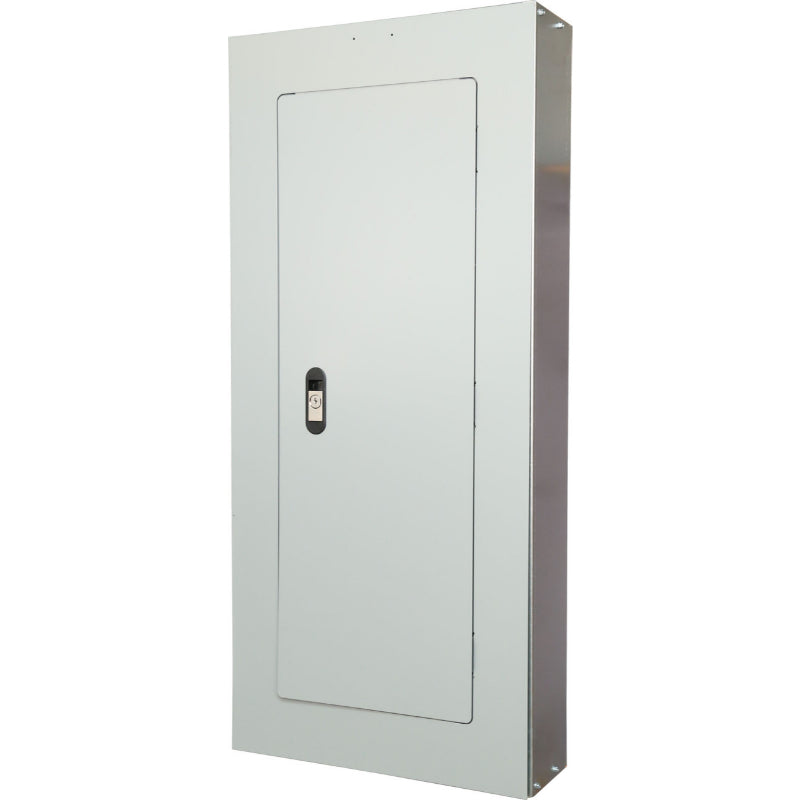

The Siemens P1X42QR225ATST is a 225A, 42-circuit P1 panelboard for 208Y/120V, 3-phase electrical distribution. This main-breaker configuration features a field-reversible interior that accommodates either top-feed or bottom-feed installation. Refer to the specifications for the listed enclosure, bus material, and included components.
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Panelboard |
| Voltage Rating | 208Y/120 V |
| Current Rating | 225 A |
| Phase | 3-Phase |
| Number of Wires | 4 |
| Number of Circuits | 42 |
| Cover Attachment Style | Hinge |
| Cover Closure Method | Screw; Latch |
| NEMA Rating | NEMA 1 |
| Enclosure Material | Steel |
| Bus Bar Material | Tin Plated Aluminum |
| Color | Light Gray |
| Finish | Galvanized |
| Depth | 5.75 in |
| Width | 20 in |
| Panel Type | P1 |
| Mounting Type | Surface |
| Terminal Type | Screw |
| Includes | P1X42MC250AT Interior Bus Unit; B44 Indoor Enclosure/Can 44 in; S44B Door/Cover; MLKQR3A Main Lug Kit; QR23B225 Main Breaker |
| Certifications | NEC: 2020; NEMA PB 1; ANSI/NEMA PB1.1; UL Listed; NFPA 70 Compliant; OSHPD Rated |
| Weight | 115 lb |
| Feed Orientation | Top or Bottom (Field-Reversible Interior) |
