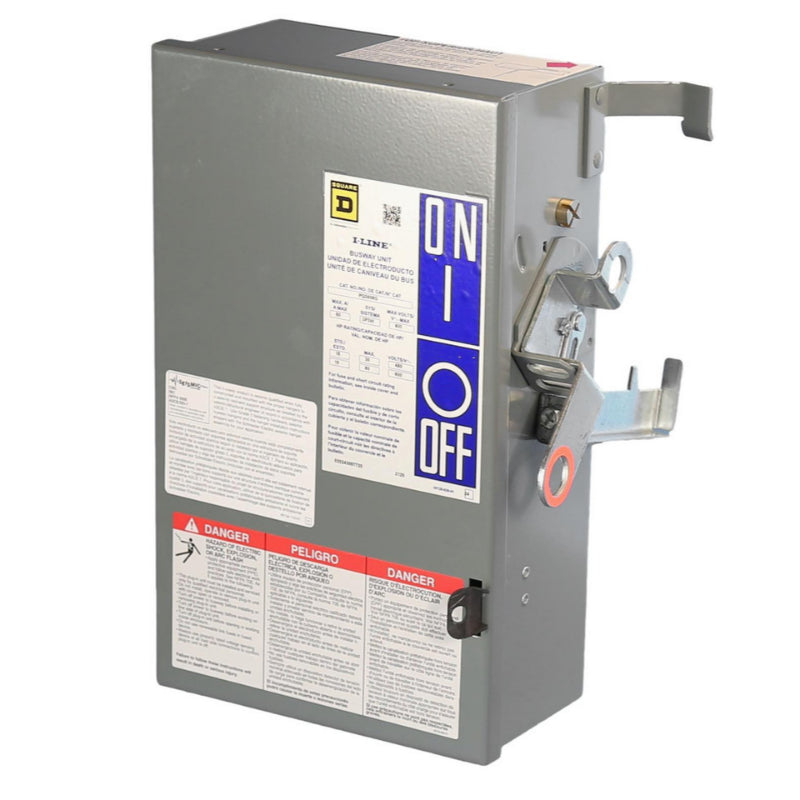

Square D PQ4603G 30A 4-Pole Fusible I-Line Busway Plug with Ground
Square D PQ4603G 30A 4-Pole Fusible I-Line Busway Plug with Ground
2 in stockReady to ship from our warehouses
Couldn't load pickup availability
Overview
The Square D by Schneider Electric PQ4603G is a 30 A, 4-pole fusible disconnect plug-in unit for I-Line busway, rated 277/480V AC (600V Max). This model includes the ground provision. The plug-in connection uses a hook-swing mounting arrangement.
This four-pole configuration has three fuse positions plus ground. Verify the busway configuration and required fuse arrangement before installation.
Specifications
| Brand | Square D by Schneider Electric |
|---|---|
| Manufacturer Part Number | PQ4603G |
| Product Type | Fusible Busway Plug-In Unit |
| Series | I-Line / I-Line II Busway |
| Current Rating | 30 A |
| Number of Poles | 4 |
| AC Voltage Rating | 277/480 V AC (600 V AC maximum) |
| Fuse Configuration | 3 fuses + ground (4-pole unit) |
| Ground Provision | Included |
| Mounting Type | Plug-in, hook-swing |
| Disconnect Type | Fusible disconnect |
