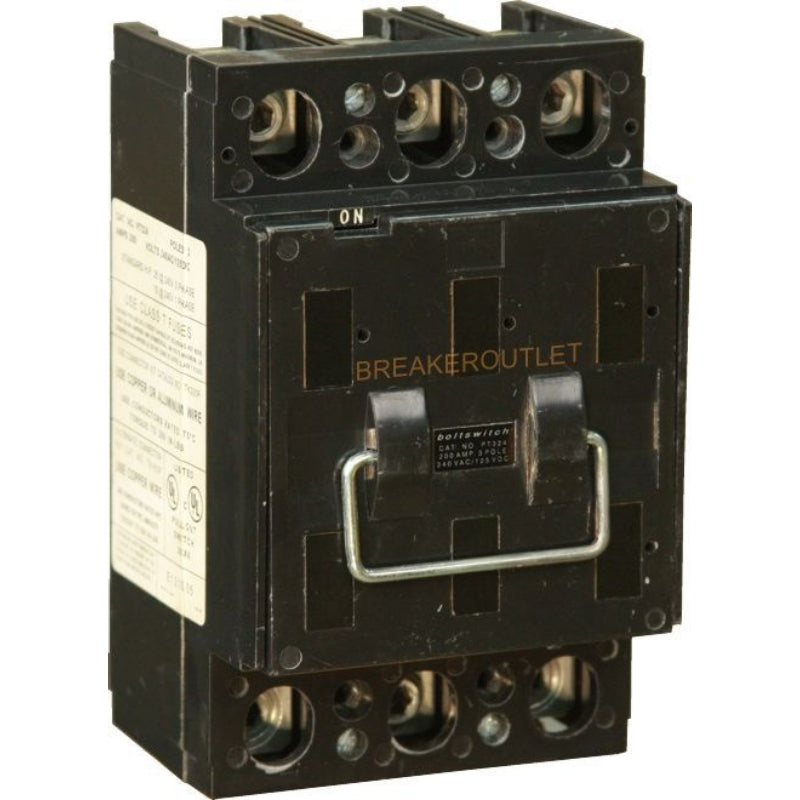

PT323 Boltswitch Pullout Disconnect Switch 240 VAC 100 A 3 Pole Screw Mount
PT323 Boltswitch Pullout Disconnect Switch 240 VAC 100 A 3 Pole Screw Mount
1 in stockReady to ship from our warehouses
Couldn't load pickup availability
Overview
100A 3P 240V pullout disconnect switch with line and load lugs. Tested in accordance with UL 1429, and listed as pullout switches under file NO. E131005. Dc rated switches are UL and C-UL listed for use on circuits capable of delivering 50,000 amperes at 125 V dc with class T fuses. Very compact design. 240 volt switches are interchangeable with westinghouse CA circuit breakers, CA3200.
Specifications
| Brand | Boltswitch |
|---|---|
| Product Type | Pullout Disconnect Switch |
| Voltage Rating | 240 V ac |
| Current Rating | 100 A |
| Protection Method | Fusible |
| Interrupt Rating | 200000 A (RMS Symmetrical); 50000 A @ 125 V dc (with Class T Fuses) |
| Switch Design | Pull-Out |
| Number of Poles | 3 |
| Fuse Class | T |
| Mounting Type | Screw |
| Number of Mounting Holes | 4 |
| Terminal Type | Line; Load Lug |
| Depth | 3.96 in |
| Width | 4.12 in |
| Height | 6 in |
| For Use With | Panel Board; Control Panel; Meter Bank |
| Certifications | cULus Listed; UL Listed; C-UL Listed |
