Boltswitch

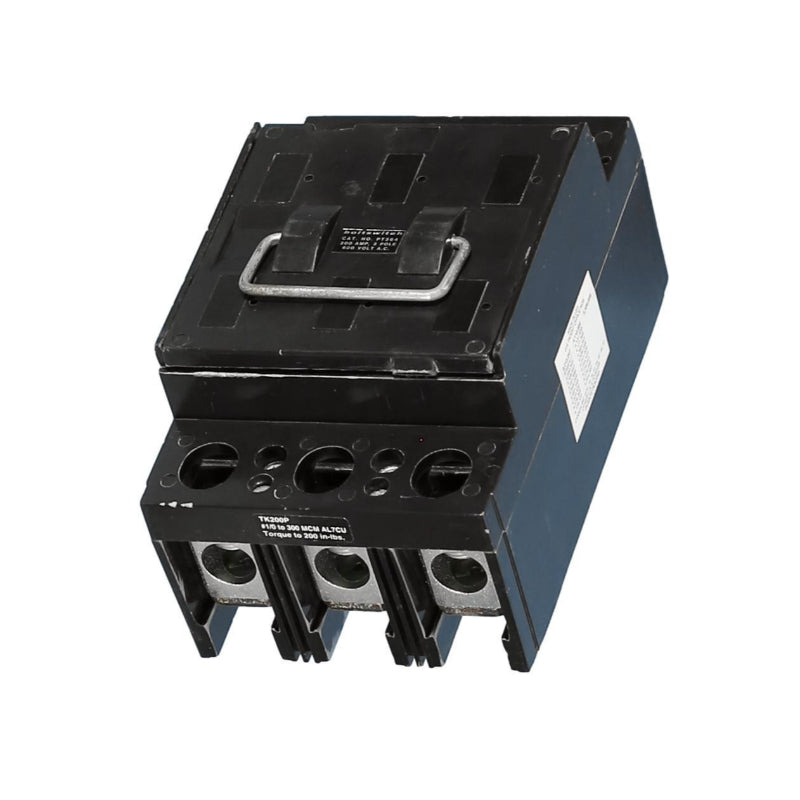

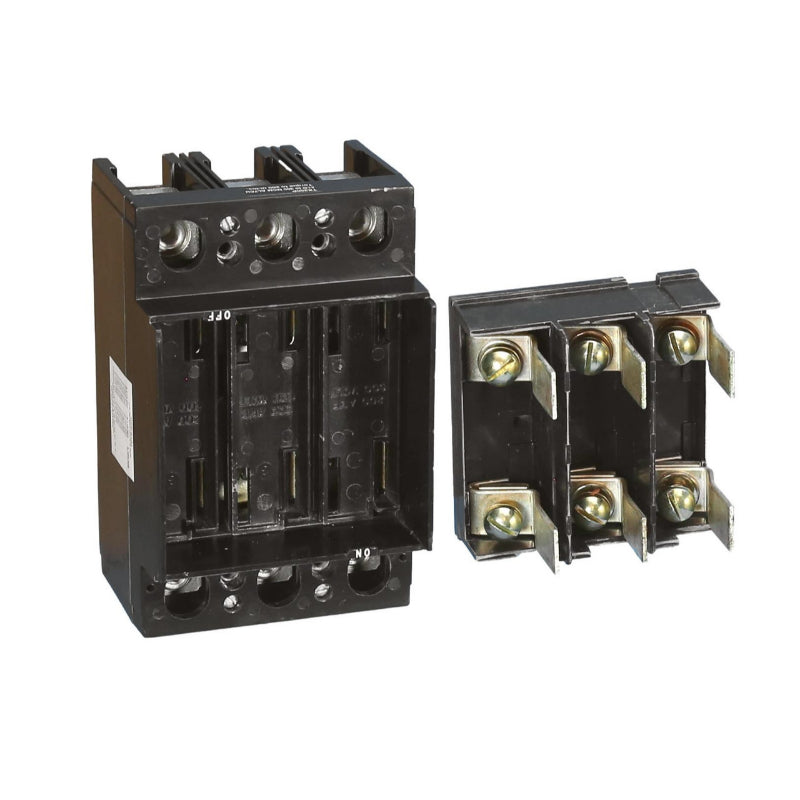

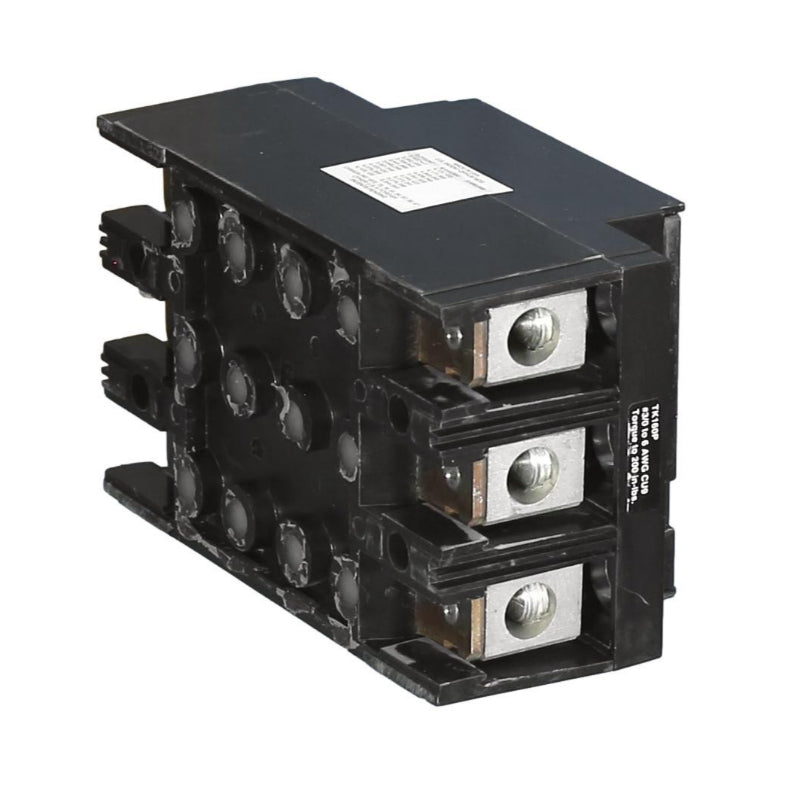

PT324 Boltswitch Pullout Disconnect Switch 240 VAC 200 A 3 Pole
PT324 Boltswitch Pullout Disconnect Switch 240 VAC 200 A 3 Pole
Regular price
$465.00
Sale price
$465.00
Regular price
Shipping calculated at checkout.
2 in stockReady to ship from our warehouses
Couldn't load pickup availability
Overview
PT324 is a boltswitch pullout disconnect switch rated 240 V ac, 200 A, 3 pole, designed for robust manual circuit isolation.
Specifications
| Brand | Boltswitch |
|---|---|
| Product Type | Pullout Disconnect Switch |
| Voltage Rating | 240 V ac |
| Current Rating | 200 A |
| Protection Method | Fusible |
| Interrupt Rating | 200000 A (RMS Symmetrical); 50000 A @ 125 V dc (with Class T Fuses) |
| Switch Design | Pull-Out |
| Number of Poles | 3 |
| Fuse Class | T |
| Mounting Type | Screw |
| Number of Mounting Holes | 4 |
| Terminal Type | Line; Load Lug |
| Depth | 3.62 in |
| Width | 4.12 in |
| Height | 6.50 in |
| For Use With | Panel Board; Control Panel; Meter Bank |
| Certifications | cULus Listed; UL Listed; C-UL Listed |
