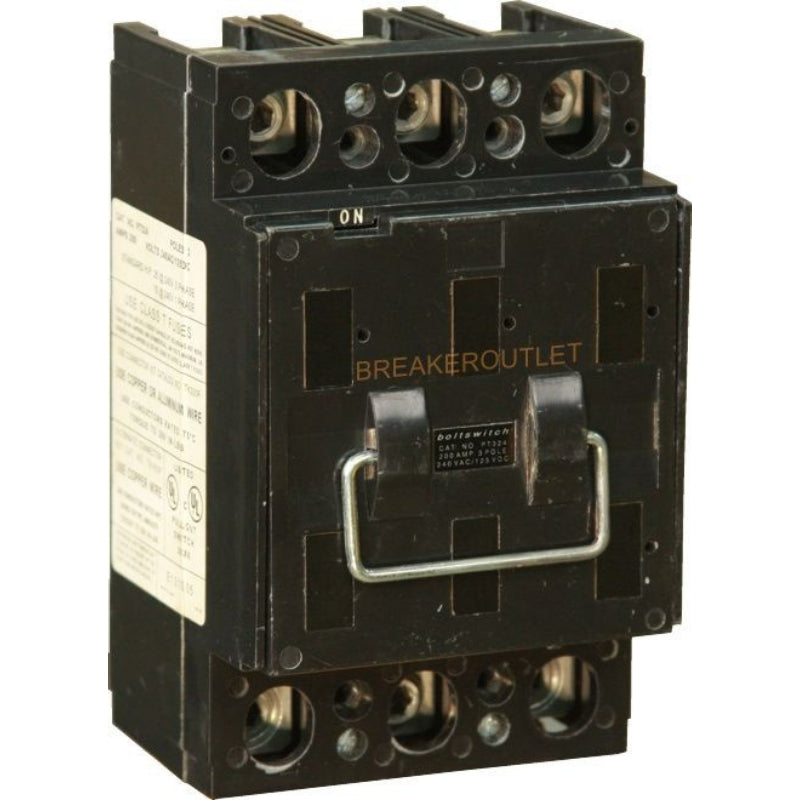

PT363 Boltswitch Pullout Disconnect Switch 600 VAC 100 A 3 Pole
PT363 Boltswitch Pullout Disconnect Switch 600 VAC 100 A 3 Pole
Couldn't load pickup availability
Overview
60 ampere 3 pole 600V fusible pullout unit with line and load lug/terminals. Tested in accordance with UL 1429, and listed as pullout switches under file NO. E131005. DC rated switches are UL and C-UL listed for use on circuits capable of delivering 50,000 amperes at 125 V dc with class T fuses. Very compact design.
Specifications
| Brand | Boltswitch |
|---|---|
| Product Type | Pullout Disconnect Switch |
| Voltage Rating | 600 V ac |
| Current Rating | 100 A |
| Protection Method | Fusible |
| Interrupt Rating | 200000 A (RMS Symmetrical); 50000 A @ 125 V dc (with Class T Fuses) |
| Switch Design | Pull-Out |
| Number of Poles | 3 |
| Fuse Class | T |
| Mounting Type | Screw |
| Number of Mounting Holes | 4 |
| Terminal Type | Line; Load Lug |
| Depth | 3.96 in |
| Width | 4.12 in |
| Height | 6 in |
| For Use With | Panel Board; Control Panel; Meter Bank |
| Certifications | cULus Listed; UL Listed; C-UL Listed |
