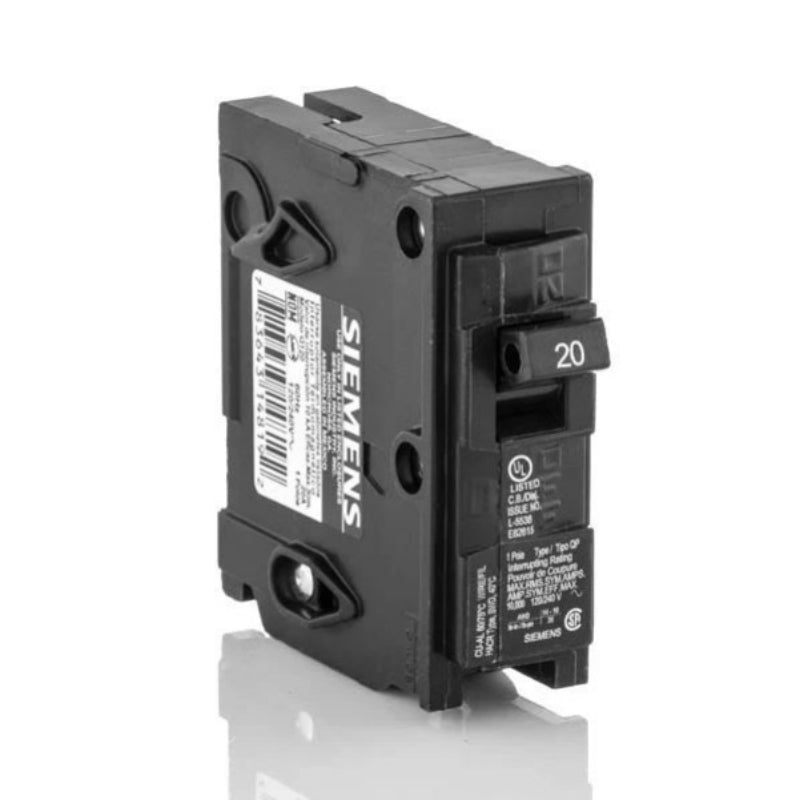

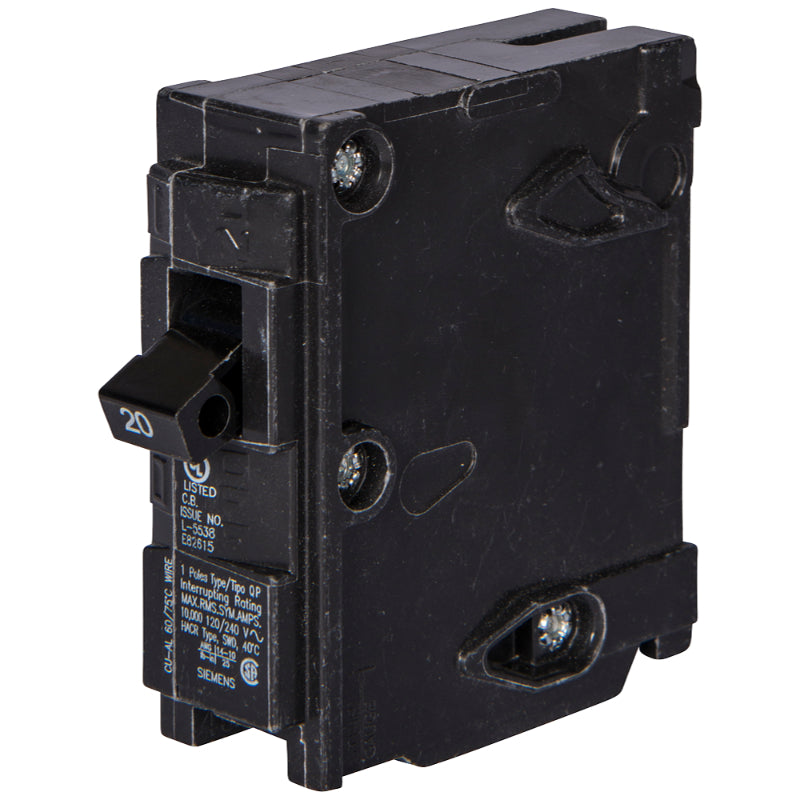

Q120 Siemens QP Miniature Circuit Breaker 20 A 1 Pole 120/240 VAC QP 125A Frame Thermal Magnetic Load Side Lug 10 kA
Q120 Siemens QP Miniature Circuit Breaker 20 A 1 Pole 120/240 VAC QP 125A Frame Thermal Magnetic Load Side Lug 10 kA
36 in stockReady to ship from our warehouses
Couldn't load pickup availability
Overview
Breaker 20A 1P 120V 10K QP single pole 20 amp breaker 10K AIC Siemens. If you choose to purchase a re-certified Q120 Siemens circuit breaker plug-in, you will receive a two-warranty. New Siemens Q120 breakers come with a one-year warranty. All products from breaker outlet are thoroughly inspected prior to your order being fulfilled to ensure they are of the highest quality and function properly. Purchase yours today!
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Miniature Circuit Breaker |
| AC Voltage Rating | 120/240 V |
| Current Rating | 20 A |
| Interrupt Rating | 10 kA |
| High Current Trip Setting | 100 A |
| Low Current Trip Setting | 15 A |
| Trip Type | Fixed |
| Trip Mechanism | Thermal Magnetic |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 1 |
| Frame Size | QP 125A |
| Actuator Type | Toggle |
| Wire Size | 12 to 10 AWG (Aluminum);14 to 10 AWG (Copper) |
| Terminal Type | Load Side Lug |
| Mounting Type | Plug-In |
| Operating Temperature Rating | 40 °C |
| Short Circuit Protection (Yes/No) | Yes |
| Overload Protection (Yes/No) | Yes |
| Height | 3-1/8 in |
| Width | 1 in |
| Depth | 3 in |
| For Use With | Panel Board;Load Center |
| Application | Residential;Commercial;Electrical Distribution |
| Certifications | UL 489;CSA C22.2 NO. 5-16;HACR Rated;NMX-J-266-ANCE |
| Weight | 0.265 lb |
| Package Quantity | 1 piece |
| Warranty | 1 Yr (New);2 Yrs (Recertified) |
| Country of Origin | Mexico |
