Overview

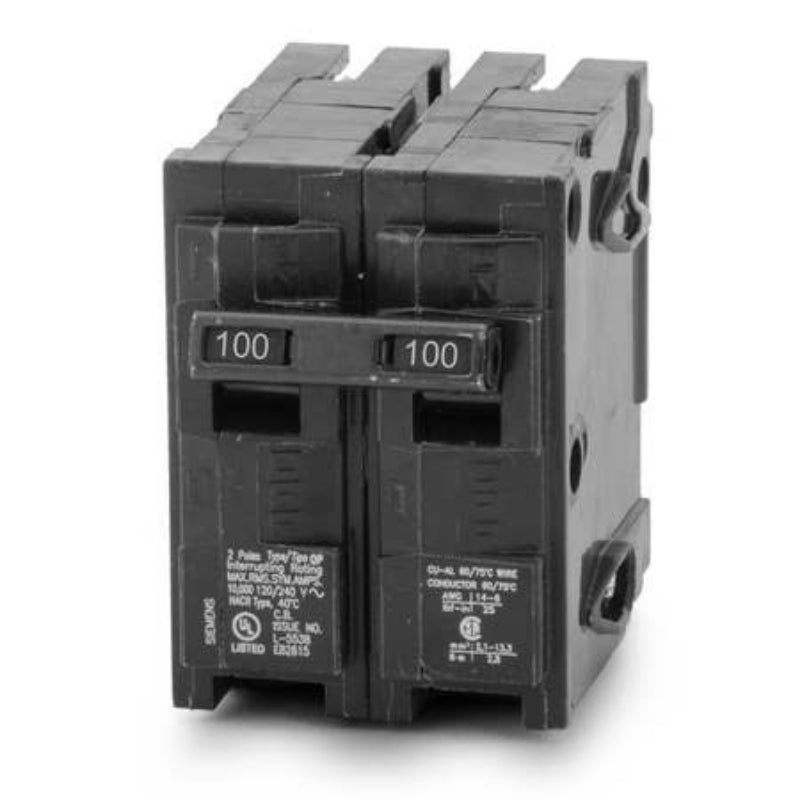

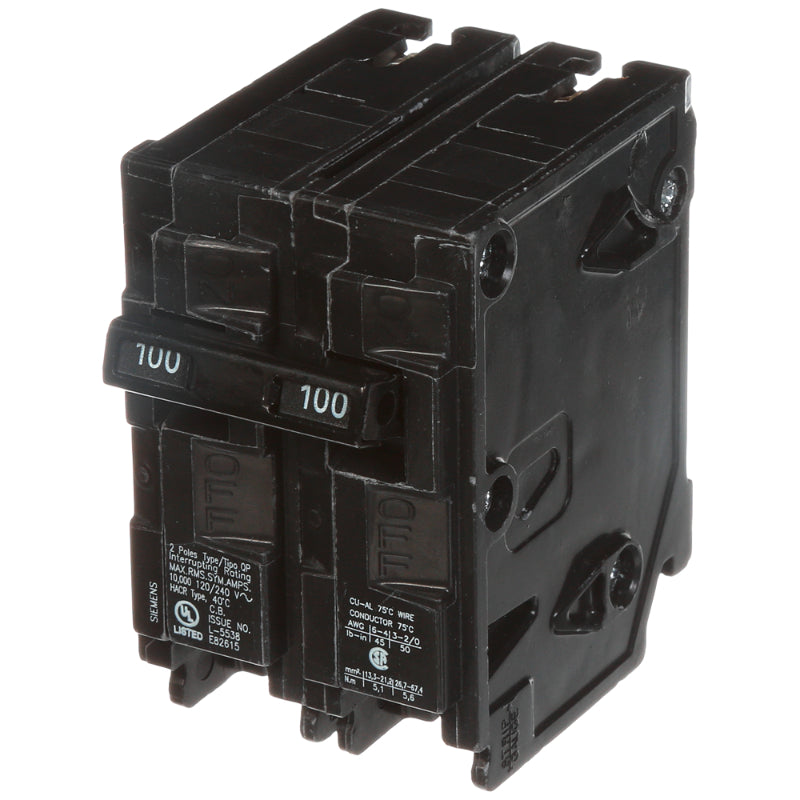

Siemens low voltage residential circuit breakers miniature thermal magnetic circuit breakers - type QP/MP, 2-Pole, 120/240 V ac are circuit protection load center mains, feeders, and miniature circuit breakers. Type: QP/MP application: electrical distribution standard: UL 489 voltage rating: 120/240 V amperage rating: 100A trip range: thermal magnetic interrupt rating: 10 AIC number of poles: 2P. Why, we don't know, but that's the fact. Need help, just call us 800-3321-8998 toll-free. We like hearing from you.

Specifications

BrandSiemens
Product TypeMiniature Circuit Breaker
AC Voltage Rating120/240 V
Current Rating100 A
Interrupt Rating10 kA
High Current Trip Setting100 A
Low Current Trip Setting15 A
Trip TypeCommon;Fixed
Trip MechanismThermal Magnetic
Frequency Rating50/60 Hz
Number of Poles2
Frame SizeQP 125A
Actuator TypeToggle
Wire Size3 to 1 AWG (Aluminum);4 to 3 AWG (Copper)
Terminal TypeLoad Side Lug
Mounting TypePlug-In
Operating Temperature Rating40 °C
Short Circuit Protection (Yes/No)Yes
Overload Protection (Yes/No)Yes
Height3-1/8 in
Width2 in
Depth3 in
For Use WithPanel Board;Load Center
ApplicationResidential;Electrical Distribution
CertificationsUL 489;CSA C22.2 NO. 5-16;HACR Rated;NMX-J-266-ANCE
Weight0.617 lb
Package Quantity1 piece
Country of OriginMexico
