Q22030CT Siemens QT Miniature Circuit Breaker 120/240 V 20/30 A 1 Pole 10 kA
Q22030CT Siemens QT Miniature Circuit Breaker 120/240 V 20/30 A 1 Pole 10 kA
3 in stockReady to ship from our warehouses
Couldn't load pickup availability
Overview

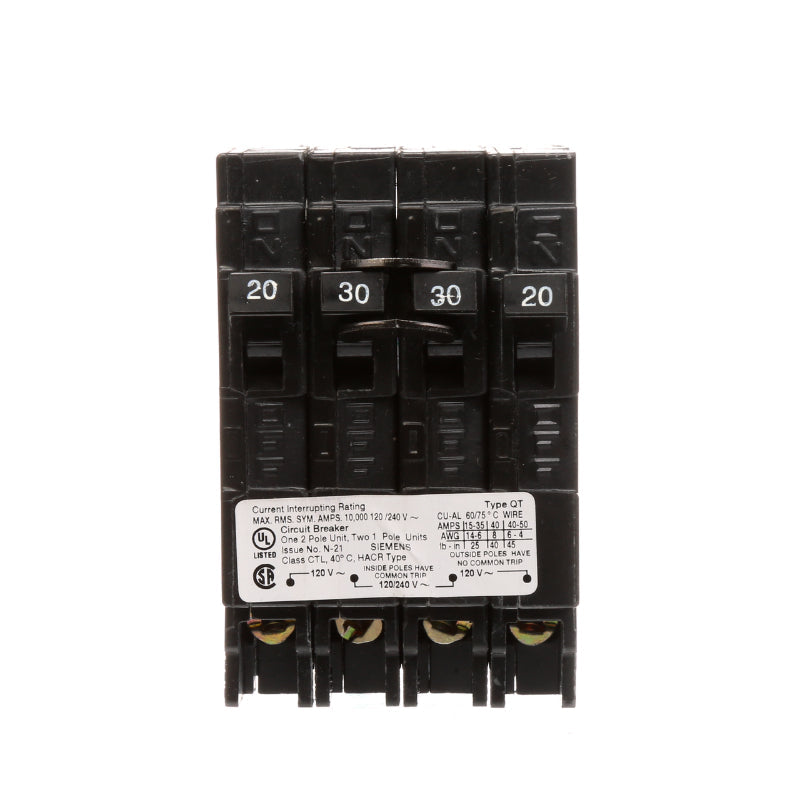

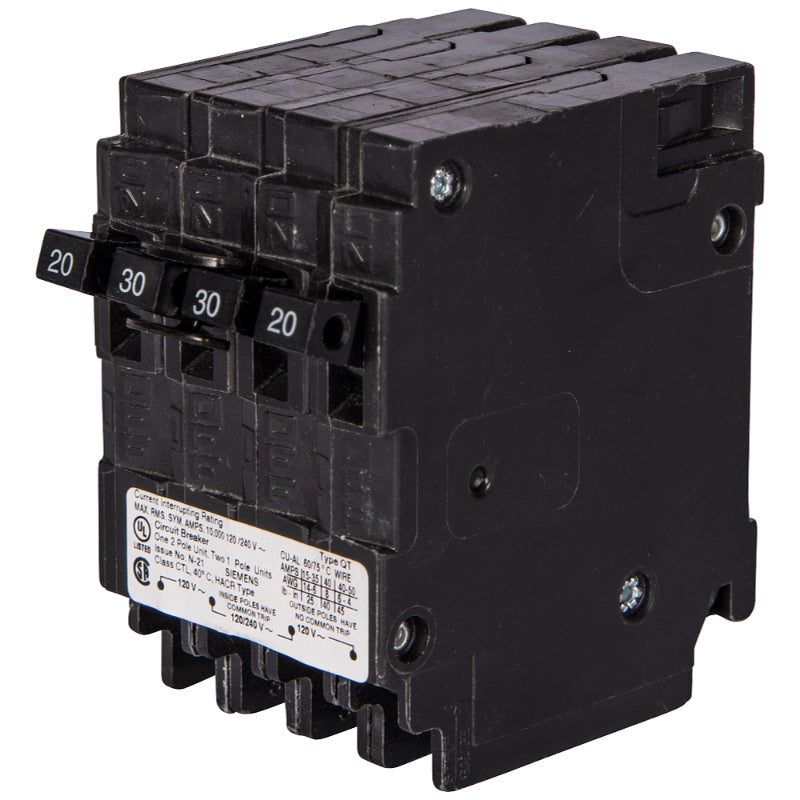

Siemens low voltage residential circuit breakers miniature thermal magnetic circuit breakers - duplex, triplex, quadplex are circuit protection load center mains, feeders, and miniature circuit breakers. Type: QT application: electrical distribution standard: UL 489 voltage rating: 120/240V amperage rating: 20-30A trip range: thermal magnetic interrupt rating: 10 AIC number of poles: two single poles and one double pole. See photo for actual configuration.
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Miniature Circuit Breaker |
| AC Voltage Rating | 120/240 V |
| Current Rating | 20/30 A |
| Interrupt Rating | 10 kA |
| High Current Trip Setting | 100 A |
| Low Current Trip Setting | 15 A |
| Trip Type | Common; Fixed |
| Trip Mechanism | Thermal Magnetic |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 4 |
| Actuator Type | Toggle |
| Wire Size | 14 to 6 AWG (Copper); 12 to 6 AWG (Aluminum) |
| Terminal Type | Lug |
| Mounting Type | Plug-In |
| Operating Temperature Rating | 40 °C (Maximum) |
| Short Circuit Protection (Yes/No) | Yes |
| Overload Protection (Yes/No) | Yes |
| Height | 2 in |
| Width | 3 in |
| Depth | 3 in |
| For Use With | Circuit Protection Load Center Main; Feeder; Miniature Circuit Breaker |
| Application | Residential |
| Certifications | UL 489; HACR Rated; SWD; CSA Certified |
| Weight | 0.794 lb |
| Package Quantity | 1 Piece |
| Country of Origin | Mexico |
