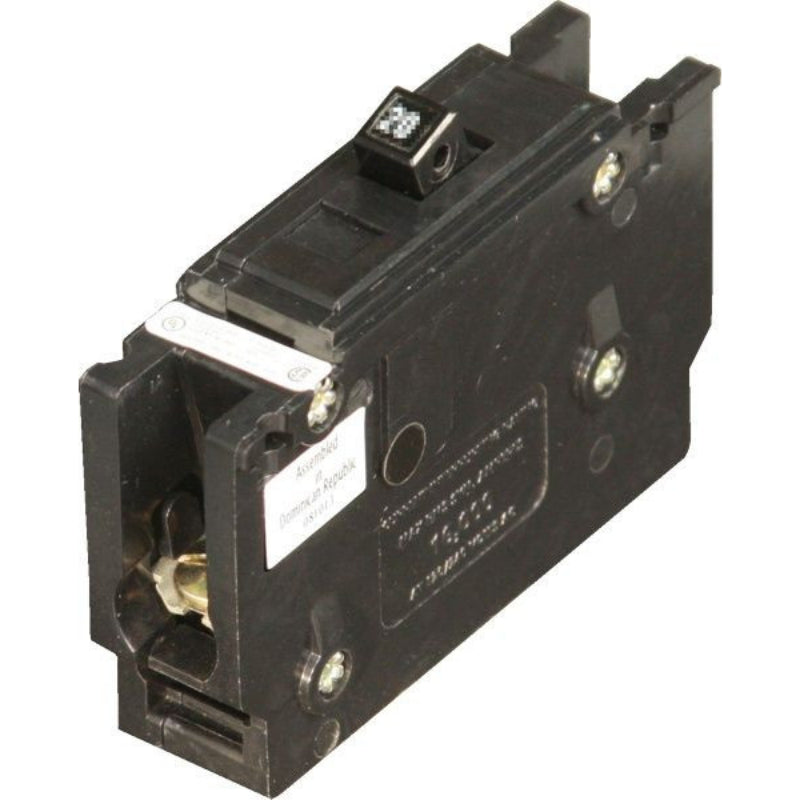

QC1040 Feed-Thru Type, Cutler-Hammer Circuit Breaker
QC1040 Feed-Thru Type, Cutler-Hammer Circuit Breaker
SKU: QC1040
Barcode: 786679309001
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
QC1040
- Eaton Cutler-Hammer OEM
- Quicklag (R)
- Cable-in/Cagle-out
- 40 Ampere
- 1 Pole
- 10k rated @ 240VAC
- 240 VAC
- Thermal Magnetic Trip
- Fixed Trip
- Approval UL, CSA. CE
- Mfg Status: Available
- Commercial
- New or Re-certified
QC1040 Thermal Magnetic, 1 Pole, 120/240 Vac, 40 Ampere At 40 Deg C, Interrupting Rating 10000 Ampere At 120/240 Vac, 5000 Ampere At 24 To 48 Vdc, 3800 Ampere At 62.5 Vdc, quick lag Ring Terminal, Wire Size 14 To 10 Awg (Aluminum/Copper, Line). Breakers are very versatile as they can be face mounted, base mounted or DIN rail mounted, used by OEM panel builders.
