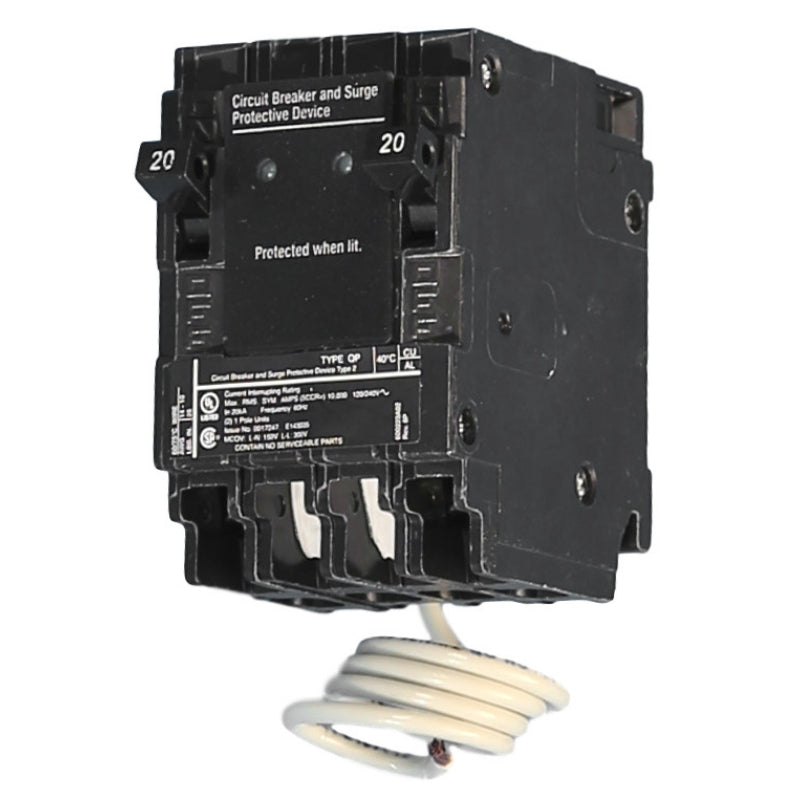

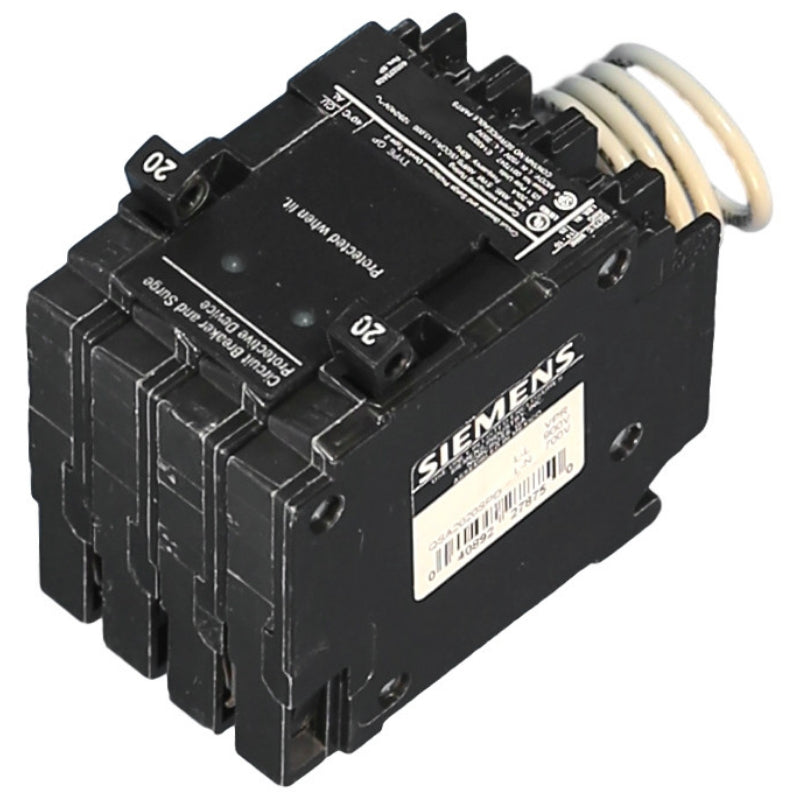

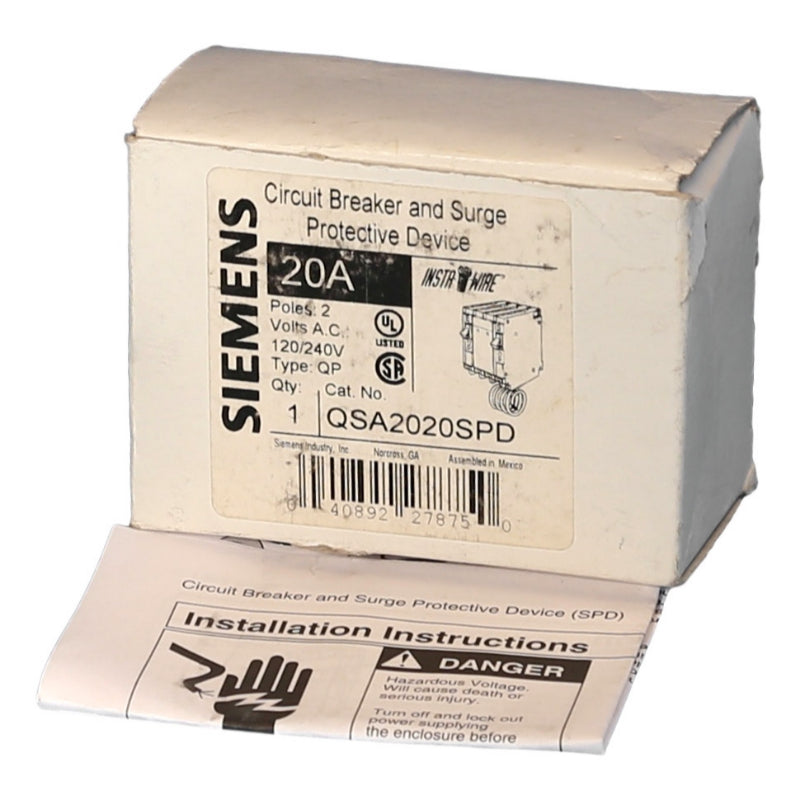

QSA2020SPD Siemens QP SPD Surge Protection Circuit Breaker 120/240 V 20 A 1 Pole 10 kA
QSA2020SPD Siemens QP SPD Surge Protection Circuit Breaker 120/240 V 20 A 1 Pole 10 kA
Regular price
$92.00
Sale price
$92.00
Regular price
Shipping calculated at checkout.
1 in stockReady to ship from our warehouses
Couldn't load pickup availability
Overview
Surge (2) 20A 1P 120V breakers and SPD. Protection breakers are the most economical breakers on the market. They are designed for residential applications or light office.
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Surge Protection Circuit Breaker |
| AC Voltage Rating | 120/240 V |
| Current Rating | 20 A |
| Interrupt Rating | 10 kA |
| High Current Trip Setting | 100 A |
| Low Current Trip Setting | 15 A |
| Trip Type | Fixed (Magnetic) |
| Trip Mechanism | Thermal Magnetic |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 1 |
| Actuator Type | Toggle |
| Wire Size | 14 to 6 AWG (Aluminum/Copper) |
| Terminal Type | Load Lug |
| Mounting Type | Plug-In |
| Operating Temperature Rating | 40 °C (Maximum) |
| Short Circuit Protection (Yes/No) | Yes |
| Overload Protection (Yes/No) | Yes |
| Height | 2.87 in (Breaker) |
| Width | 2 in (SPD); 1 in (Breaker) |
| Depth | 2.37 in (Breaker) |
| For Use With | Circuit Protection Load Center Main; Feeder; Miniature Circuit Breaker |
| Application | Residential |
| Certifications | UL Listed; CSA Certified |
| Weight | 0.551 lb |
| Package Quantity | 1 Piece |
| Warranty | 2 yrs |
| Country of Origin | Mexico |
