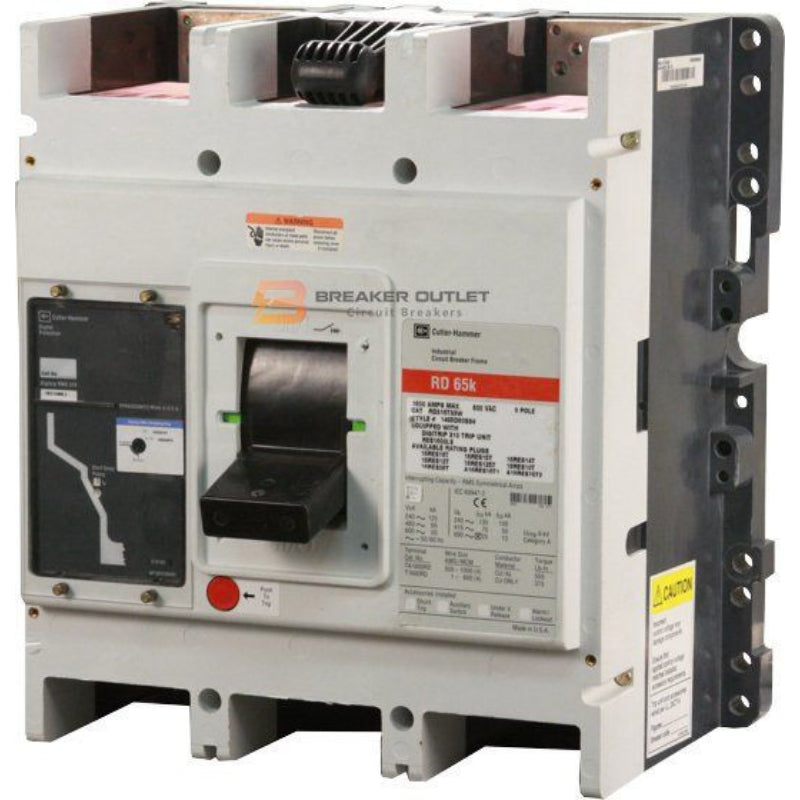

RD325T32W 65k Digitrip RMS 310 Trip Functions LSI
RD325T32W 65k Digitrip RMS 310 Trip Functions LSI
SKU: RD325T32W
Barcode: 786679567555
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
RD325T32W
- Eaton Cutler-Hammer OEM
- Series C (R)
- Insulated Case CB
- 2500 Ampere
- 3 Pole
- 600 VAC
- RMS310 Trip LSI
- Rating plug
- Approval UL, CSA. CE
- Mfg Status: Available
- Industrial
- Total pallet wt. 130 lbs.
2500A 3P Molded Case Circuit Breakers, RD Frame, 600 Vac At 50/60 Hz, 2500 Ampere At 40 Deg C, 3 Pole, Interrupting Rating 125 Kiloampere At 240 Vac, 65 Kiloampere At 480 Vac, 50 Kiloampere At 600 Vac (Ul/Csa), 135 Kiloampere At 240 Vac, 70 Kiloampere At 415 Vac, 25 Kiloampere At 690 Vac (Iec), Terminal Not Included, Size 15.5 Inch W X 9.75 Inch D X 16 Inch H, Rd Model, Applicable Standard Iec 157-1, Ics Rating 100 Kiloampere At 240 Vac, 50 Kiloampere At 415 Vac, 13 Kiloampere At 690 Vac (Iec). This is a pulled out unused surplus unit.
