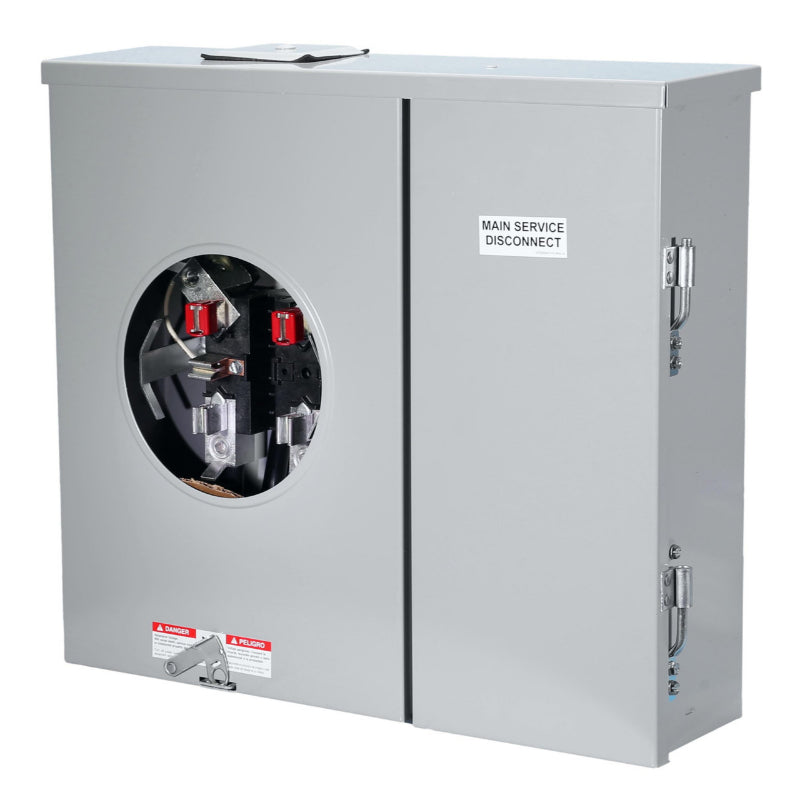

Ringless & Bypass
MM0202B1200RJBX

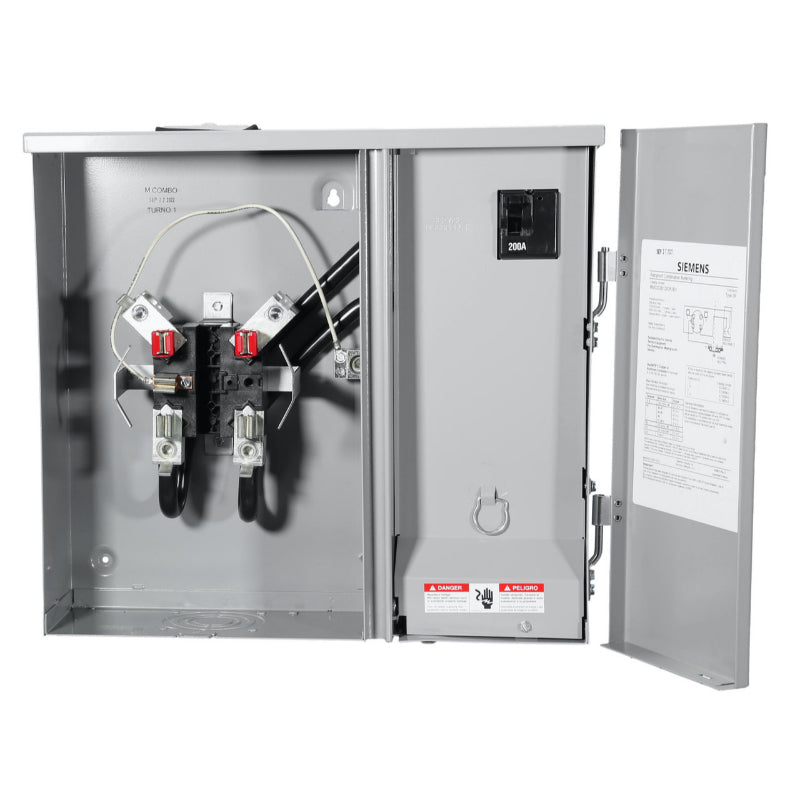

Open Doors
MM0202B1200RJBX

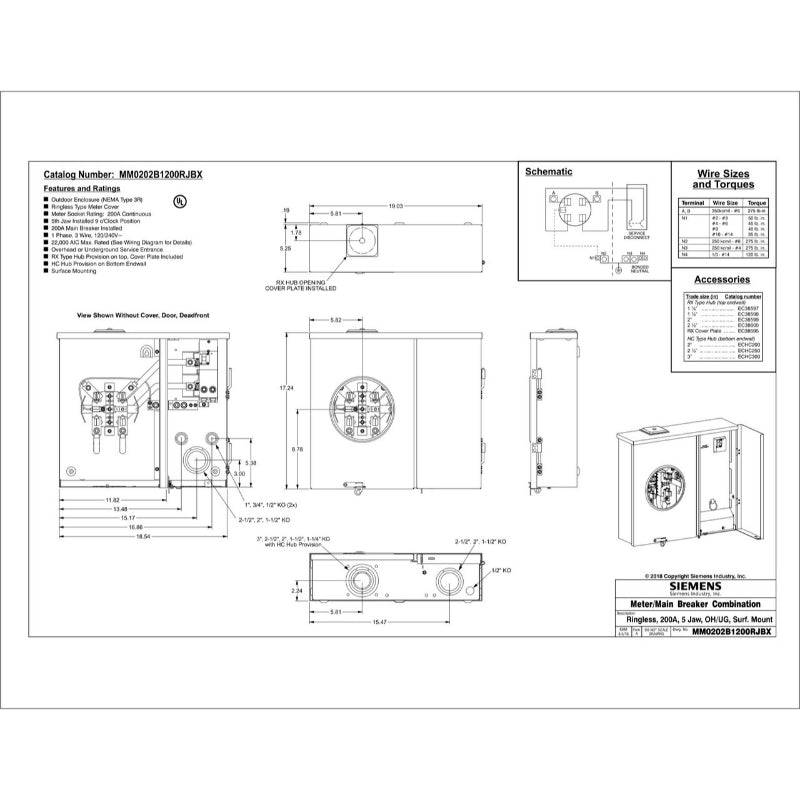

Specification Cut Sheet
MM0202B1200RJBX

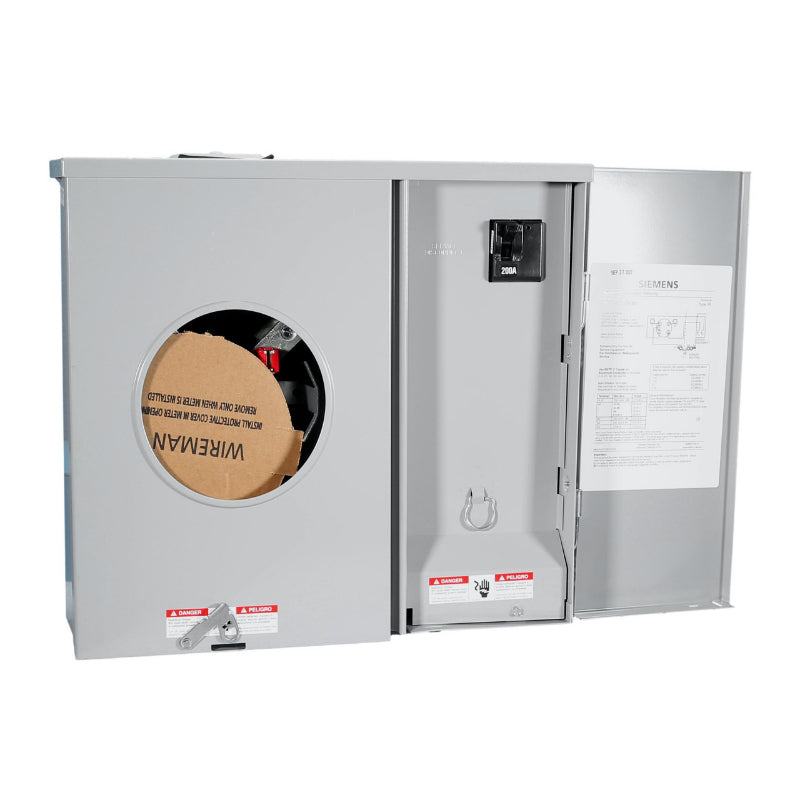

with Main Breaker
MM0202B1200RJBX

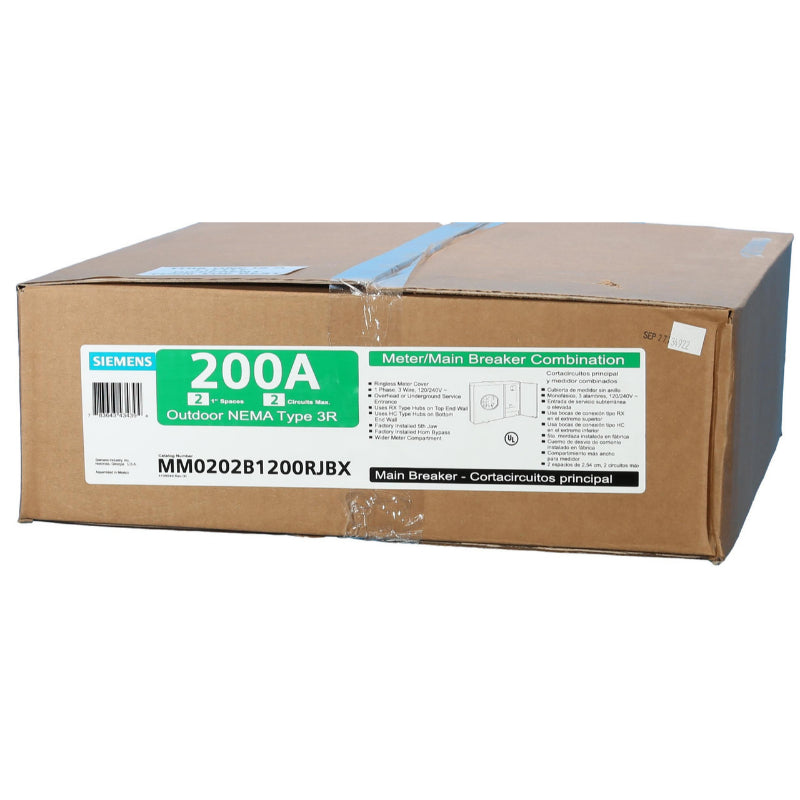

NIB
Ringless MM0202B1200RJBX Horn Bypass Meter Main Breaker Combination 200 Amp Included
Ringless MM0202B1200RJBX Horn Bypass Meter Main Breaker Combination 200 Amp Included
SKU: MM0202B1200RJBX
Barcode: 783643434394
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
MM0202B1200RJBX
- Siemens 200 Amp Meter Main Combination
- Ringless Type Cover
- Horn Bypass Socket
- Larger Utility Section
- Meter Main Service Entrance
- Main Breaker Included
- 5 Jaw, Meter Mains Combination
- Surface Mount
- Overhead/Underground Service
- 200 Amp
- Outdoor
- Single Phase 3 Wire
- 22,000 AIC Rated
- Use RX Hub top end wall
- Use HC hub bottom end wall
- Main Breaker is included with Panel
- 1-2-Inch Circuits Max.
- 19 W by 17.5 Tall by 5 D
- Brand New
