Overview

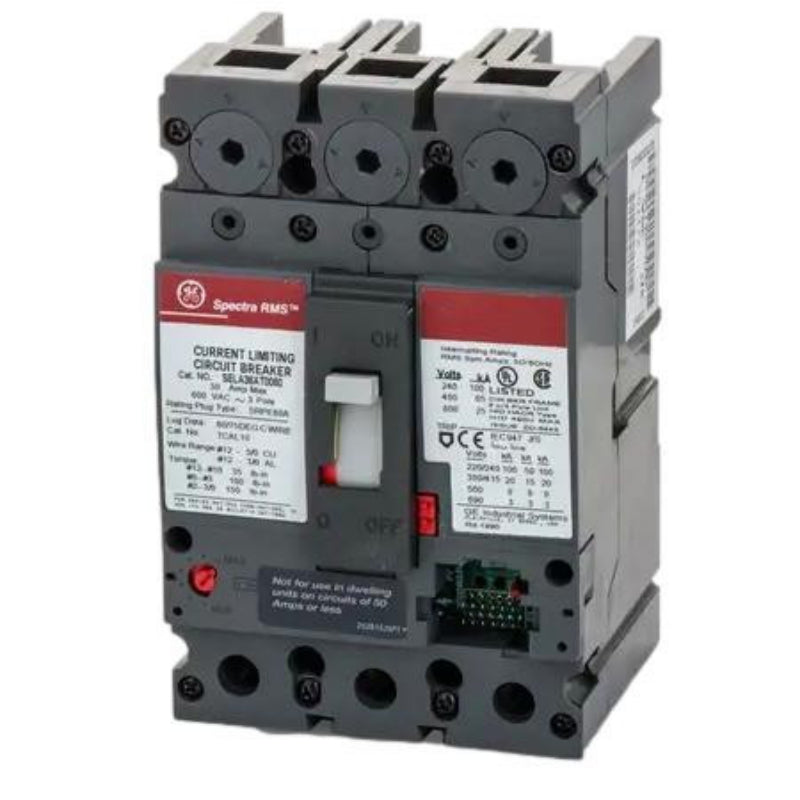

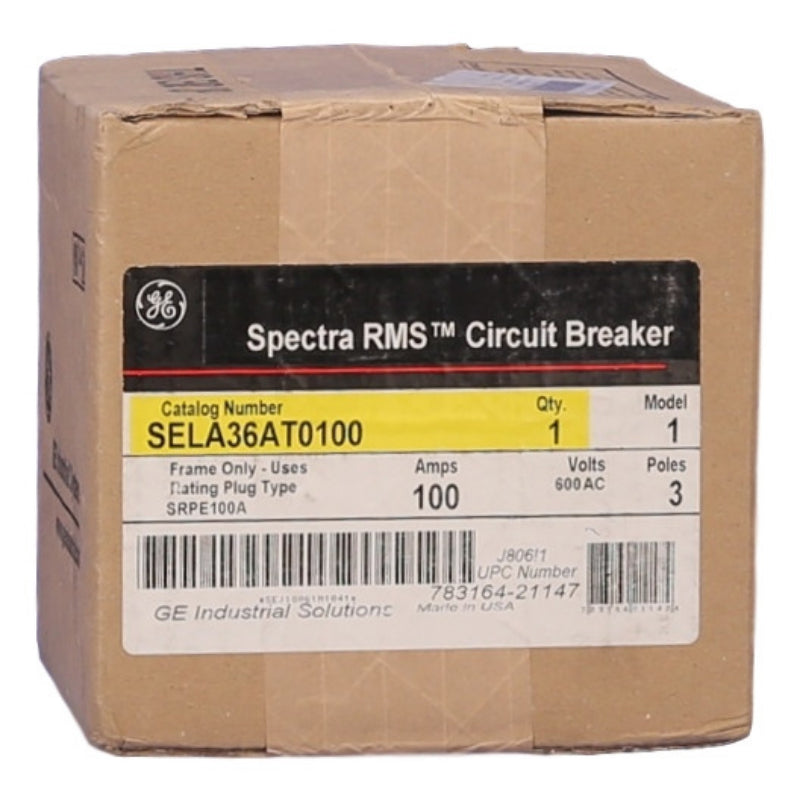

SELA36AT0100

3P 100 frame 600V Spectra RMS GE | ABB Molded Case Circuit Breakers (SE150, SF250, SG600 and SK1200) This unit includes a digital, solid state, RMS sensing trip system with field installable, front-mounted rating plugs to establish or change the breaker ampere rating. Adjustable instantaneous with tracking short-time is standard on all frames. The trip unit uses digital sampling to determine the RMS value of sinusoidal and non-sinusoidal currents.

  • Molded Case, Electronic Solid State Trip, Current Limiting Type
  • 4.12 Inch Width X 3.38 Inch Depth X 6.31 Inch Height Size
  • UL, CSA Approval
  • 600 Volt Voltage Rating
  • 100 Kiloamp At 240 Volt Ac, 65 Kiloamp At 480 Volt Ac, 25 Kiloamp At 600 Volt Ac (UL), 100 Kiloamp At 220 To 240 Volt Ac, 65 Kiloamp At 380 To 415 Volt Ac, 40 Kiloamp At 500 Volt Ac, 5 Kiloamp At 690 Volt Ac (IEC) Interrupting Rating
  • 100 Amp Current Rating
  • 3 Pole(S)
  • E Frame Type
  • Spectra RMS[Tm] Brand
  • Wire Size 12 To 3/0 AWG (Copper/Aluminum)
  • Includes Long/Short/Instantaneous Time Trip
  • Application Heating, Air Conditioning, Refrigeration
  • Applicable Standard IEC
  • Maximum Ac Voltage Rating (V) 690 Volt
  • UPC: 783164211474
  • Does not include rating plugs
