Overview

MC2040B1200EFC

Flush Fit MOUNT

Siemens SOLAR Capable or Ready single phase residential side by side ring type Meter load center combination 42 circuits, UG and EUSERC compliant and Title 24 Solar Ready.approved. Over-head or underground feed configured.

Use RX hub at top or HC hub for bottom. Accepts branch plug-in Q Breakers, very low cost effective. Contact your local utility for acceptance.

  • Use as service entrance equipment only
  • Factory Installed Main Breaker
  • G-90 hot-dipped galvanized carbon steel enclosure with a polyester-paint powder coating for corrosion protection
  • Tin-plated copper buss bars for excellent conductivity
  • Ring-style circular meter cover
  • Flush Mount 200 Amp Panel
  • Over Head/Underground Service
  • 4 Jaw Meter
  • 7 in. deep can
  • Steel breaker-mounting base pan
  • Insta-wire neutrals and grounds features screws already backed out ready for wire insertion allowing for quick and easy installation
  • Removable side-hinged door requires the removal of only a single screw
  • NEMA type-3R enclosure
  • Single-phase, 200 Amp, 240-Volt maximum, 22,000 AIC rating
  • Accommodates overhead and underground feed applications
  • Meets UL and ANSI safety requirements
  • Title 24 compliant/Solar Ready

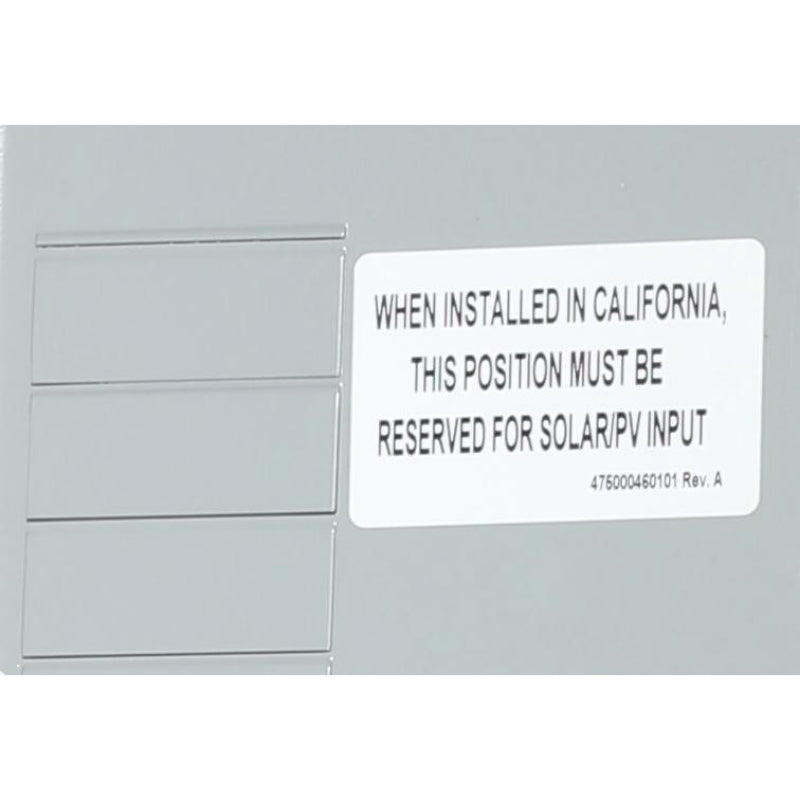

  • Comes with a provision for a solar breaker at the top of the distribution
  • New

Allow two days to ship

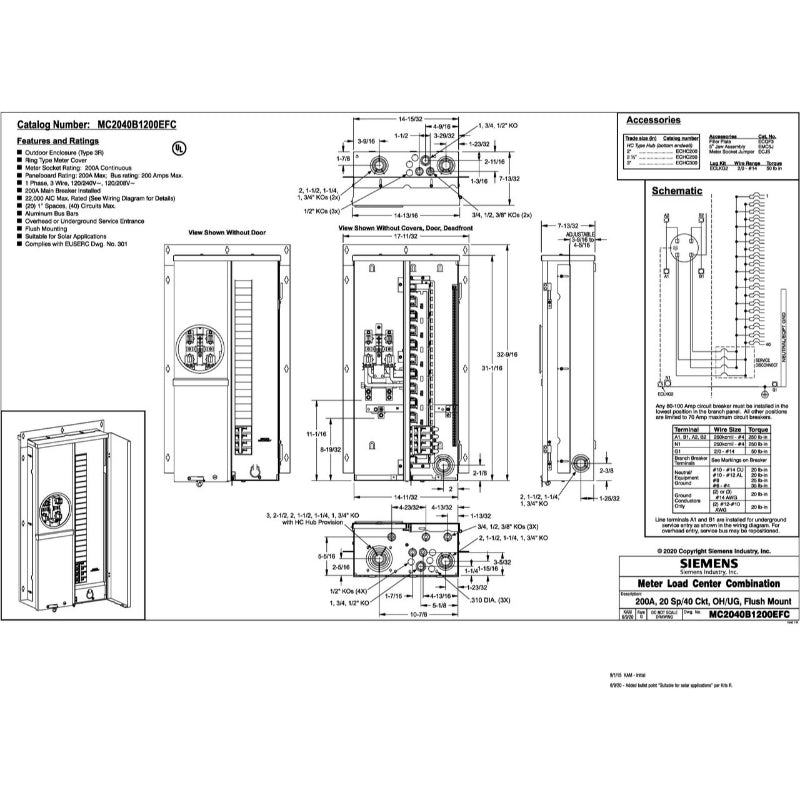

REMARKS: Review Spec Sheet for your application, Use HC Hubs for Underground Service Entry and RX Hubs for Overhead Service Entry
