TED113020 TED Branch Circuit Breakers by General Electric
TED113020 TED Branch Circuit Breakers by General Electric
16 in stock
Couldn't load pickup availability
Overview

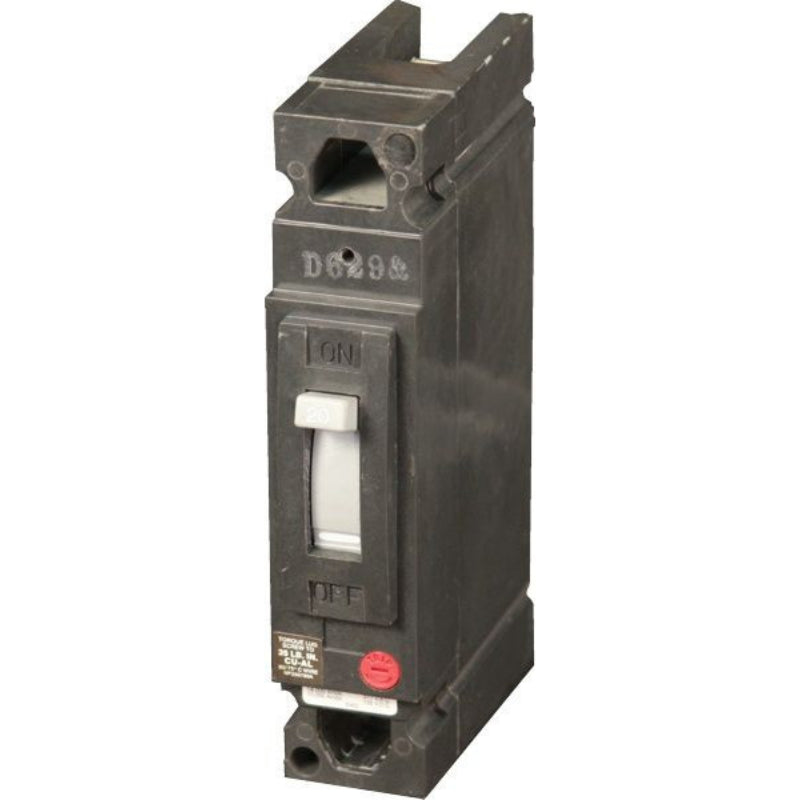

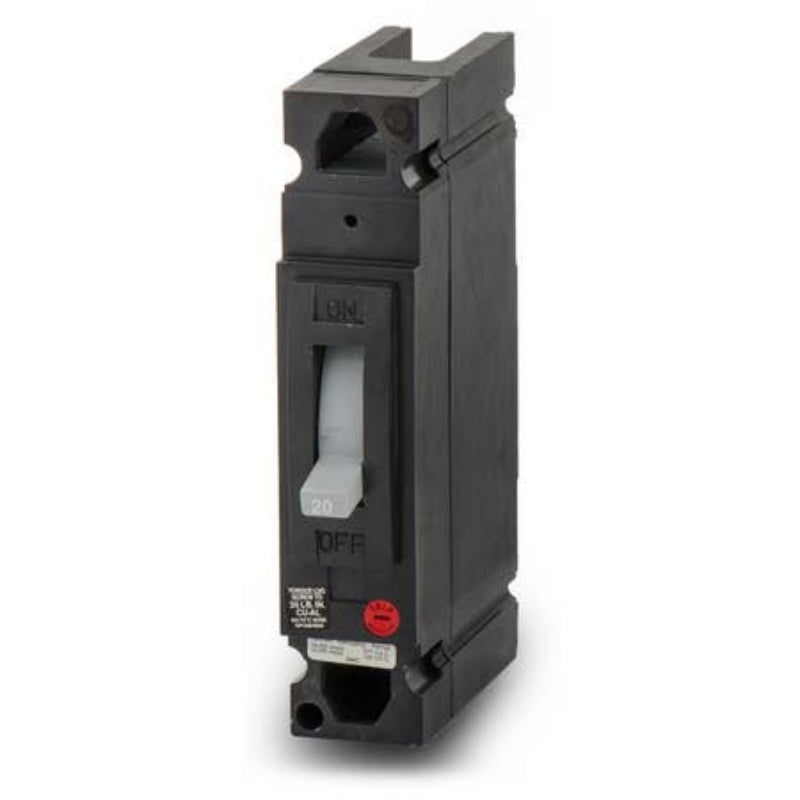

The TED113020 is a 20 A, 1-pole ABB / GE TED E150-frame molded-case circuit breaker rated for 277 VAC. This breaker has a fixed thermal-magnetic trip and is configured with load lugs.
- 20 A, 1-pole TED E150 circuit breaker
- 277 VAC class; thermal-magnetic protection
- Cu/Al load lugs; line lugs not indicated by suffix
- Verify interrupting rating at your system voltage and equipment compatibility before installation
WL and non-WL models are comparable TED breakers but differ in supplied lug configuration. Confirm exact part number before ordering.
