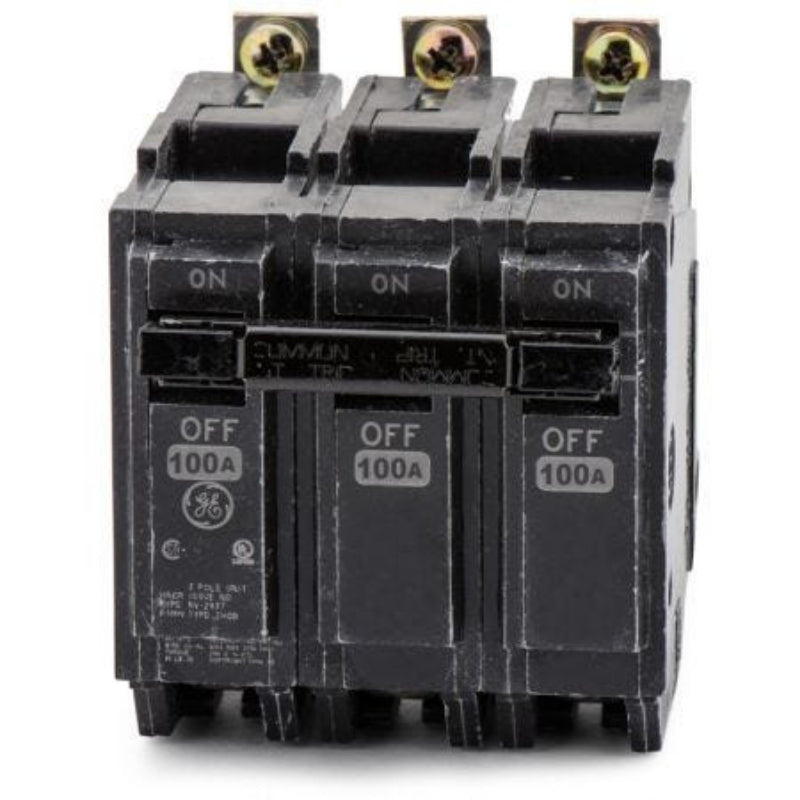

THQB32100 3 Pole Bolt-on 100A General Electric Circuit Breaker
THQB32100 3 Pole Bolt-on 100A General Electric Circuit Breaker
17 in stockReady to ship from our warehouses
Couldn't load pickup availability
Overview
The THQB32100 is a 100 A, 3-pole GE / ABB Q-Line THQB bolt-on thermal-magnetic circuit breaker for compatible panelboards. Rated 240 VAC with 10 kA interrupting capacity.
- 100 A, 3-pole common-trip breaker
- 240 VAC, 10 kAIC
- Bolt-on mounting for compatible Q-Line equipment
- Fixed thermal-magnetic protection
Verify panelboard compatibility and terminal requirements before ordering.
Specifications
| Brand | ABB / GE |
|---|---|
| Product Type | Miniature Circuit Breaker |
| Series | Q-Line THQB |
| Frame Size | Q-Line |
| AC Voltage Rating | 240 V |
| Current Rating | 100 A |
| Interrupt Rating | 10 kA @ 240 V |
| Trip Type | Fixed |
| Trip Mechanism | Thermal Magnetic |
| Number of Poles | 3 |
| Mounting Type | Bolt-On |
| Trip Function | Common Trip |
| Manufacturer Part Number | THQB32100 |
| UPC | 783164012477 |
