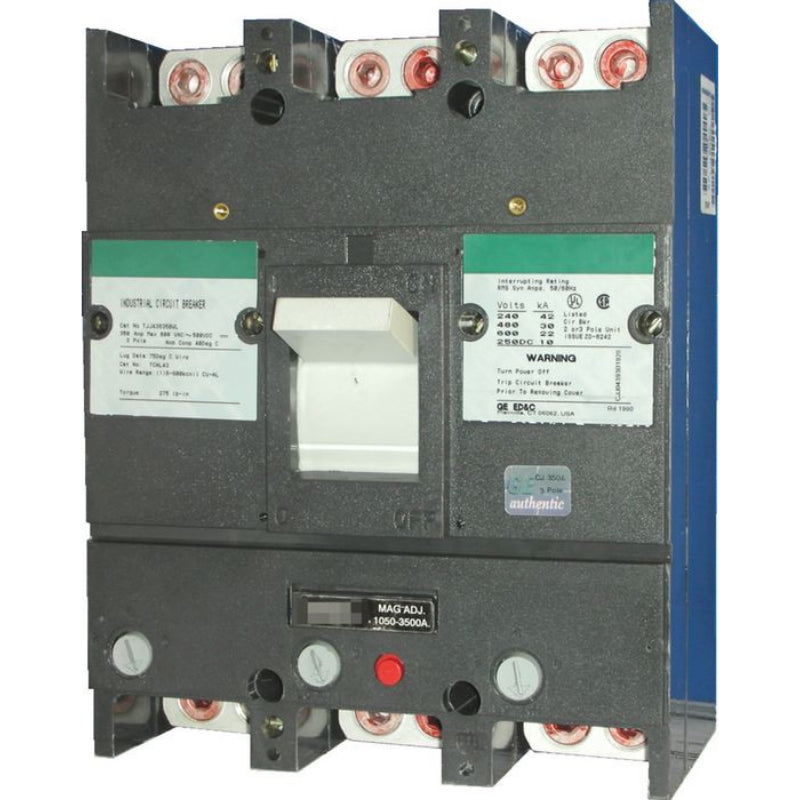

TJK436250WL GE 250A Interchangeable Trip Circuit Breaker
TJK436250WL GE 250A Interchangeable Trip Circuit Breaker
SKU: TJK436250WL
Barcode: 783164050110
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
TJK436250WL
250A 3P TJK4 frames are 400A max. and provide field installable trip units. This TJK allows for shunt trips and auxiliaries to be field installed. Amp range 70-400A. The TJK6 model is the same size, however its range is up to 600A. Parts are not interchangeable. Specifications: Molded case, thermal magnetic, TJK4 frame, 240/480/600 VAC, 500 VDC, 400 ampere, 3 pole, interrupting rating 42 kiloampere at 240 VAC, 30 kiloampere at 480 VAC, 22 kiloampere at 600 VAC, 20 kiloampere at 500 VDC, terminal aluminum/copper line lug, load lug, size 8 1/4 inch w x 3 13/16 inch d x 10 1/8 inch h, TJJ4 model TJK436250WL
