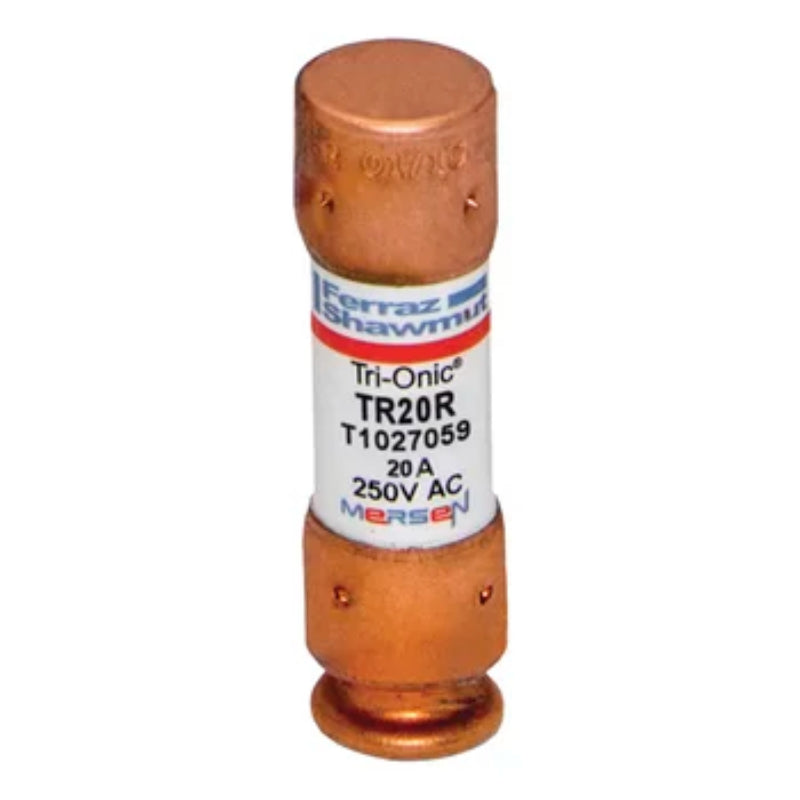

TR20R Mersen TR-R Time Delay Fuse 250 V 160 VDC 200 kA Ferrule Terminal Class RK5 Dual 20 A
TR20R Mersen TR-R Time Delay Fuse 250 V 160 VDC 200 kA Ferrule Terminal Class RK5 Dual 20 A
12 in stock
Couldn't load pickup availability
Overview

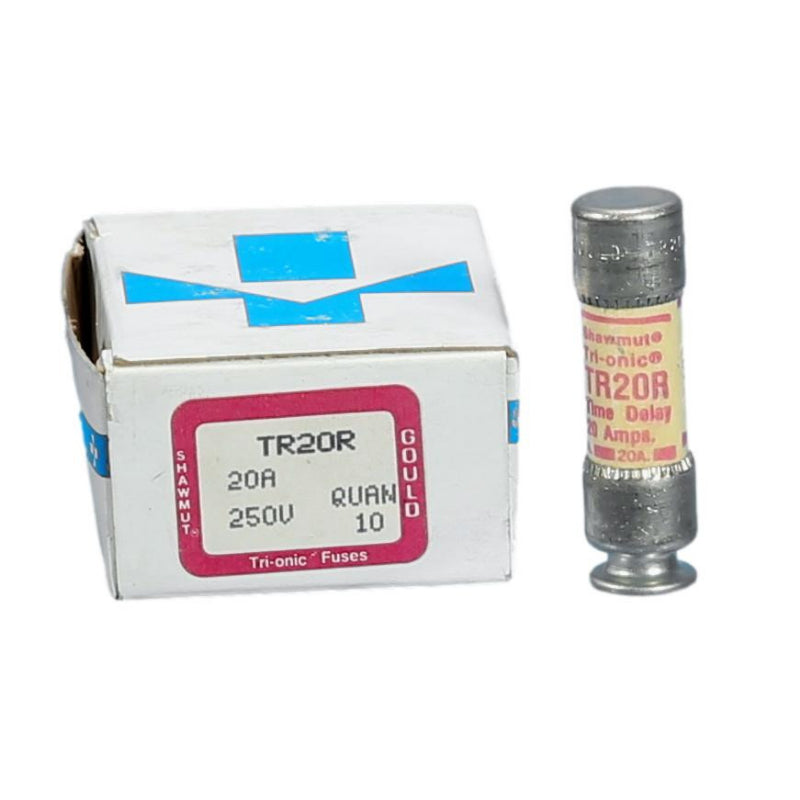

Tri-onic TR-R and TRS-R current-limiting time-delay fuses are engineered for over current protection of motors and transformers, service entrance equipment, feeder, and branch circuit. Sold by the box/10 pcs per box,
- Time delay
- Current limiting
- AC and DC rated
- Time delay for motor start-ups and transformer inrush currents without nuisance opening
- Current limiting for low peak let-thru current
- Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
- Easy-to-read label for quick brand recognition and replacement
- Metal-embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High-grade silica filler ensures fast arc quenching and high current limitation
