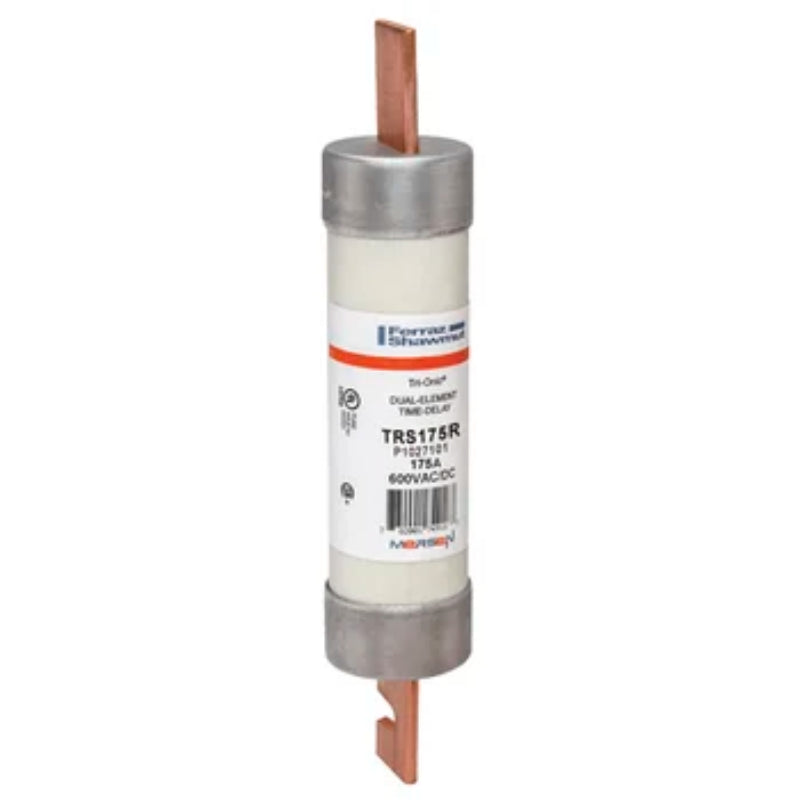

TRS175R Mersen TRS-R Time Delay Fuse 600 V 600 VDC 200 kA Blade Terminal Class RK5 Dual 175 A
TRS175R Mersen TRS-R Time Delay Fuse 600 V 600 VDC 200 kA Blade Terminal Class RK5 Dual 175 A
11 in stock
Couldn't load pickup availability
Overview
Tri-onic TRS-R current-limiting time-delay fuses are engineered for over current protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
- Time delay
- Current limiting
- AC and DC rated
- Optional solid state smartspot blown fuse indicator
- Time delay for motor start-ups and transformer inrush currents without nuisance opening
- Current limiting for low peak let-thru current
- Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
- Easy-to-read label for quick brand recognition and replacement
- Metal-embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High-grade silica filler ensures fast arc quenching and high current limitation
