WEPK2211 Siemens 200A 2-Gang Uni-PAK Metering, Ring Type, EUSERC
WEPK2211 Siemens 200A 2-Gang Uni-PAK Metering, Ring Type, EUSERC
Couldn't load pickup availability
Overview

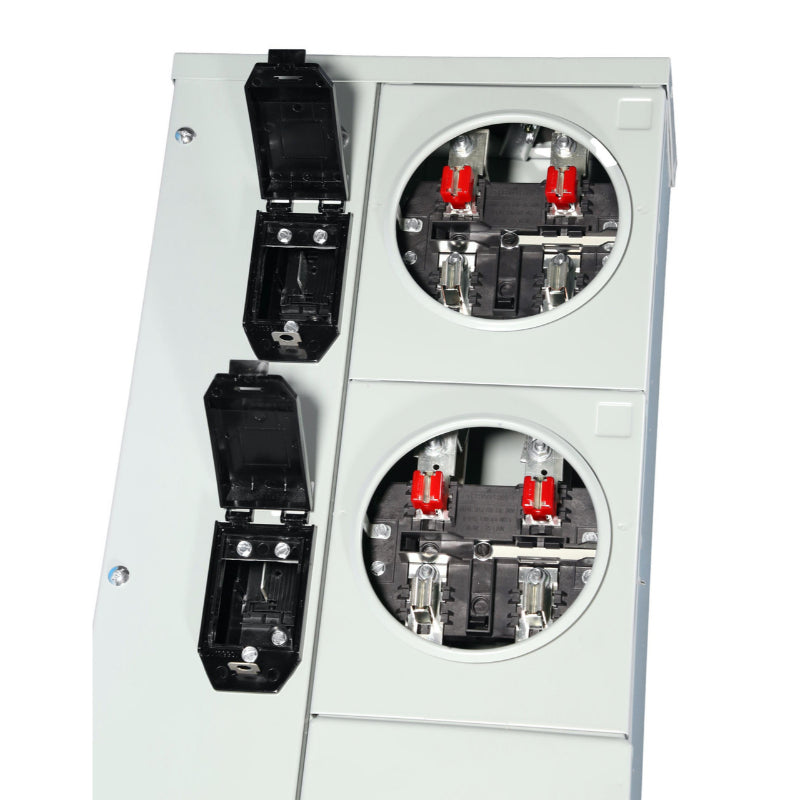

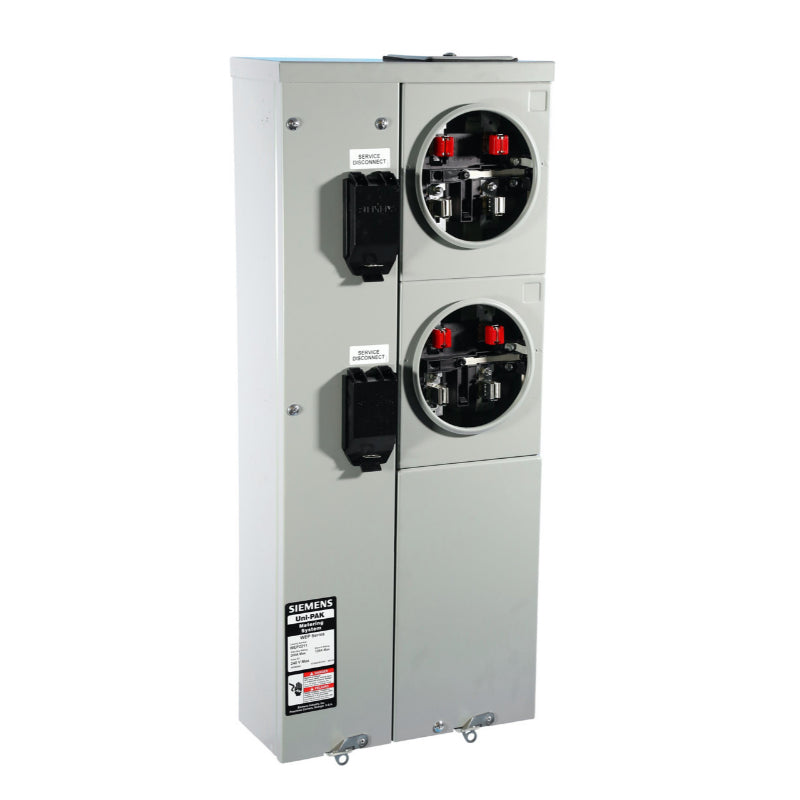

The Siemens WEPK2211 Uni-PAK is a two-position metering assembly designed for multi-family and duplex electrical service installations. Its 200-amp bus supports two separately compartmentalized service disconnect positions, with ring-type meter sockets for 120/240V single-phase systems. The outdoor-rated, EUSERC-compliant design helps accommodate modern service-equipment requirements while providing a compact solution for separately metered units.
Specifications
| Manufacturer | Siemens |
|---|---|
| Catalog Number | WEPK2211 |
| Product Type | Uni-PAK Metering Assembly |
| Series | Uni-PAK |
| Maximum Bus Rating | 200 A |
| Maximum Meter Socket Rating | 125 A continuous per position |
| Maximum Branch Rating | 125 A |
| Maximum AIC Rating | 100 kA |
| Voltage Rating | 120/240 V AC |
| Phase | Single-phase |
| Number of Wires | 3 |
| Meter Positions | 2 |
| Meter Socket Jaws | 4 per position |
| Meter Socket Cover | Ring type |
| Bypass | None |
| Fifth Jaw Installed | No |
| Enclosure Rating | NEMA 3R |
| Installation | Outdoor service equipment |
| Mounting | Wall-mounted |
| Compliance | EUSERC (subject to utility requirements) |
| Applicable Breaker Families | Siemens QP or QN (per manufacturer selection guide) |
| Net Weight | 52.117 lb |
| UPC | 195125382039 |
| Country of Origin | United States |
