Overview

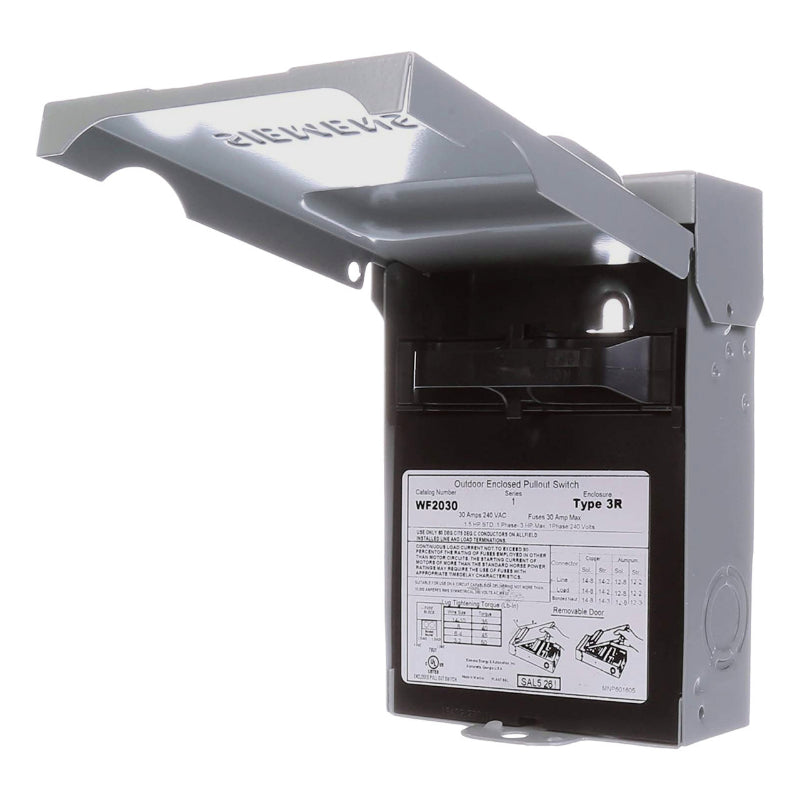

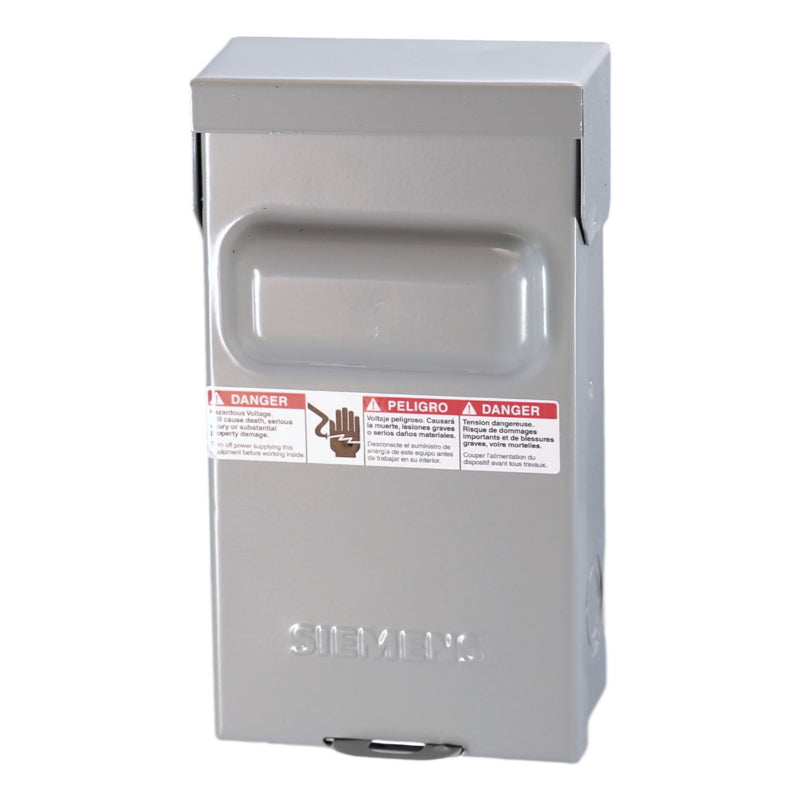

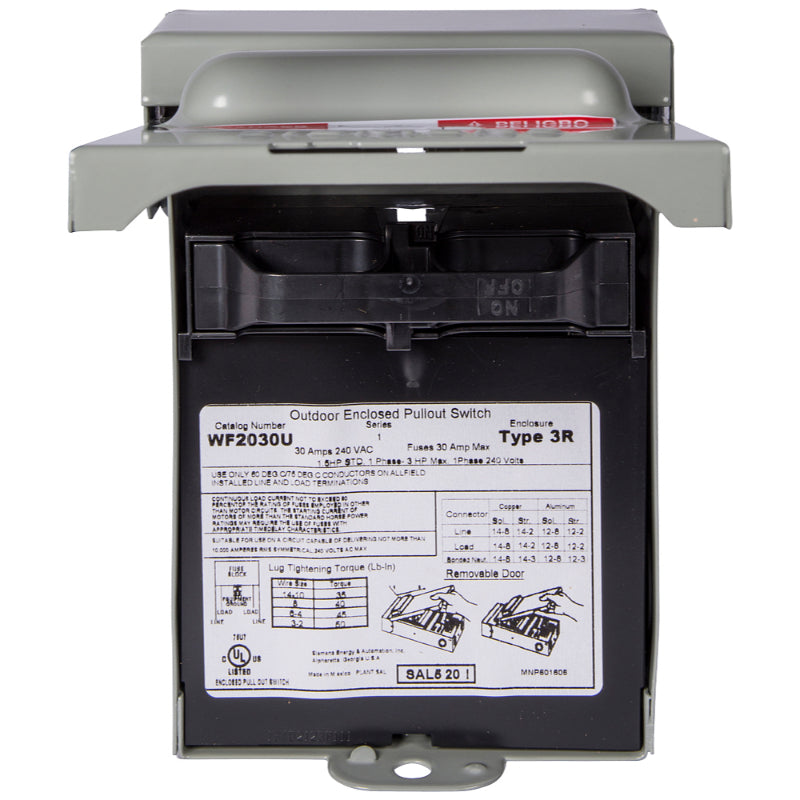

Steel pull out AC disconnect 30AMP, fused ,240 volt, 3HP, NEMA 3R - individually packed.

  • Compact size
  • Visible blade, double-break switching action
  • Quick-make, quick-break operating mechanism
  • Highly visible ON/OFF indicators
  • Padlock-off handle feature
  • Door padlock provision
  • Bondable neutral (where indicated)
  • Lugs suitable for copper or aluminum wire
  • 30A cartridge fuse switches rated 100,000 AC with class R fuses

Specifications

BrandSiemens
Product TypePull Out AC Disconnect Switch
Voltage Rating240 V ac
Current Rating30 A
Switch ActionMake and Break
Protection MethodFusible
Horsepower Rating10 hp
Interrupt Rating10 kA
PhaseSingle
Switch DesignPull-Out
Housing MaterialSteel
Number of Poles2
Number of Wires2
Wire Size14 to 10 AWG;8 AWG;6 to 4 AWG;3 to 2 AWG
Fuse ClassClass R
Torque Rating35 in-lb;40 in-lb;45 in-lb;50 in-lb
Handle ColorRed
Handle StylePadlock
Mounting TypeSurface
Mounting PositionVertical
Terminal TypeLug
Resistance PropertiesWeatherproof
Depth3-7/16 in
Width5-5/32 in
Height9-1/8 in
NEMA RatingNEMA 3R
ApplicationOutdoor
CertificationsUL Listed;UL E4776
Weight2.467 lb
Package Quantity360 Pallet
Country of OriginMexico
