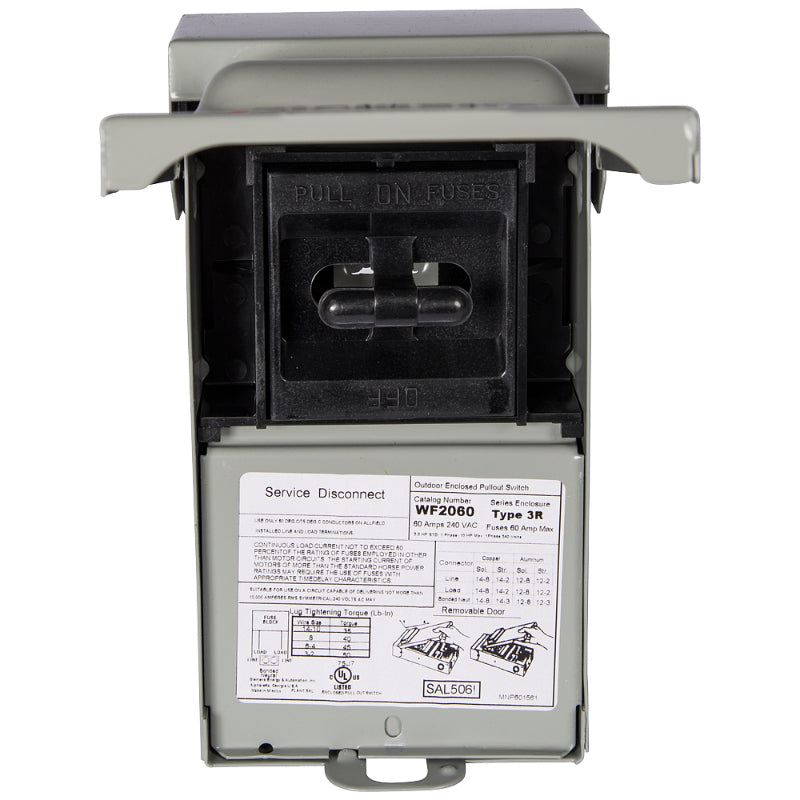

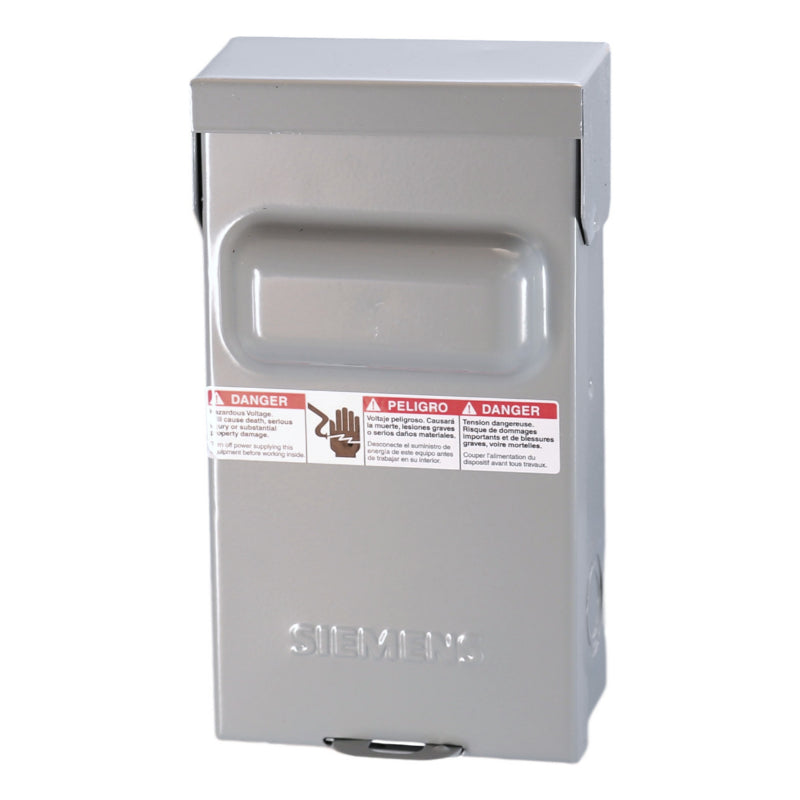

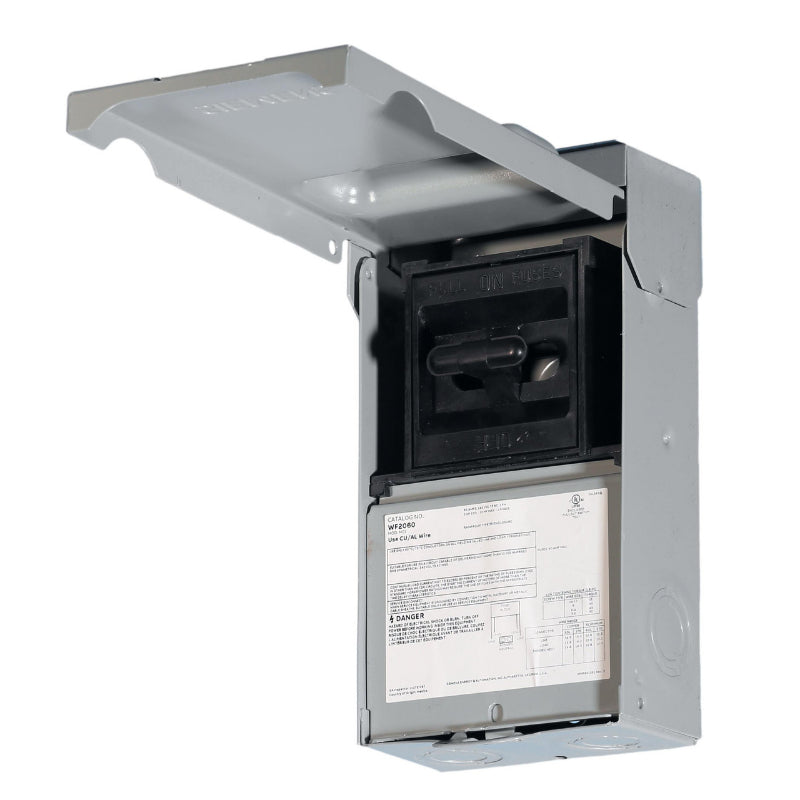

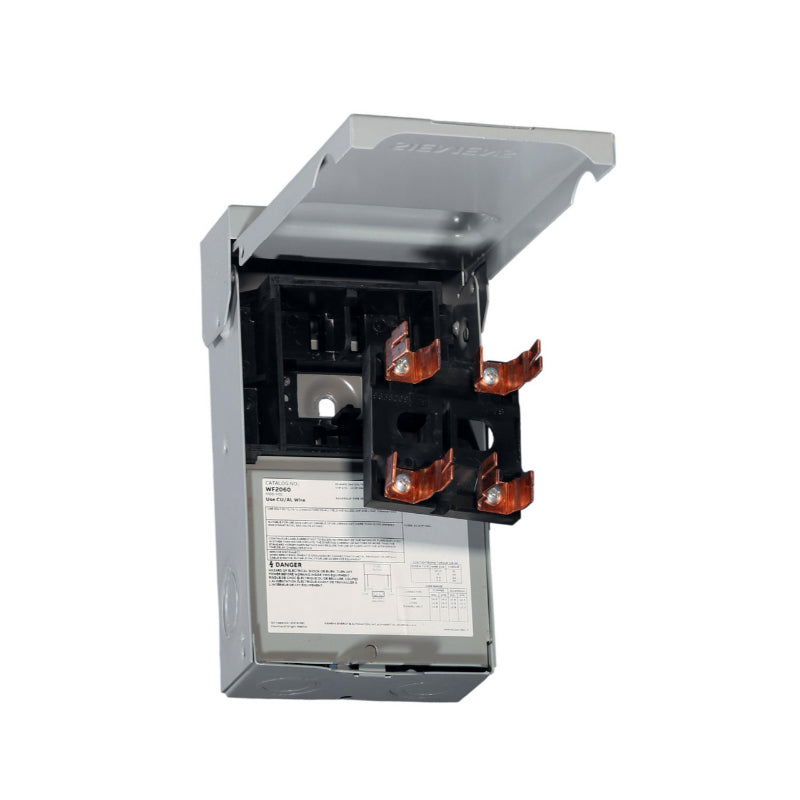

WF2060 Siemens Pull Out AC Disconnect Switch 240 VAC 60 A 2PDT Fusible Steel 2 Pole
WF2060 Siemens Pull Out AC Disconnect Switch 240 VAC 60 A 2PDT Fusible Steel 2 Pole
Regular price
$35.96
Sale price
$35.96
Regular price
Shipping calculated at checkout.
8 in stockReady to ship from our warehouses
Couldn't load pickup availability
Overview
Phase-out - the WF2060 pull out ac disconnect 60AMP fused 240 V 10HP is being phased out. Same day ship
- Compact size
- Visible blade, double-break switching action
- Quick-make, quick-break operating mechanism
- Highly visible ON/OFF indicators
- Padlock-off handle feature
- Door padlock provision
- Bondable neutral (where indicated)
- Lugs suitable for copper or aluminum wire
- 30A cartridge fuse switches rated 100,000 AC with class R fuses
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Pull Out AC Disconnect Switch |
| Voltage Rating | 240 V ac |
| Current Rating | 60 A |
| Switch Action | Make and Break |
| Protection Method | Fusible |
| Horsepower Rating | 10 hp |
| Interrupt Rating | 10 kA |
| Phase | Single |
| Switch Design | Pull-Out |
| Housing Material | Steel |
| Number of Poles | 2 |
| Number of Wires | 2 |
| Wire Size | 14 to 10 AWG;8 AWG;6 to 4 AWG;3 to 2 AWG |
| Fuse Class | Class R |
| Torque Rating | 35 in-lb;40 in-lb;45 in-lb;50 in-lb |
| Handle Color | Red |
| Handle Style | Padlock |
| Mounting Type | Surface |
| Mounting Position | Vertical |
| Terminal Type | Lug |
| Resistance Properties | Weatherproof |
| Depth | 3-7/16 in |
| Width | 5-5/32 in |
| Height | 9-1/8 in |
| NEMA Rating | NEMA 3R |
| Application | Outdoor;Residential |
| Certifications | UL Listed;UL E4776 |
| Weight | 3.88 lb |
| Package Quantity | 360 Pallet |
| Country of Origin | Mexico |
