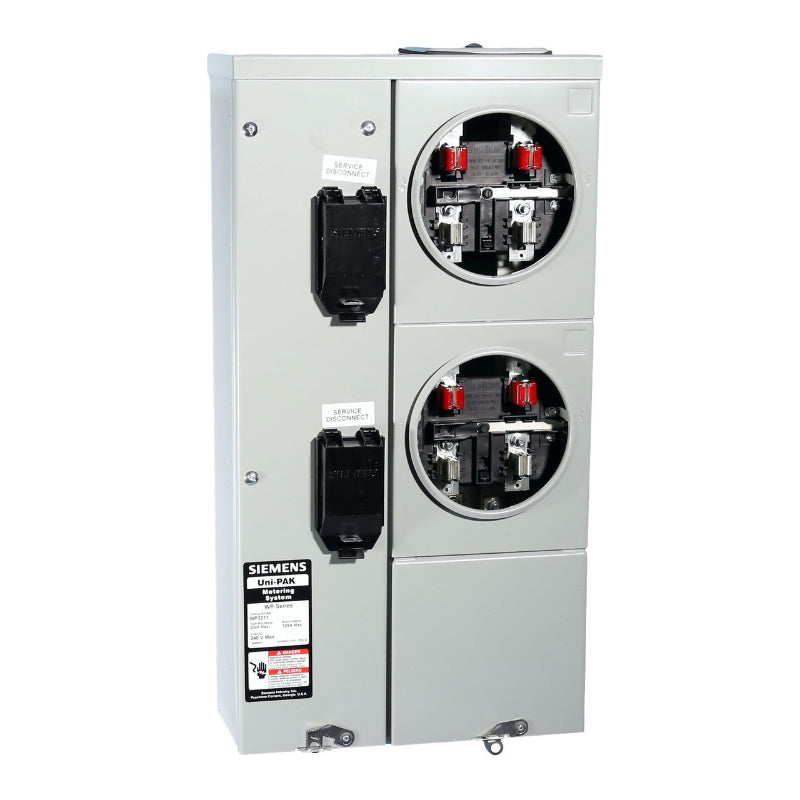

WP2211 Siemens WP Meter Main Panel 200 A 3 Wire Single Phase Steel 65000 A 120/240 V
WP2211 Siemens WP Meter Main Panel 200 A 3 Wire Single Phase Steel 65000 A 120/240 V
Couldn't load pickup availability
Overview
Siemens low voltage's multi-family metering line of PAK metering: standard 125A as part of the PAK metering: standard 125A group. Type: uni-pak features: no bypass appn: GARDEN - style std: ul-50,67,414 V. Rating: 120/240V A. Rating: 200A phase: 1PH size: 7.25 x 14.05 x 27.140 no. Of cutouts: 7 cutout size: 2x1/2", 1 x (1-1/2,1-1/4,1"), 2 x (,2,1-1/2,1-1/4,1"), 1 x (3,2-1/2,2,1-1/2,2"), 1x4" cable entry: top or bottom feed terminal: 3x2 studs. Insulated.appn:. Wall mounted. Enclosure: ring. Brand new.
- Individual split covers
- Ring style meter construction
- UL listed for 60 / 75°c conductors.
- For small apartment buildings, small professional and commercial buildings
- Completely self-contained meter centers
- Two to six 125A and 225A sockets breaker positions
- Outdoor surface mounted enclosures
- Compact, pre-bussed, easy to handle, hang and wire
- Barriered, sealable compartment for unmetered current-carrying parts
- Al/cu lay-in lugs, except two position 125A units
- Top or bottom feed
- Bottom and rear branch wiring exits (neutral and ground at bottom only)
- ANSI #61 light gray electrodeposited paint on G90 galvanized steel
- Field installable 5th jaw kit
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Meter Main Panel |
| Voltage Rating | 120/240 V |
| Current Rating | 200 A |
| Interrupt Rating | 65000 A |
| Phase | Single |
| Number of Wires | 3 |
| Number of Jaws | 4 |
| Enclosure Material | Steel |
| Color | Light Gray |
| Finish | Galvanized |
| Depth | 7.25 in |
| Width | 14.05 in |
| Height | 27.14 in |
| Wire Size | 300 kcmil to 6 AWG |
| Cover Type | Ring |
| Panel Type | Meter Panel |
| Cable Entry Type | Top;Bottom |
| Torque Rating | 275 in-lb (A,B,N1);50 in-lb (G);110 in-lb (N2/Equipment Ground) |
| Indoor/Outdoor Use | Outdoor |
| Mounting Type | Wall |
| Terminal Type | Line Lug |
| Application | Small Apartment Building;Small Professional;Commercial Building |
| Certifications | UL 50;UL 67;UL 414 |
| Weight | 31.063 lb |
| Package Quantity | 1 Piece |
| Country of Origin | USA |
