Siemens

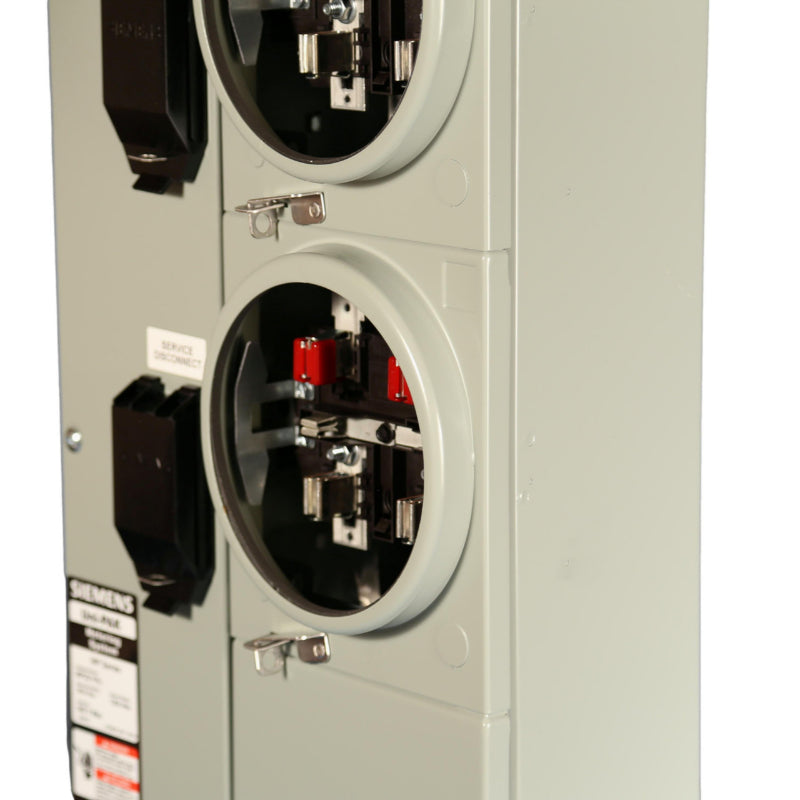

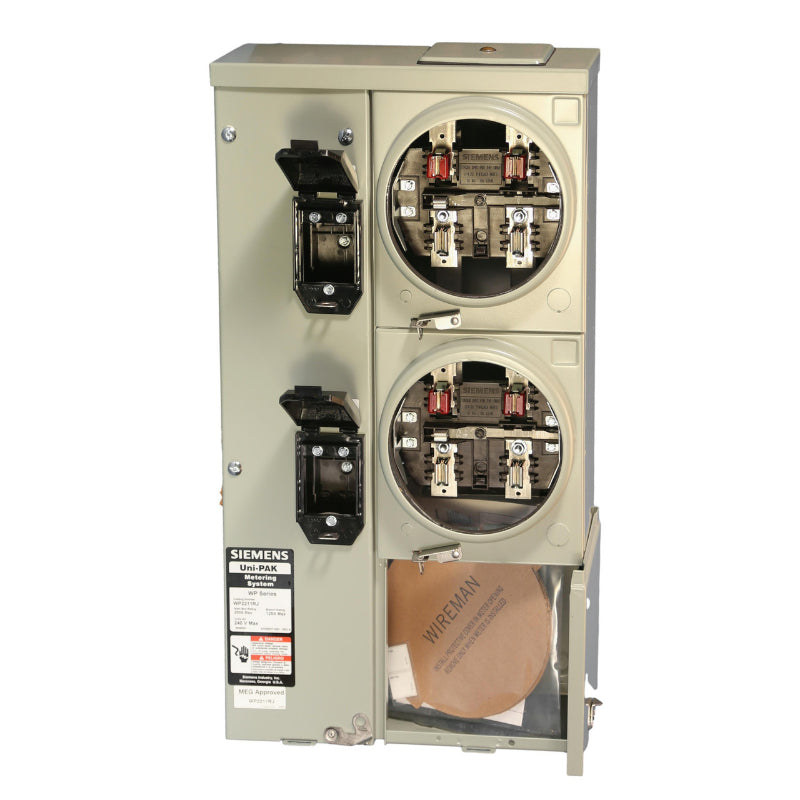

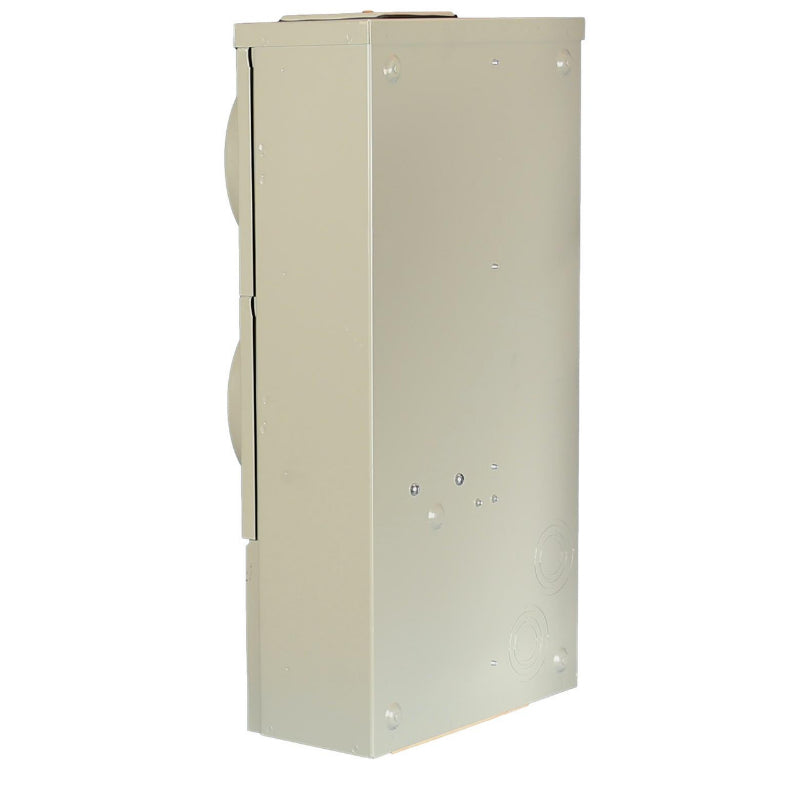

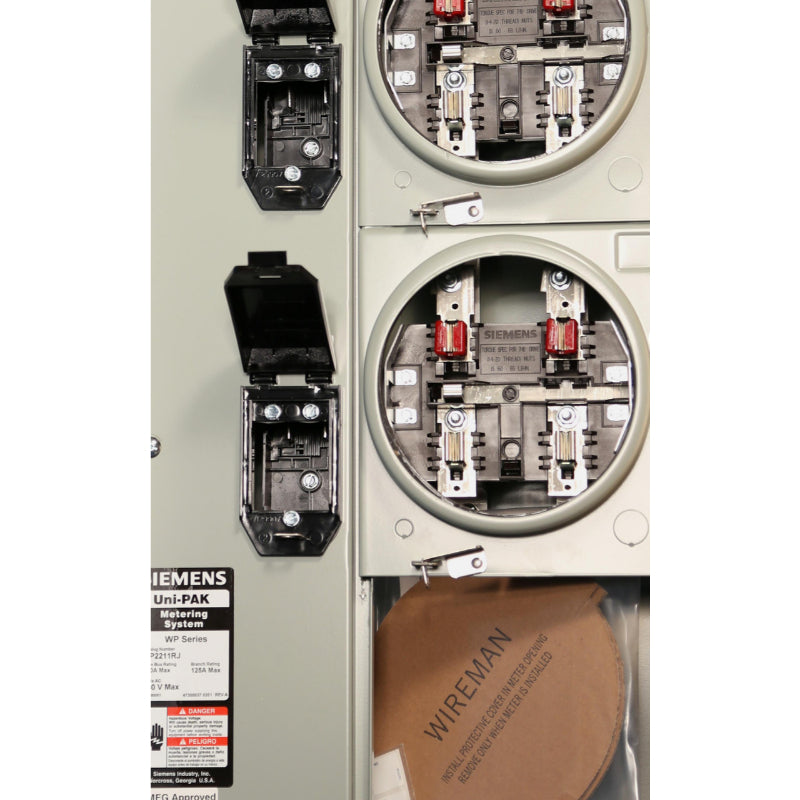

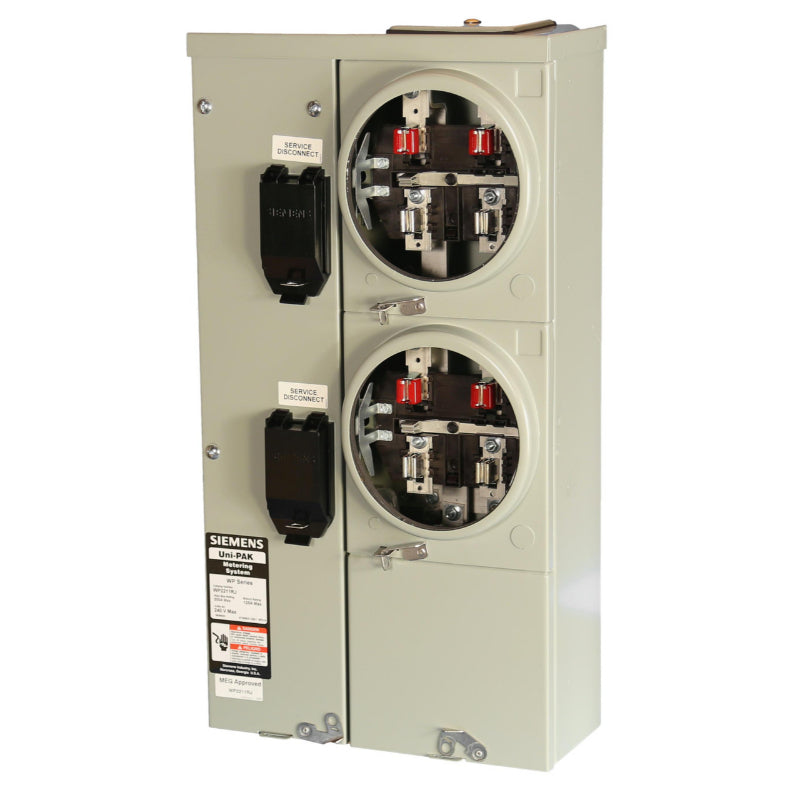

WP2211RJ Siemens WP Meter Main Panel 200 A 3 Wire Single Phase Steel 65000 A 120/240 V
WP2211RJ Siemens WP Meter Main Panel 200 A 3 Wire Single Phase Steel 65000 A 120/240 V
Call (800) 321-8998 for pricing and availability.
Couldn't load pickup availability
Overview
Siemens low voltage's multi-family metering line of PAK metering: standard 125A as part of the PAK metering: standard 125A group. Type: uni-pak features: no bypass appn: GARDEN - style std: ul-50,67,414 V. Rating: 120/240V A. Rating: 200A phase: 1PH size: 7.25 x 14.05 x 27.140 NO. Of cutouts: 7 cutout size: 2x1/2", 1 x (1-1/2,1-1/4,1"), 2 x (,2,1-1/2,1-1/4,1"), 1 x (3,2-1/2,2,1-1/2,2"), 1x4" cable entry: top or bottom feed terminal: 3x2 studs. Insulated.appn:. Wall mounted. Enclosure: ringless.

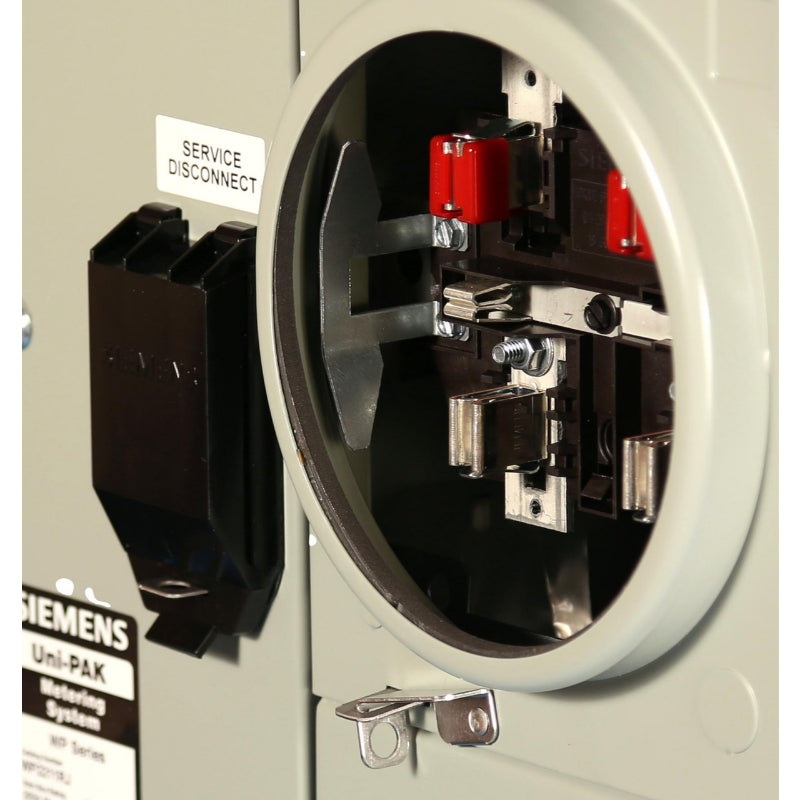

- Ringless meter construction
- Individual split covers with barrel lock compatibility
- UL listed for 60/75°c conductors
- For small apartment buildings, small professional and commercial buildings
- Completely self-contained meter centers
- Two to six 125A and 225A breaker positions
- Compact, pre-bussed, easy to handle, hang and wire
- Barriered, sealable compartment for unmetered current-carrying parts
- Ai/cu lay-in lugs, except two position 125A units
- Top or bottom feed
- Bottom and rear branch wiring exits (neutral and ground at bottom only)
- ANSI #61 light gray electrodeposited paint on G90 galvanized steel
- 5th jaw kit included with each unit
- Outdoor surface mounted enclosures
