Overview

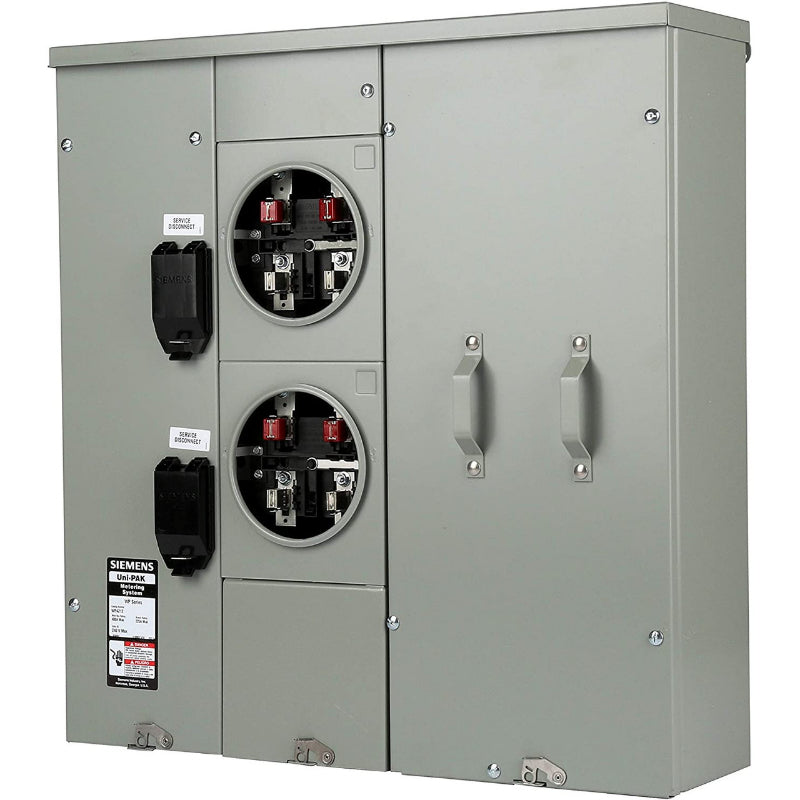

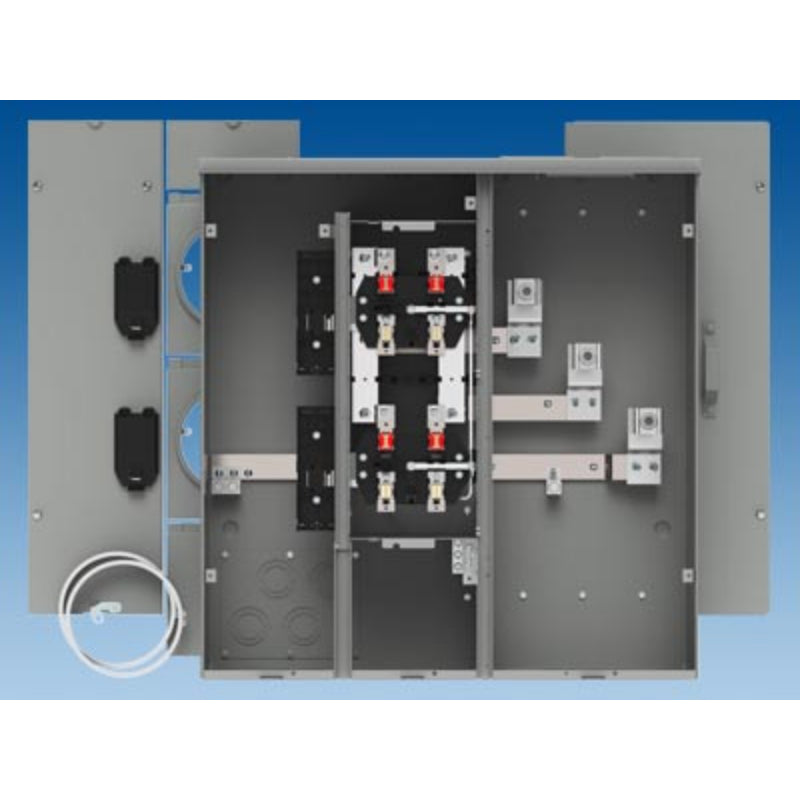

Siemens low voltage's multi-family metering line of PAK metering: standard 225A as part of the PAK metering: standard 225A group. Type: uni-pak features: no bypass appn: GARDEN - style std: ul-50,67,414 V. Rating: 120/240V A. Rating: 400A phase: 1PH size: 9.00 x 28.79 x 30.630 NO. Of cutouts: 11 cutout size: 1 x (1/2,3/4,1,1-1/4"), 6 x (2-1/2,2,1-1/2,1-1/4,1"), 2 x (4,3-1/2,3,2-1/2,2"), 2x4" cable entry: top or bottom feed terminal: 3x2 studs. Insulated.appn:. Wall mounted. Enclosure: ring. New, mains are not included, for main breakers use QS ex. QS2150, QS2225, use HD hubs ex. 2 1/2 inch #EC56855.

  • Individual split covers
  • Ring style meter construction
  • UL listed for 60 / 75°c conductors.
  • For small apartment buildings, small professional and commercial buildings
  • Completely self-contained meter centers
  • Two to six 125A and 225A sockets breaker positions
  • Outdoor surface mounted enclosures
  • Compact, pre-bussed, easy to handle, hang and wire
  • Barriered, sealable compartment for unmetered current-carrying parts
  • Al/cu lay-in lugs, except two position 125A units
  • Top or bottom feed
  • Bottom and rear branch wiring exits (neutral and ground at bottom only)
  • ANSI #61 light gray electrodeposited paint on G90 galvanized steel
  • Field installable 5th jaw kit

Specifications

BrandSiemens
Product TypeMeter Main Panel
Voltage Rating120/240 V
Current Rating400 A
Interrupt Rating100000 A
PhaseSingle
Number of Wires3
Number of Jaws4
NEMA RatingNEMA 3R
Enclosure MaterialSteel
ColorLight Gray
FinishGalvanized
Depth9 in
Width28.79 in
Height30.63 in
Wire Size1/0 AWG to 750 kcmil (Aluminum/Copper);(2) 1/0 AWG to 250 (Aluminum);(2) 1/0 AWG to 3/0 AWG (Copper)
Cover TypeRing
Panel TypeMeter Panel
Cable Entry TypeTop;Bottom
Torque Rating500 in-lb (A,B,N1);275 in-lb (N2, G);110 in-lb (Equipment Ground)
Indoor/Outdoor UseOutdoor
Mounting TypeWall
Terminal TypeLine Lug
IncludesECMF5 5th Jaw;ECMF5i Insulated 5th Jaw;ECPP Meter Socket Cover Plate (Ring Type);ECCP3 Meter Socket Cover Plate (Ringless);ECMFH Horn Bypass (Ringless Only)
ApplicationSmall Apartment Building;Small Professional;Commercial Building
CertificationsUL 50;UL 67;UL 414
Weight75.156 lb
Package Quantity1 Piece
Country of OriginUSA
