Product Description

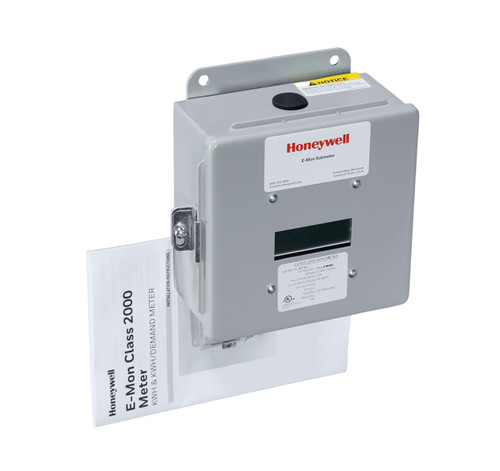

E10-3208100JKIT
- 120/208/240 Volt AC 100 Amp Rated
- Use in Residential
- Single Phase
- 3 Wire
- Direct-read 2-line alpha-numeric LCD display without multiplier displays cumulative kWh & "real-time" kW load
- Demand option displays kW/Demand and kW Peak date and time (15 minute interval standard, 30 minute or 60 minute intervals available.)
- Available in MMU (Multiple Meter Unit) enclosures containing up to 24 meters in one compact enclosure.
- Patented 0-2 volt output split-core current sensors promote enhanced safety and accurate remote mounting of current sensors up to 2000 feet from meter without power interruption. (Optional solid-core sensors available for 100 & 200 Amp meters.)
- Onboard installation diagnostics & verification system.
- Parallel up to three (3) sets of current sensors for cumulative reading.
- Fixed-value pulse output.
- Industrial grade JIC steel enclosure (standard) with padlocking hasp & mounting flanges for indoor installation. Knockouts 1 1/16” (3/4” cond.) bottom, 7/8” (1/2” cond.) top.
- Revenue Grade Accuracy. Certified by independent test lab to ANSI C12.20 national accuracy standards. (+/- 0.2% from 1% to 100% of rated load.)
- California CTEP approved for use with solid-core current sensors. Listed by the California Energy Commission.
- New York City approved, Con Edison approved for RSP program.
