Product Description
ED63A010
ETI motor circuit protectors purpose is to provide only magnetic over current protection. Primary function is to prevent nuisance tripping while electric motors ramp up to full power. Thermal overload protection is substituted in the motor starter heater overloads. ED63A breakers look identical to the normal ED63B breakers so pay special attention.
- Electronic Type
- 3 Inch W X 4 Inch D X 6.34 Inch H Size
- 600 Max. AC Voltage Rating
- 250 Max. DC Voltage Rating
- UL 489, CSA C22.2 Approval
- 600 Vac At 50/60 Hz, 250 Vdc Voltage Rating
- 10 Ampere Current Rating
- 3 Pole(S)
- 55 To 180 Ampere Trip Setting
- 2.3 To 9.1 Ampere Motor Fla
- Maximum AC Voltage Rating - Uom V
- Maximum DC Voltage Rating - Uom V
- ED6 Model
- New
Warranty Information
-Product Videos
Custom Field

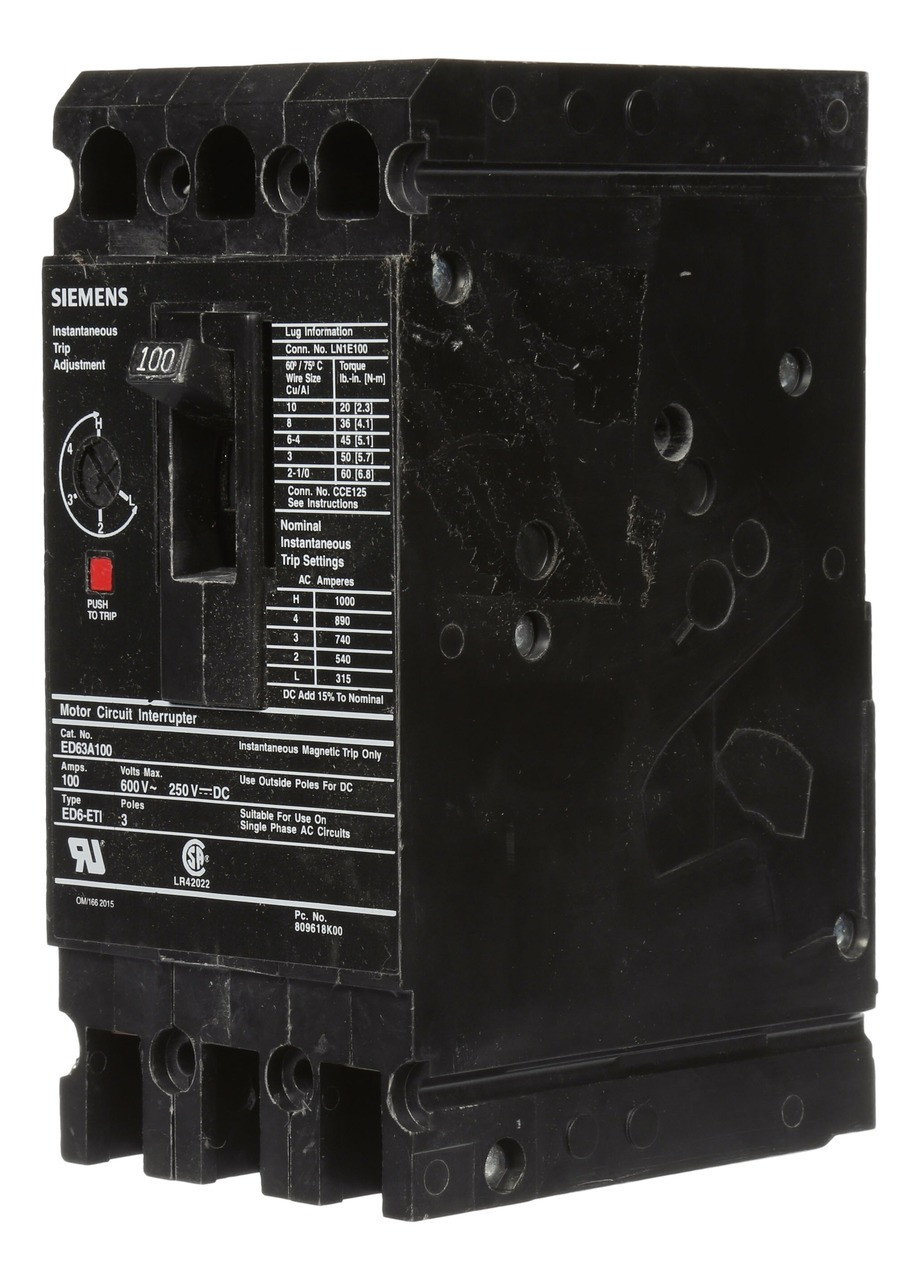

Picture Represents all Amperages
