Product Description

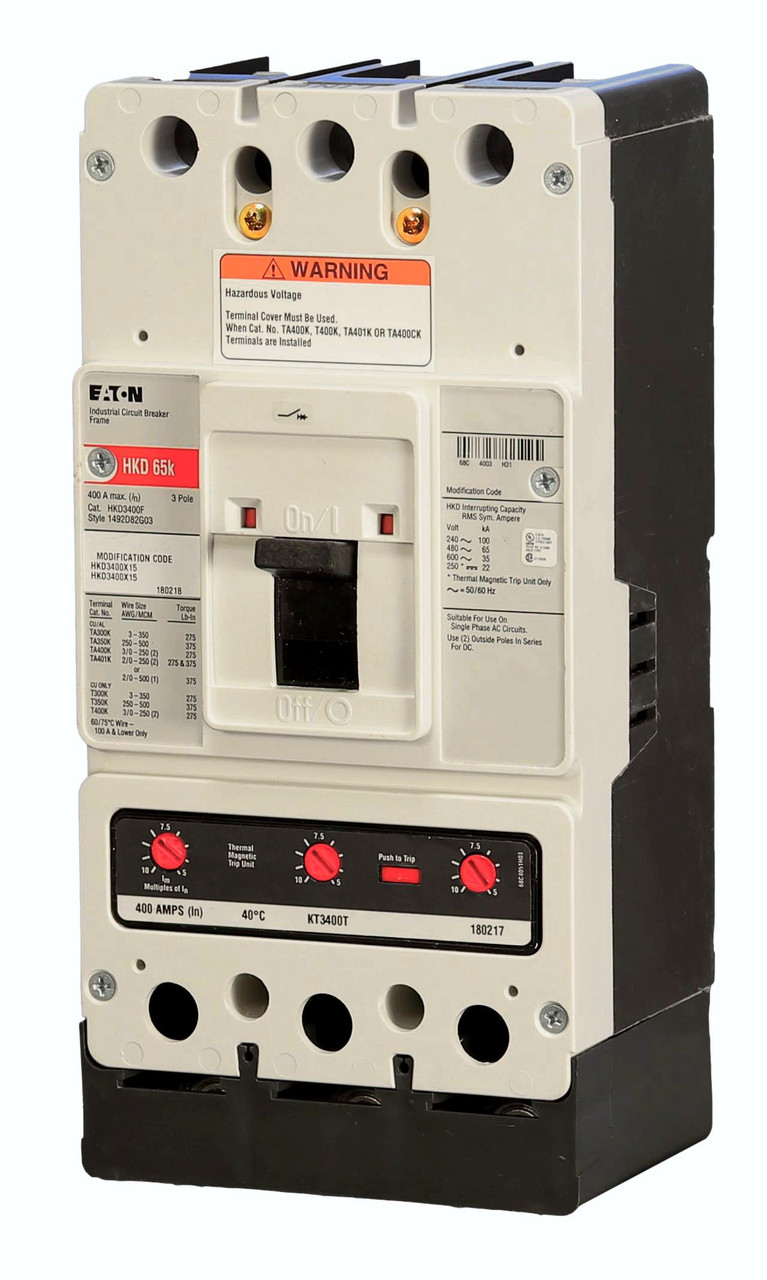

HKD3400X15
- Eaton Cutler-Hammer OEM
- Series C MCCB
- Panel mount
- 400 Ampere
- 3 Pole
- 65k rated @ 480VAC
- 600 VAC
- Thermal Magnetic Trip
- Interchangeable Trip
- Approval UL, CSA. CE
- Mfg Status: Available
- Industrial
- UPC: 782114885307
- Suffix X15 means packaged with 400A Trip and Load lugs
- New in box
REMARKS: X15 is a factory configuration with line and load lugs and trip unit, assembled.
Complete circuit breaker with adjustable magnetic trip, Molded Case, Thermal Magnetic, K Frame, 240/480/600 Vac At 50/60 Hz, 250 Vdc (Ul 489/Csa/Nema), 240/380/415 Vac At 50/60 Hz, 250 Vdc (Iec), 400 Ampere At 40 Deg C, 3 Pole, Interrupting Rating 100 Kiloampere At 240 Vac, 65 Kiloampere At 480 Vac, 35 Kiloampere At 600 Vac, 22 Kiloampere At 250 Vdc (Ul 489/Csa/Nema), 100 Kiloampere At 240 Vac, 65 Kiloampere At 380/415 Vac, 22 Kiloampere At 250 Vdc (Iec), Terminal Load Terminal, Size 5.5 Inch W X 4.1 Inch D X 10.13 Inch H, HKD Model. Cutler Hammer #782114-88530.
