Product Description

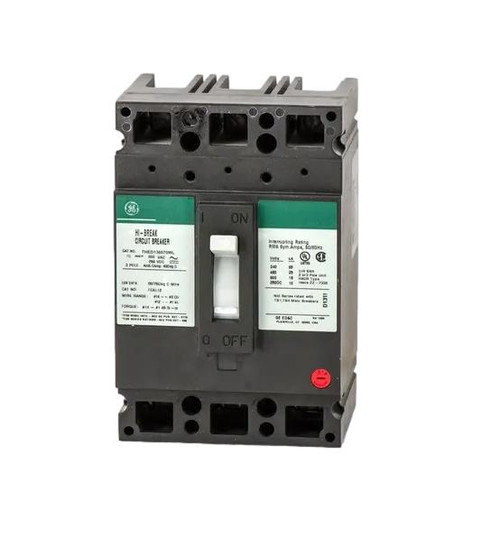

THED136070WL
70A Circuit Breakers by General Electric. In the designation H of THED, the H means higher interrupting capacity, 65k at 240V, 25k at 480V and 18k at 600V, Type: molded case, fixed thermal magnetic, thed frame, 240/480/600 VAC, 500 VDC, 100 ampere, 3 pole, interrupting rating 65 kiloampere at 240 VAC, 25 kiloampere at 480 VAC, 18 kiloampere at 600 VAC, 10 kiloampere at 500 VDC, terminal aluminum/copper line lug, load lug, size 4 1/8 inch w x 3 3/8 inch d x 6 5/16 inch h. E-frame Circuit Breaker by GE. This THED breaker frame is the second line of defense or the second level of industrial duty breakers for GE to meet the power demand for breakers ranging from 15 Amps to 150 Amps and keeping cost down while providing adequate protection.
New or Re-certified
