Product Description

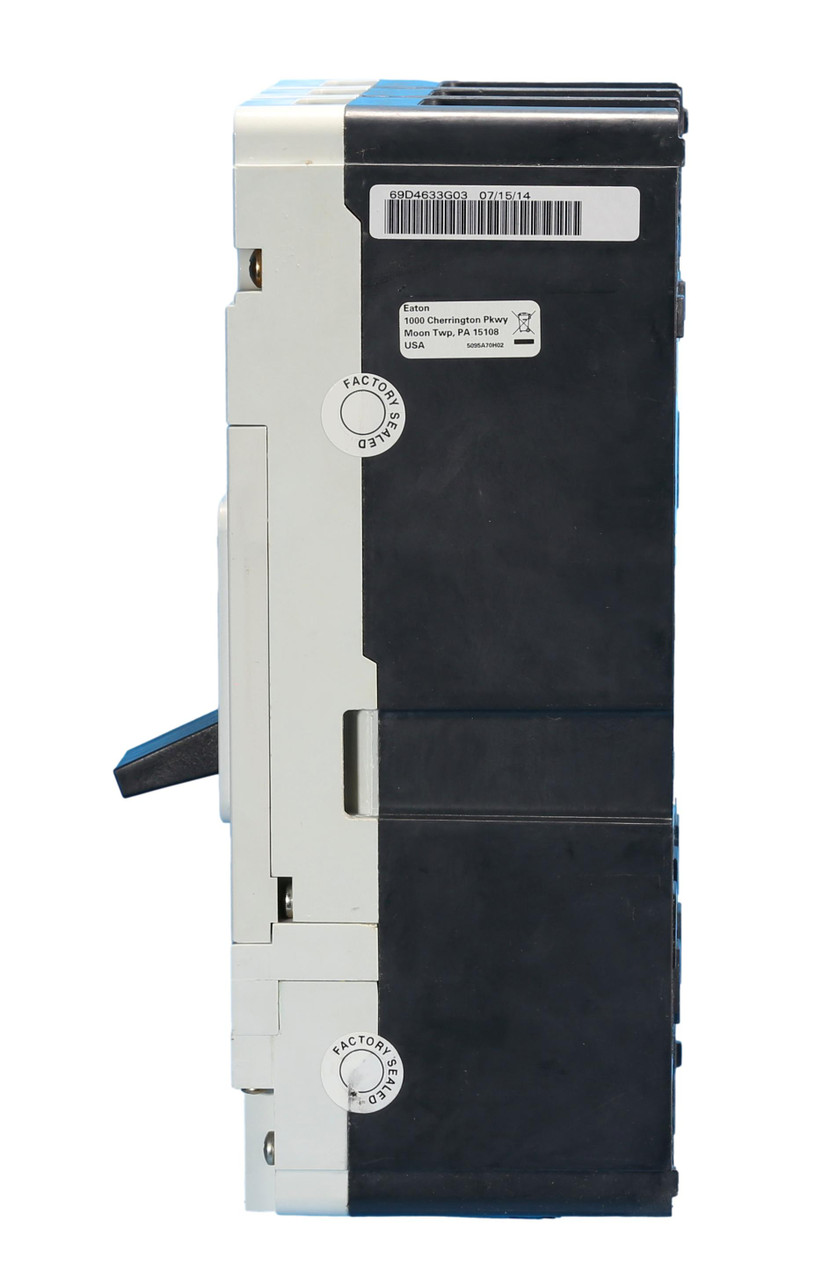

LGC3500FAG
Specifications:
- Eaton
- Also Cutler-Hammer
- OEM
- Series G MCCB
- Panel mount
- 500 Ampere Trip Installed
- 3 Pole
- 100k rated @ 480VAC
- 600 VAC
- Thermal Magnetic Trip
- Approval UL, CSA. CE
- Mfg Status: Available
- Industrial
- Brand New
3 Pole 500A, L630C Frame. Electronic Series G, Molded Case, Fixed Thermal Adjustable Magnetic, LG Frame, 240/480/600 Vac At 50/60 Hz, 125/250 Vdc (Ul/Csa/Nema), 220 To 240/380 To 415/600 To 690 Vac At 50/60 Hz, 125/250 Vdc (Iec), 500 Ampere, 3 Pole, Interrupting Rating 200 Kiloampere At 240 Vac, 100 Kiloampere At 480 Vac, 50 Kiloampere At 600 Vac, 42 Kiloampere At 125/250 Vdc (Ul/Csa/Nema), 200 Kiloampere At 220 To 240 Vac, 100 Kiloampere At 380 To 415 Vac, 30 Kiloampere At 660 To 690 Vac, 42 Kiloampere At 125/250 Vdc (Iec), Terminal Aluminum/Copper Wire Line And Load Terminal, Size 5.48 Inch W X 4.09 Inch D X 10.13 Inch H, Approval Ul 489, Csa C22.2, Ce, Cutler-Hammer Brand, Lgc Model. Comes with a standard Fixed Thermal Adjustable Magnetic Trip Unit and load lugs. In stock limited supply. The G at the end of catalog number refers to lugs and not GFI.
