Product Description
FDPWT3212R
- Unused, never connected
- Fusible FDP Twin Switch
- Twin Unit 30A-60A
- 3 Pole/3Phase
- 240VAC
- 200 kAIC at 240 Vac

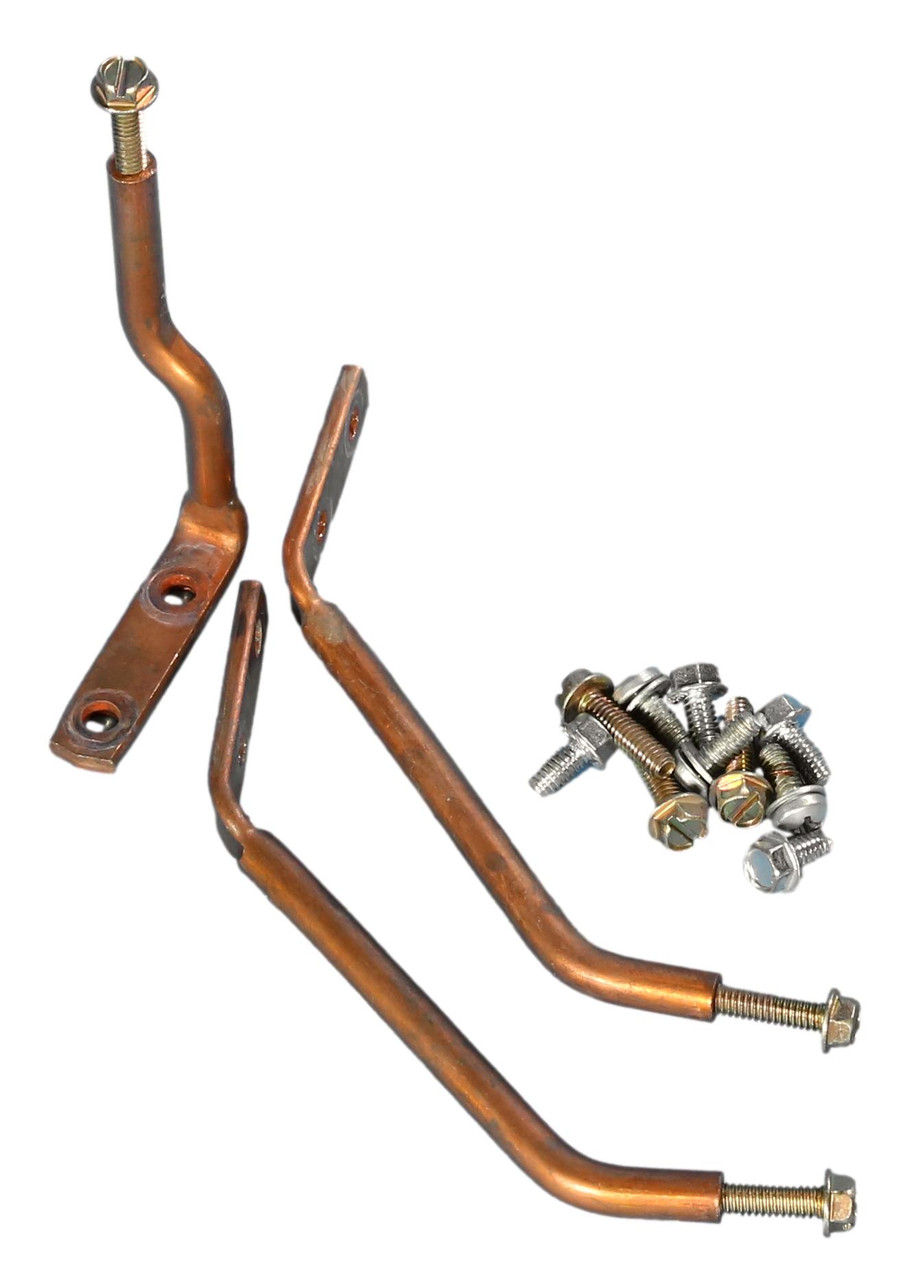

- Includes Copper Bus Conductors CKP3TBC-4X
- Horizontal Twin Unit Position
- Class R fuses
- Wire #14-1/0 AWG
- Unit 1: 7.5 hp at 240 Vac, 5 hp at 250 Vdc, Unit 2: 15 hp at 240 Vac, 10 hp at 250 Vdc
- Unit Dimensions 7d x 5.5h x 23.5w O.A.
- New, Unused Unit
REMARKS: See close up pics of Unused Tapped Lugs, never connected.
Warranty Information
`Product Videos
Custom Field

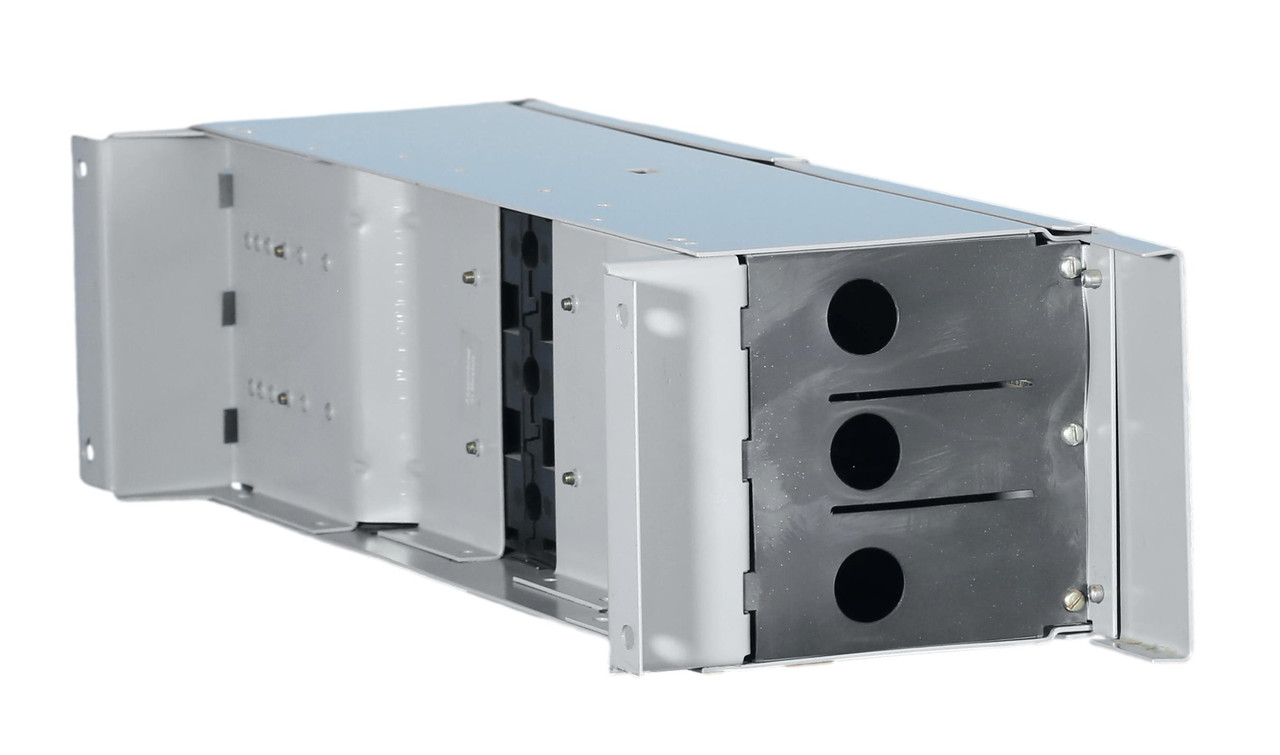

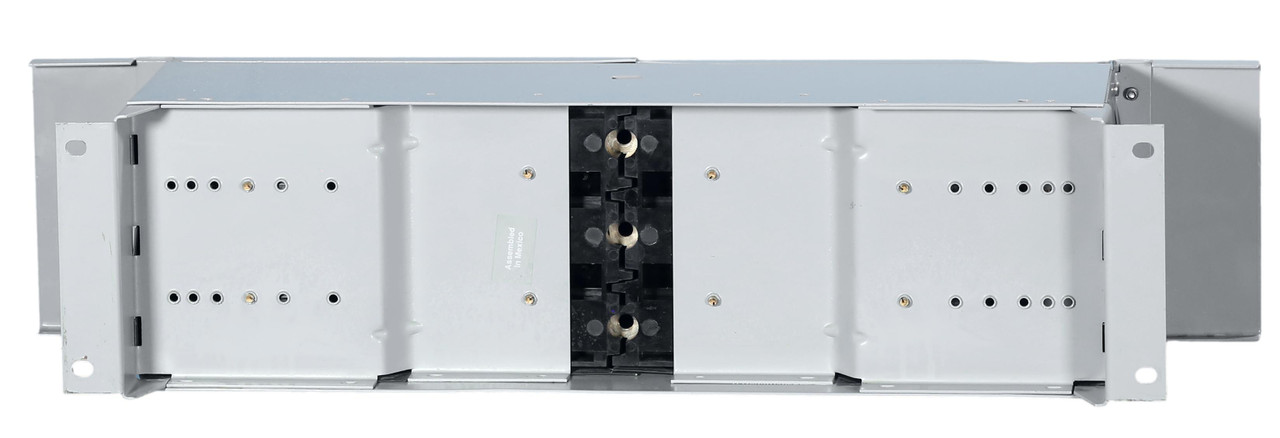

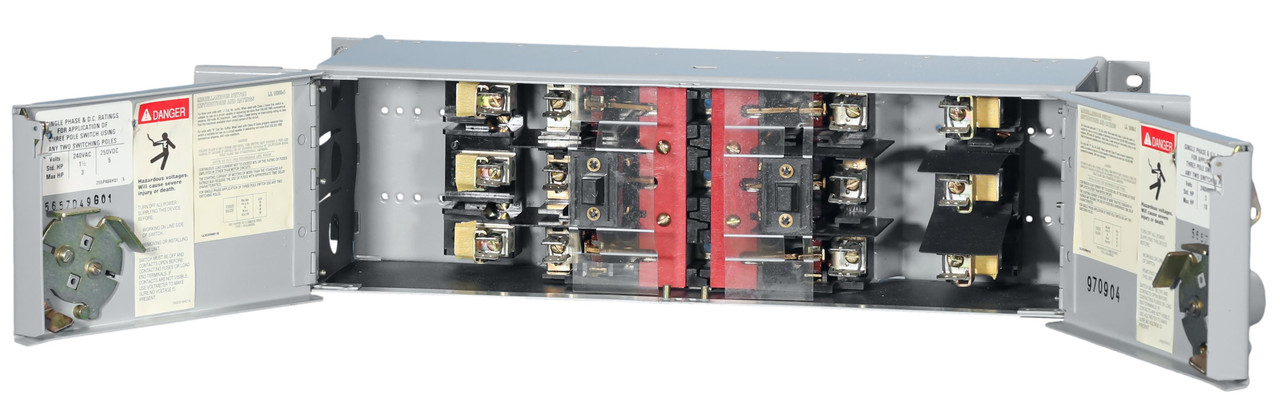

Pictures Actual Item Shown
