Product Description
HJXD63B225H

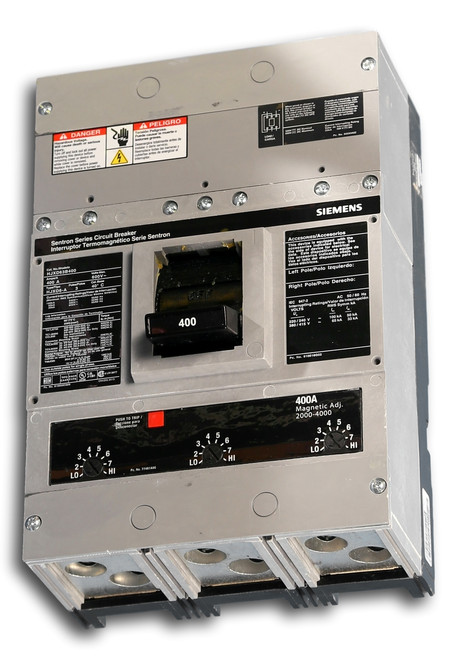

Siemens Sentron thermal magnetic type frame, 3 Pole circuit breaker, 240/480/600V Molded Case, JD Frame, 240/480/600 VAC At 50/60 HZ, 500 VDC (Ul), 220/240/380/415/500 VAC At 50/60 HZ,40 Deg C, 3 Pole unit Interrupting Rating 100 Kiloampere At 240 VAC, 65 Kiloampere At 480 VAC, 35 Kiloampere At 600 VAC/500 VDC, 100 Kiloampere At 220/240 VAC, 65 Kiloampere At 380/415 VAC, 42 Kiloampere At 500 VAC, Terminal Line Lug, Load Lug, Size 7.5 Inch W X 5.44 Inch D X 11 Inch H, Approval Ul 489, Refer to Siemens Catalog Speedfax, Sentron Brand, Hjxd6-A Model, Applicable Standard Nema Ab-1, Black Label. Sold as New and Reconditioned, specify. Breaker mounting hardware kit (connector kit or strap kit) required for panel board mounting. Shunt trips are also available, please call 800-321-8998 HJXD63B225H.
New or Re-certified
