- 3 Pole
- DIN Rail Mounting
- 65k @ 480VAC
- Frame Type: EG
- G-Frame Circuit Breaker
- Dimensions: 3 Inch Wide x 4.5 Inch High x 3.3 Inch Deep
- Weight: 4.0 lbs.
- Wire Size: Lug Kit 3TA1EG10 (#14 AWG to 1/0 AWG Copper/Aluminum)
- Interrupting Rating at 240 Volts AC: 100,000
- Interrupting Rating at 480 Volts AC: 65,000
- Thermal Magnetic
- Compact Size

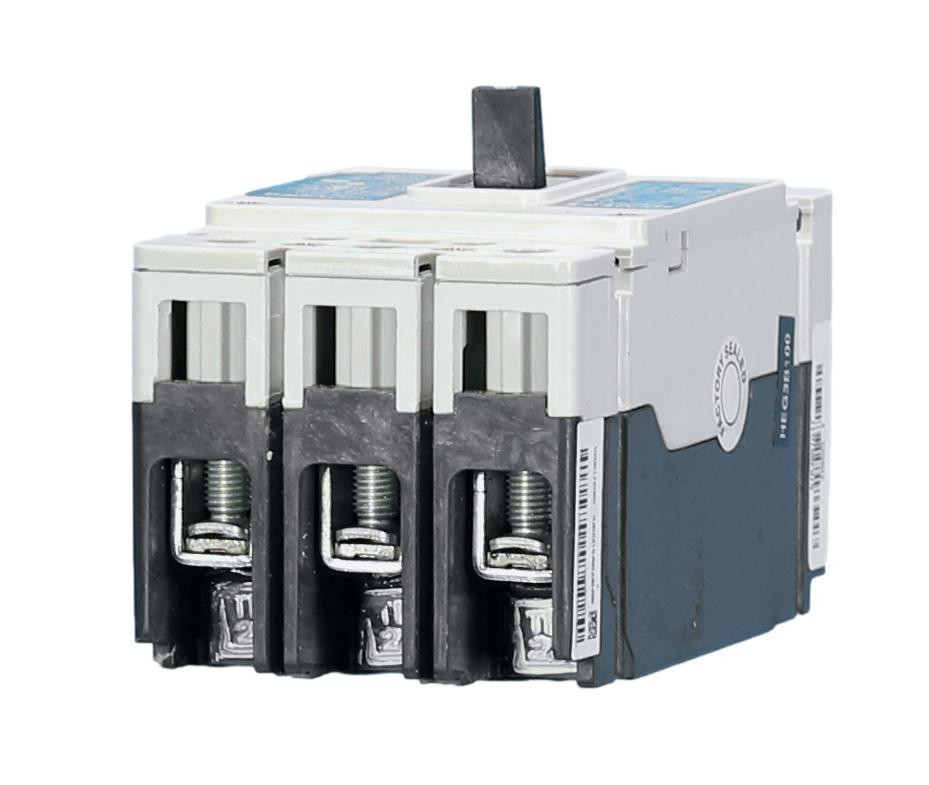

(Pic is example for all Amps)
Warranty InformationBreaker Outlet inspects all of our products prior fulfilling your order. New HEG3B045L's come with a 1 year warranty. All Re-Certified HEG3B045L's come with a 2 year warranty.

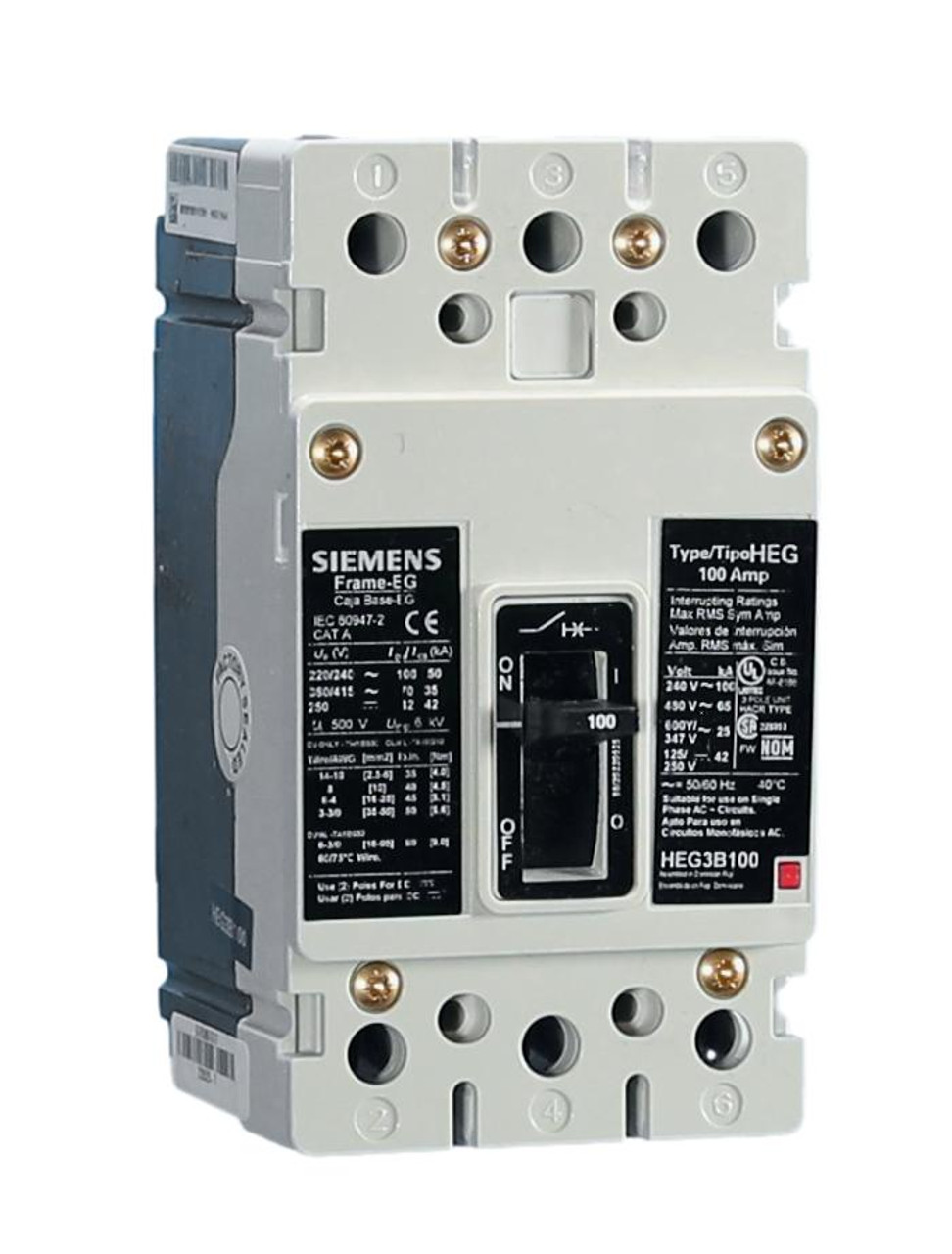

Picture Represents all Amperages
