Product Description

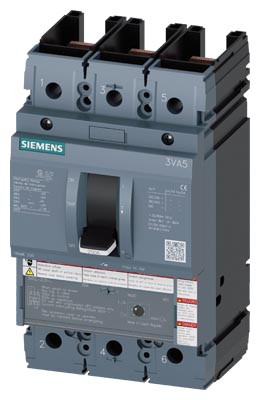

3VA5217-6EC31-0AA0
- 3VA5 Circuit Breaker
- Amperage 175
- Poles 3
- AIC rating: 65kA@480V
- Trip Unit TM230
- Frame Size 250 Amp
- Thermal-Magnetic Type
- Sentron Brand
Low Voltage, Thermal Magnetic Type; 4.13 Inch Width X 3.27 Inch Depth X 7.28 Inch Height Size; 690 Volt Max. AC Voltage Rating; 750 Volt Max. DC Voltage Rating; UL (Canada And US), UL 489, CE, CCC, EAC, EMV/EMC, RCM, VDE Approval; 240/480 Star/277/480/600 Star/347/600/690 Volt AC 50/60 Hertz, 750 Volt DC Voltage Rating; 100 Kiloamp At 240 Volt AC, 65 Kiloamp At 480 Star/277/480 Volt AC, 25 Kiloamp At 600 Star/347/600 Volt AC, 85 Kiloamp At 250/500/600 Volt DC Interrupting Rating; 175 AMP Current Rating; 3 Pole(S); Sentron Brand; RoHS/WEEE Compliant; Frame Size 250 AMP; Trip Unit Protection TM230; Regional Specifics Standard; Enclosure Rating IP40; Temperature Rating -25 To 70 DEG C; Applicable Standard IEC 60947-2; 3VA5 Model
